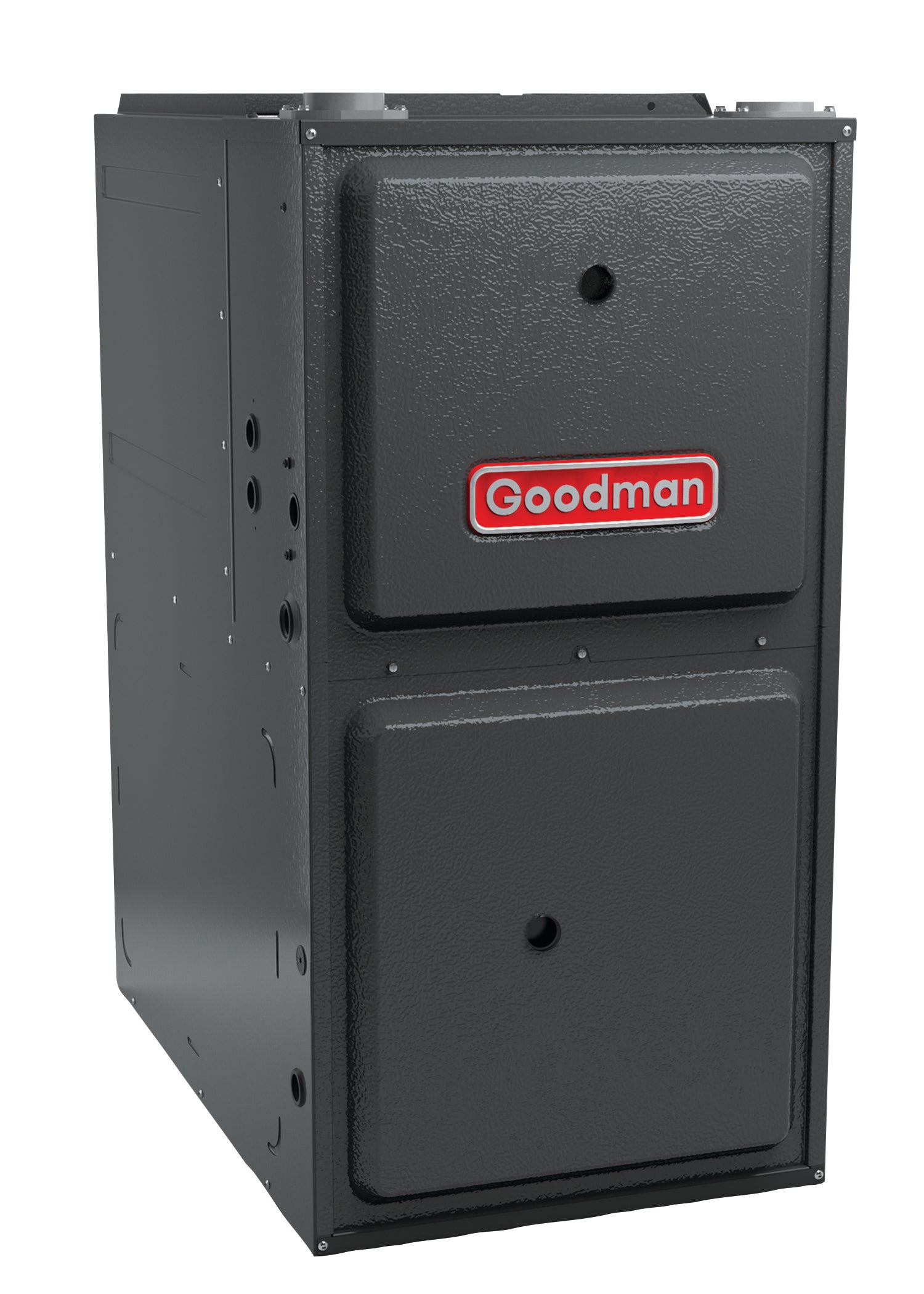

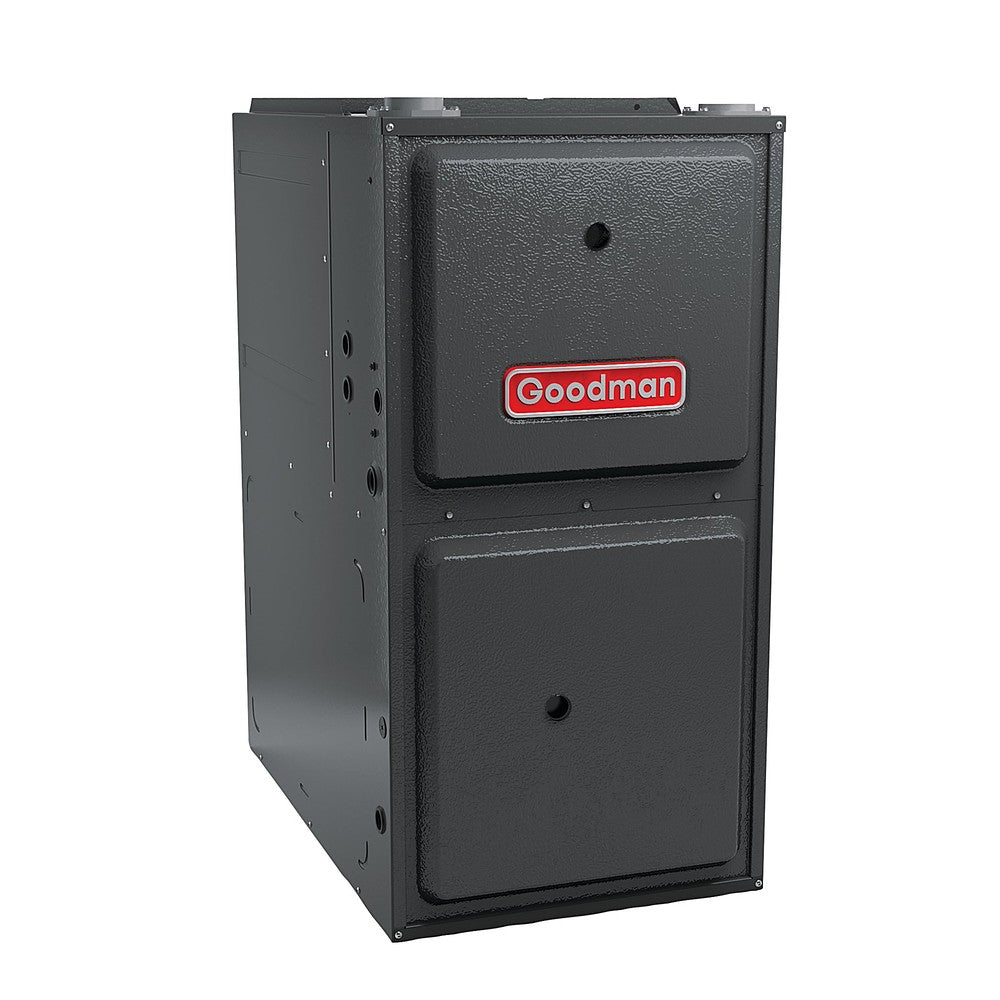

Goodman 60,000 Btu 92% Afue Upflow Single Stage Upflow Gas Furnace
Goodman 60,000 Btu 92% Afue Upflow Single Stage Upflow Gas Furnace
Model: GMES920603BN
The Goodman GMES92 Single Stage Gas Furnace will keep you as warm as you wish. The best gas furnace is the kind you don’t have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all winter long as needed. The Goodman GMES92 is loaded with features designed to provide outstanding performance for years to come. We use advanced techniques and materials so you know the cozy, even heat you feel in every corner of your home is an energy-efficient warming trend that’s designed to stay for many years.
Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy-efficient indoor comfort solutions using advanced technology. But the company ultimately adheres to some old-fashioned values too. Goodman believes in the integrity of the American worker. That’s why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.
**IMPORTANT** As per California Air Quality Resource Board's SCAQMD or San Joaquin AQMD agency, this purchase may be subject to a mitigation fee of up to $450, depending on your city of residence. You can check if your zip code or city falls within the SCAQMD or San Joaquin AQMD here: https://www.arb.ca.gov/app/dislookup/dislookup.php. If you do fall within this area, our team will reach out to you with information on how to pay the fee after you purchase. For more information, please visit: http://www.aqmd.gov/nav/about
Standard Features:
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride igniter
- Multi-speed ECM blower motor
- Quiet single-speed induced draft blower
- Self-diagnostic control board
- All models comply with California 40 ng/J Low NOx emissions standard
- For installation in California’s South Coast Air Quality Management District (SCAQMD) only: This furnace does not meet the SCAQMD Rule 1111 14 ng/J NOx emission limit, and thus is subject to a mitigation fee of up to $450. This furnace is not eligible for the SCAQMD Clean Air Furnace Rebate Program: www.CleanAirFurnaceRebate.com.
Cabinet Features:
- Designed for multi-position installation — GMES92: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Easy-to-install top venting with optional side venting — GMES92/upflow models only
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) ≤ 2%
- Heavy-gauge steel cabinet with durable finish
- Foil-faced insulated heat exchanger cabinet
- Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
| Model Number (s) | GMES920603BN |
| Brand | Goodman |
| Type | Gas Heat |
| Electrical Phase(s) | 1-Phase |
| Refrigerant Type | R-410A |
| Parts Warranty (Years) | 10 |
| UPC # | 7.03159E+11 |
| Furnace Configuration | Up-Flow |
| Afue | 92% |
| Amp(s) | 15 |
| Voltage | 115V |
| Heat Exchanger Warranty (Years) | Lifetime |
| Blower | Multi-Speed |
| Maximum CFM | 1,200 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 114 |
| Height (Inches) | 34 1/2 |
| Width (Inches) | 17 1/2 |
| Depth (Inches) | 28 3/4 |
| Category | Gas Furnaces |
| Input Btu (Furnaces/Package) | 60,000 |
| Output Btu (Furnaces/Package) | 55,260 |
| Heat Exchanger Warranty (Years) | Lifetime |
| Blower | Multi-Speed |
| Maximum CFM | 1,200 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 114 |
| Height (Inches) | 34 1/2 |
| Width (Inches) | 17 1/2 |
| Depth (Inches) | 28 3/4 |
| Category | Gas Furnaces |
| Input Btu (Furnaces/Package) | 60,000 |
| Output Btu (Furnaces/Package) | 55,260 |
