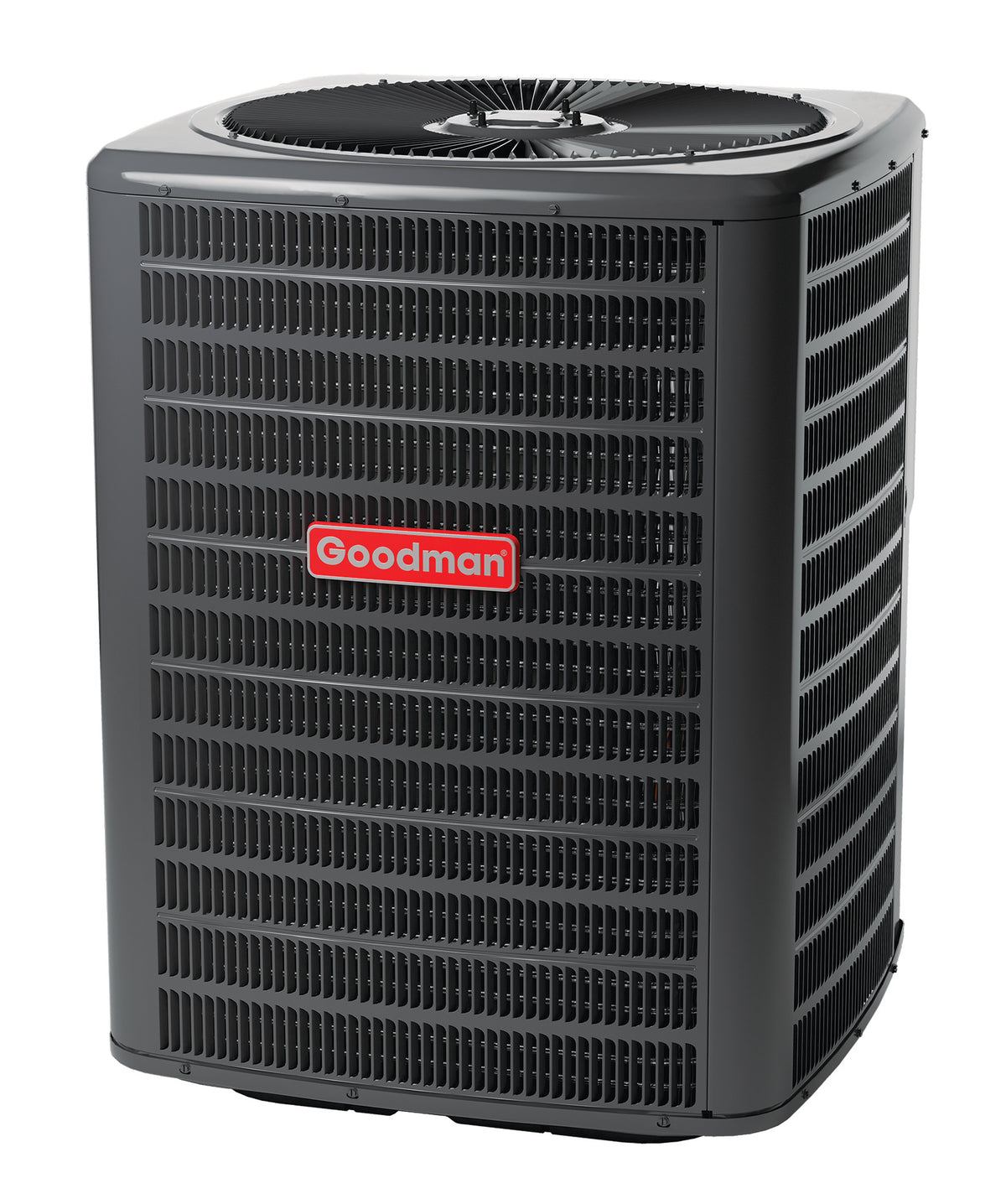

The Goodman GSX16 Air Conditioner is the latest high efficiency 16 SEER Air Conditioner from Goodman and provides a mix of performance, efficiency and value unmatched in the industry. The GSX16 uses the environmentally friendly refrigerant R-410A and features the unique Goodman sound control top design for quiet operation. The coil is made of rifled refrigeration-grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.

Standard Features:

• R-410A environmentally friendly refrigerant
• Factory-installed liquid line filter dryer
• 850-RPM condenser fan motor
• High-efficiency scroll compressor
• Copper tube/aluminum fin coil
• Service valves with sweat connections and gauge ports
• Contactor with lug connection
• Ground lug connection
• ARI Certified; ETL Listed

Cabinet Features:

• Unique Goodman sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• When properly anchored, meets the 2001 Florida Building Code unit integrity requirements for hurricane-type winds
• 10 Year Limited Parts Warranty

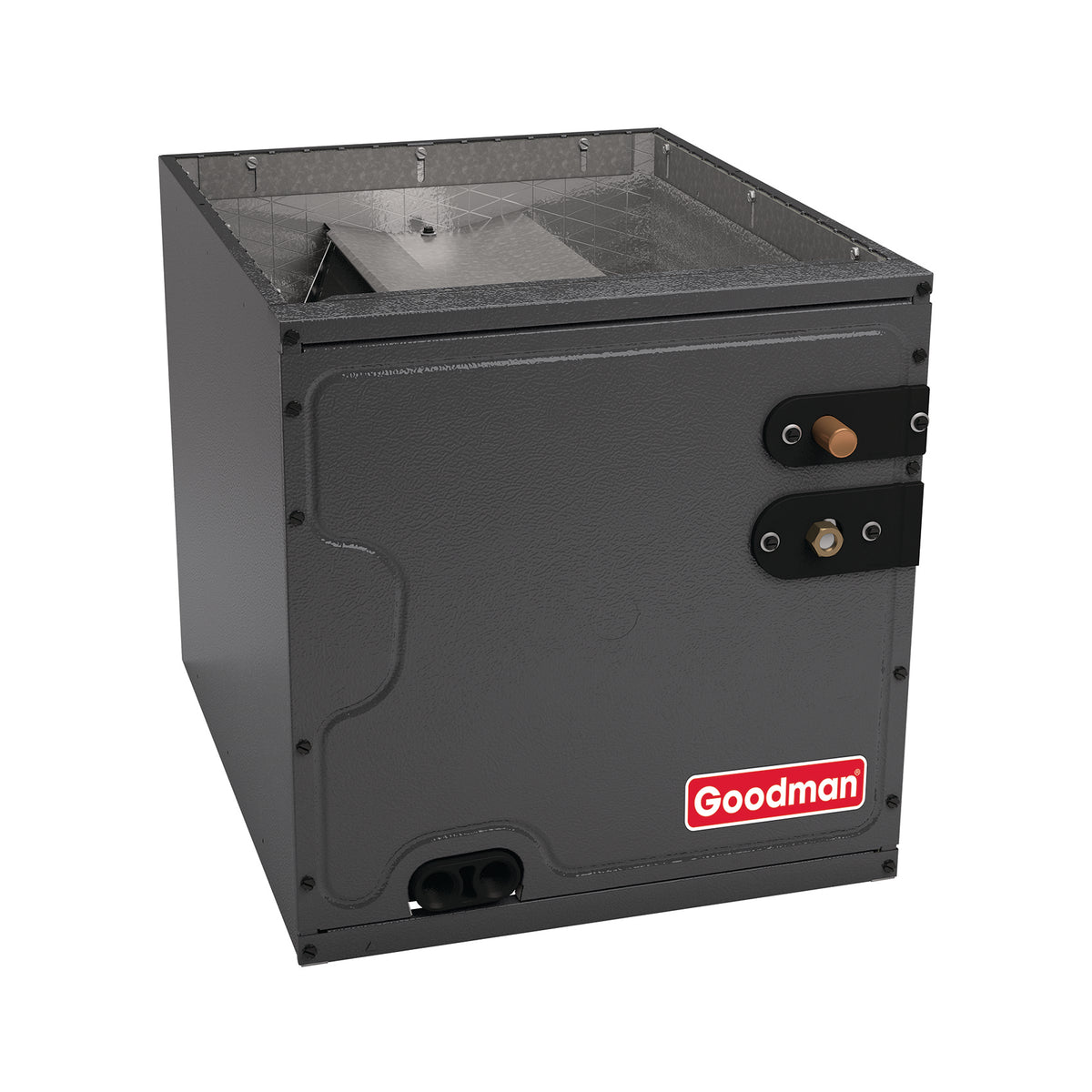

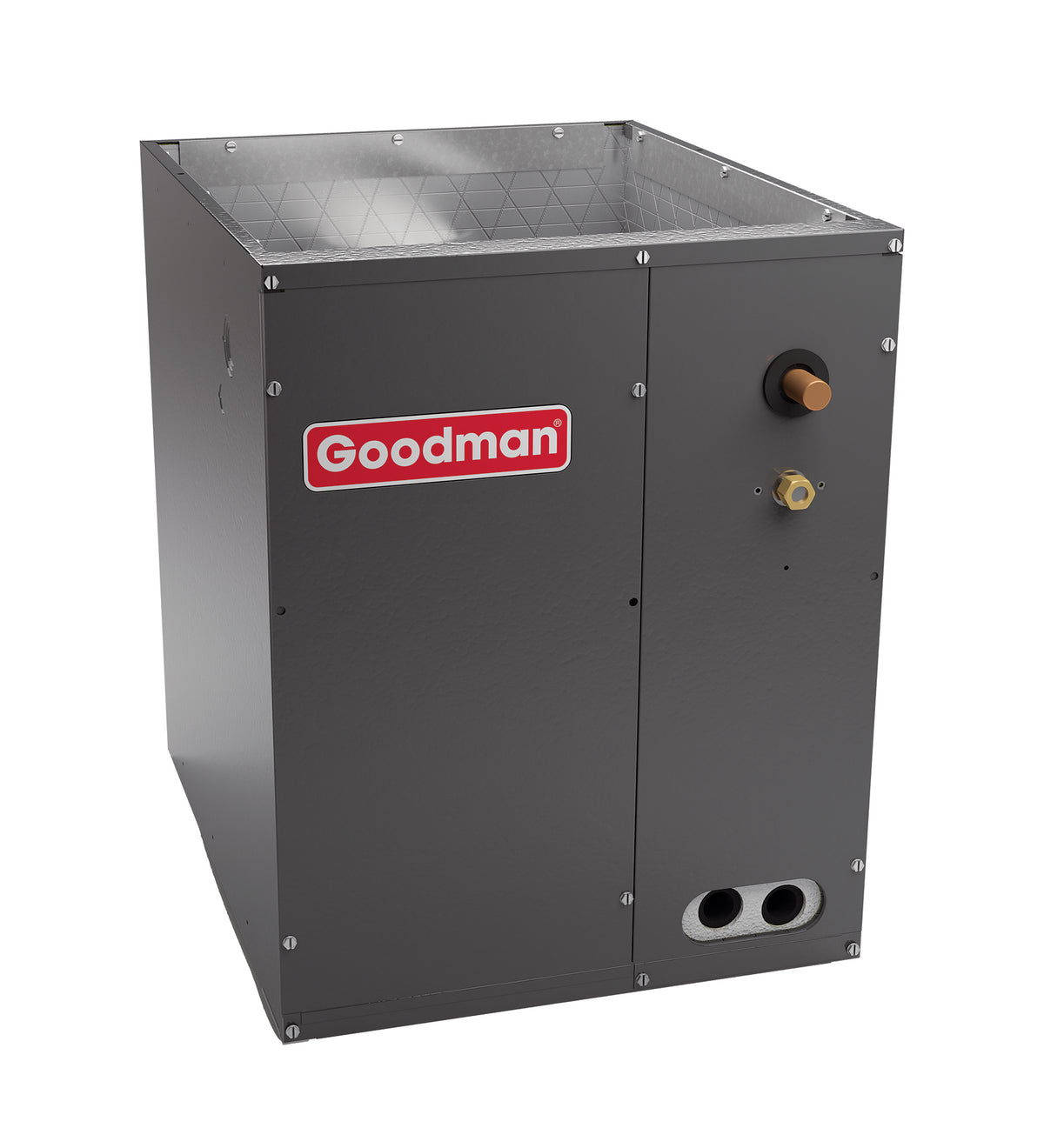

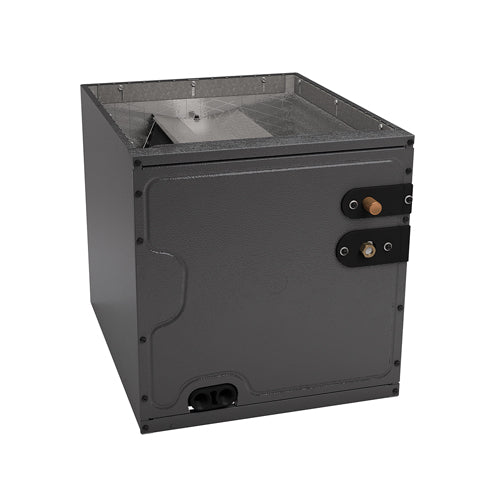

The Goodman CAPF, CAUF, CHPF, CAPT and CSCF Evaporator Coils are designed for use with Goodman Gas Furnaces, Split System Air Conditioners and Heat Pumps, as well as modular, two-piece blowers. Each cased coil has a quality, galvanized-steel cabinet.

Standard Features:

• Suitable for use with R-410A and R-22 refrigerants
• Rust-proof, thermoplastic drain pans feature a low water-retention design
• Check flowrater expansion device for heat pump or cooling-only applications
• Rifled aluminum tubing and louvered aluminum fin coils on CAPF, CAUF, and CSCF coils
• Rifled aluminum tubing and louvered aluminum fin coils on the CHPF coil

Cabinet Features:

• Foil-face insulation
• Galvanized leather-grain finish
• Architectural Gray paint finish on CAPF and CHPF cased coils
• Split-seam front for easy access
