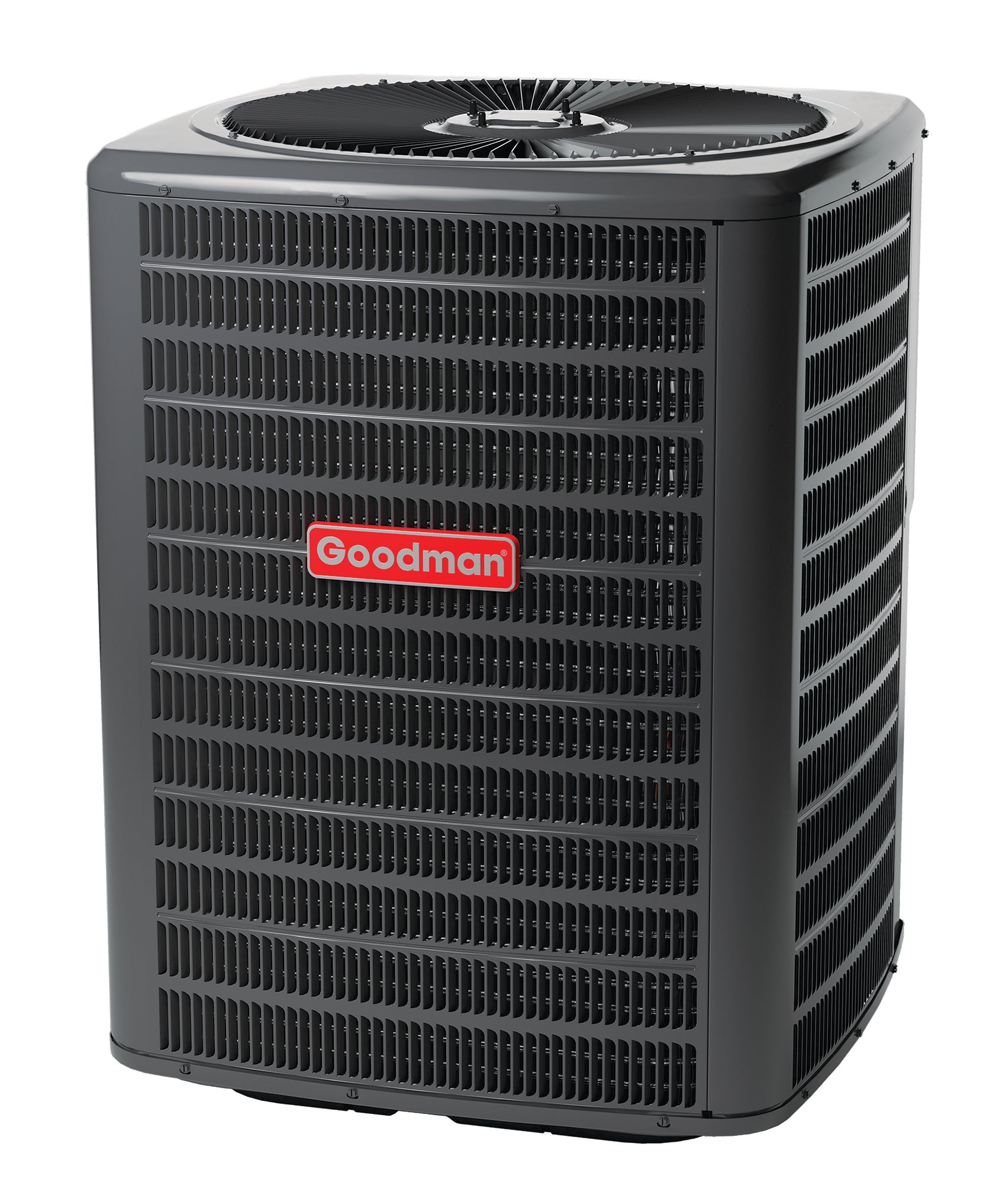

The Goodman GSX16 Air Conditioner is the latest high efficiency 16 SEER Air Conditioner from Goodman and provides a mix of performance, efficiency and value unmatched in the industry. The GSX16 uses the environmentally friendly refrigerant R-410A and features the unique Goodman sound control top design for quiet operation. The coil is made of rifled refrigeration-grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.

Standard Features:

• R-410A environmentally friendly refrigerant
• Factory-installed liquid line filter dryer
• 850-RPM condenser fan motor
• High-efficiency scroll compressor
• Copper tube/aluminum fin coil
• Service valves with sweat connections and gauge ports
• Contactor with lug connection
• Ground lug connection
• ARI Certified; ETL Listed

Cabinet Features:

• Unique Goodman sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• When properly anchored, meets the 2001 Florida Building Code unit integrity requirements for hurricane-type winds
• 10 Year Limited Parts Warranty

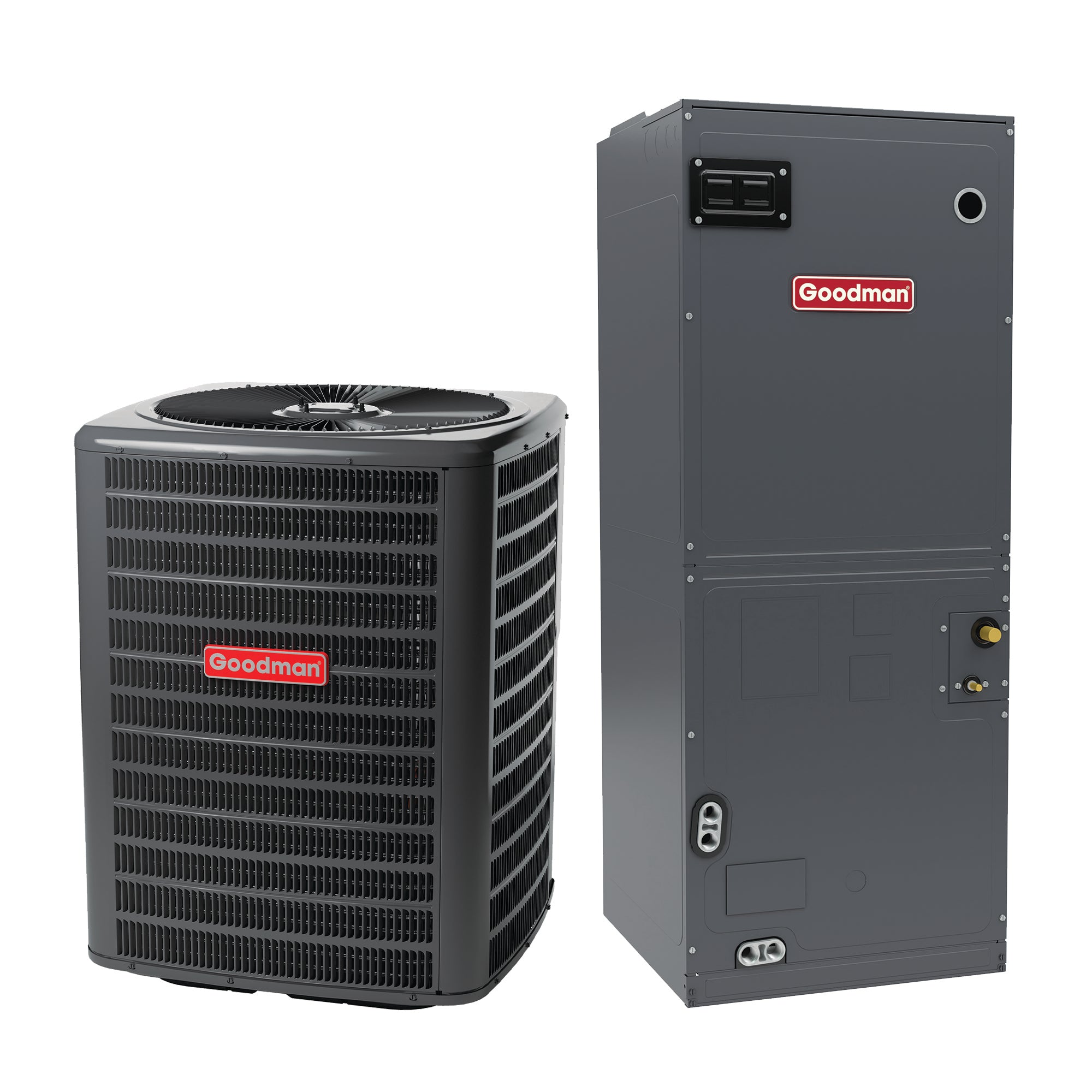

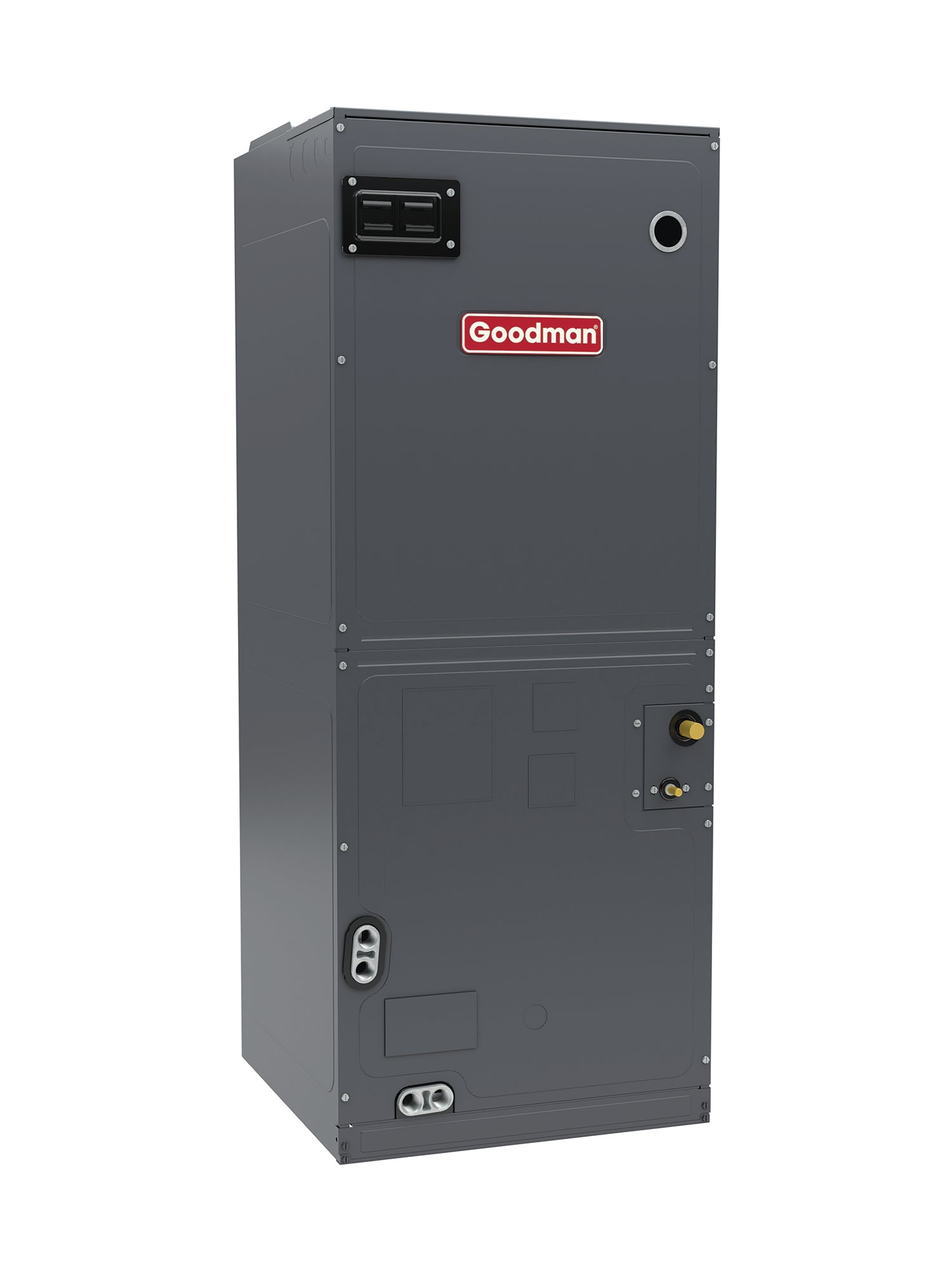

The Goodman AVPTC Air Handler includes a variable-speed ECM motor to help eliminate the cold blast of air upon heating start-up. The constant low speed fan run option helps to maintain temperature throughout the household. State of the art variable speed technology.

**Attention: Model Number Update & Free Upgrade**

Goodman has updated all air handler model numbers from "even" to "odd" as of 1/1/2018. Please be aware that in purchasing this unit, you agree to receive the corresponding UPDATED model, NOT the model listed herein. Updated model numbers are as follows:

• AVPTC24 --> AVPTC25
• AVPTC30 --> AVPTC32
• AVPTC36 --> AVPTC37
• AVPTC48 --> AVPTC49
• AVPTC60 --> AVPTC61

Standard Features:

• Compatible with the ComfortNet Communicating System family of products
• Maximum four low-voltage wires required for operation in communicating mode
• Auto configuration of the airflow and tonnage in communicating mode
• In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the systems CFM for each individual mode of operation
• R-410A refrigerant-compatible
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• All-aluminum evaporator coil
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• Provides adjustable low CFM for efficient fan-only operation
• CFM indicator with front-panel sight glass
• Improved humidity control and comfort
• Compatible with variable-capacity heat pumps and cooling applications
• Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
• AHRI Certified; ETL Listed

Cabinet Features:

• Fully insulated, painted steel cabinet with attractive Architectural Gray finish
• Compact, versatile upflow, downflow,or horizontal multi-position installations
• Low-voltage cabinet connections; control circuit is arranged to permit staging
• Power supply on top; low-voltage entry on top or side
• Cabinet air leakage less than 2.0% at 1.0 inch H2Owhen tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2Owhen tested in accordance with ASHRAE standard 193
• Foil-faced insulation is glued in place and covers the entire blower case to reduce operating sound and cabinet condensation
