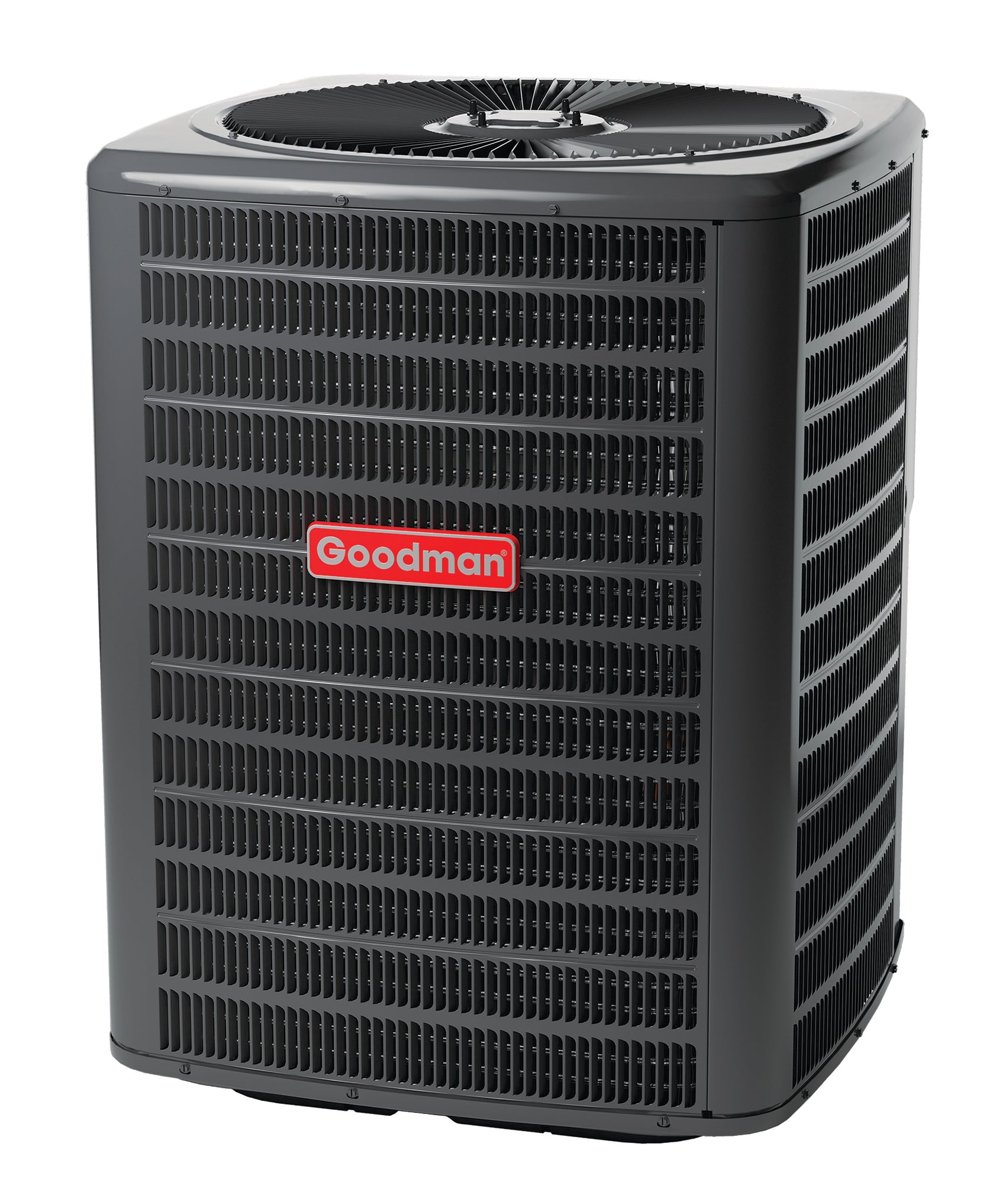

The Goodman GSX16 Air Conditioner is the latest high efficiency 16 SEER Air Conditioner from Goodman and provides a mix of performance, efficiency and value unmatched in the industry. The GSX16 uses the environmentally friendly refrigerant R-410A and features the unique Goodman sound control top design for quiet operation. The coil is made of rifled refrigeration-grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.

Standard Features:

• R-410A environmentally friendly refrigerant
• Factory-installed liquid line filter dryer
• 850-RPM condenser fan motor
• High-efficiency scroll compressor
• Copper tube/aluminum fin coil
• Service valves with sweat connections and gauge ports
• Contactor with lug connection
• Ground lug connection
• ARI Certified; ETL Listed

Cabinet Features:

• Unique Goodman sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• When properly anchored, meets the 2001 Florida Building Code unit integrity requirements for hurricane-type winds
• 10 Year Limited Parts Warranty

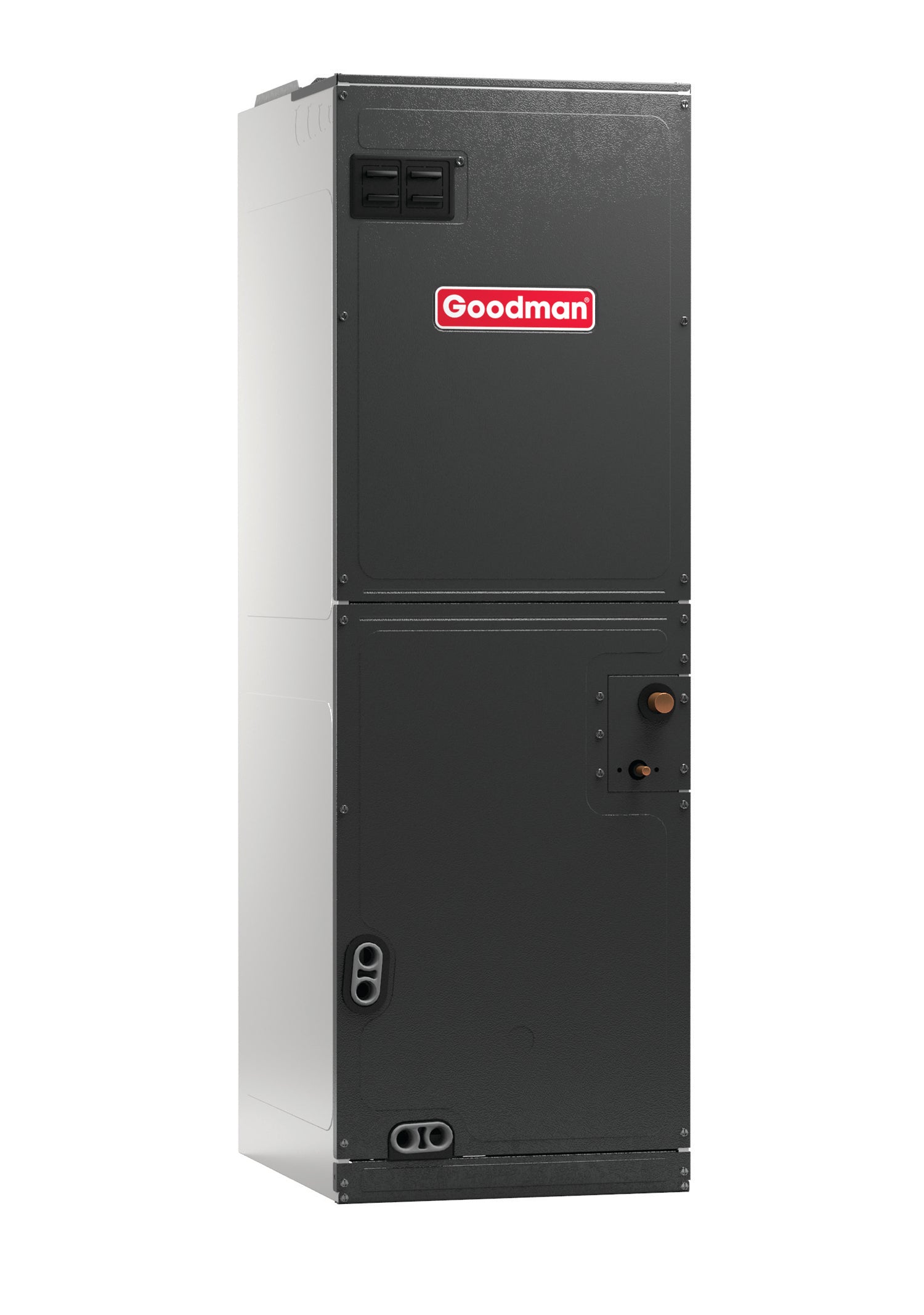

The Goodman ASPT Air Handler have replaced the old ASPF series with a brand new improved model. The SmartFrame Sub-Structure is at the heart of this design - a new skeleton which adds lateral stability to the chassis, new mounting locations for internal components and additional insulation retention. It also eliminates the need for external side and back screws. It also features an ECM motor achieving high efficiency in a multi-speed air handler. These new models are 4 way multi-position, capable of upflow downflow or horizontal airflow direction. Unit ships ready for upflow or horizontal left - downflow or horiz. right is a simple conversion process. The ASPT model has a painted finish and factory-mounted thermal expansion valve (TXV).

**Attention: Model Number Update & Free Upgrade**

Goodman has updated all air handler model numbers from "even" to "odd" as of 1/1/2018. Please be aware that in purchasing this unit, you agree to receive the corresponding UPDATED model, NOT the model listed herein. Updated model numbers are as follows:

• ASPT24 --> ASPT25
• ASPT30 --> ASPT32
• ASPT36 --> ASPT37
• ASPT48 --> ASPT49
• ASPT60 --> ASPT61

Standard Features:

• Suitable for use with the refrigerant R-410A
• Direct-drive, multi-speed ECM motor
• Internal factory-mounted TXV valve
• Transformer and blower time-delay on all units
• All-Aluminum coil
• Complies with the Factory-sealed Air Handling Credit with or without field-installed filter kits as listed in the 2001 Florida Building Code, Chapter 13, Section 610.2.A.2.1
• AHRI Certified; ETL Listed

Cabinet Features:

• New rigid SmartFrame cabinet
• 21 inches depth for easy attic access
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation
• Screw-less sides & back prevents condensation
• Multi-position capability: upflow, downflow, horizontal or vertical
• Coil-mounting track for quick repositioning
• Tool-less filter access accommodates standard-size filters
