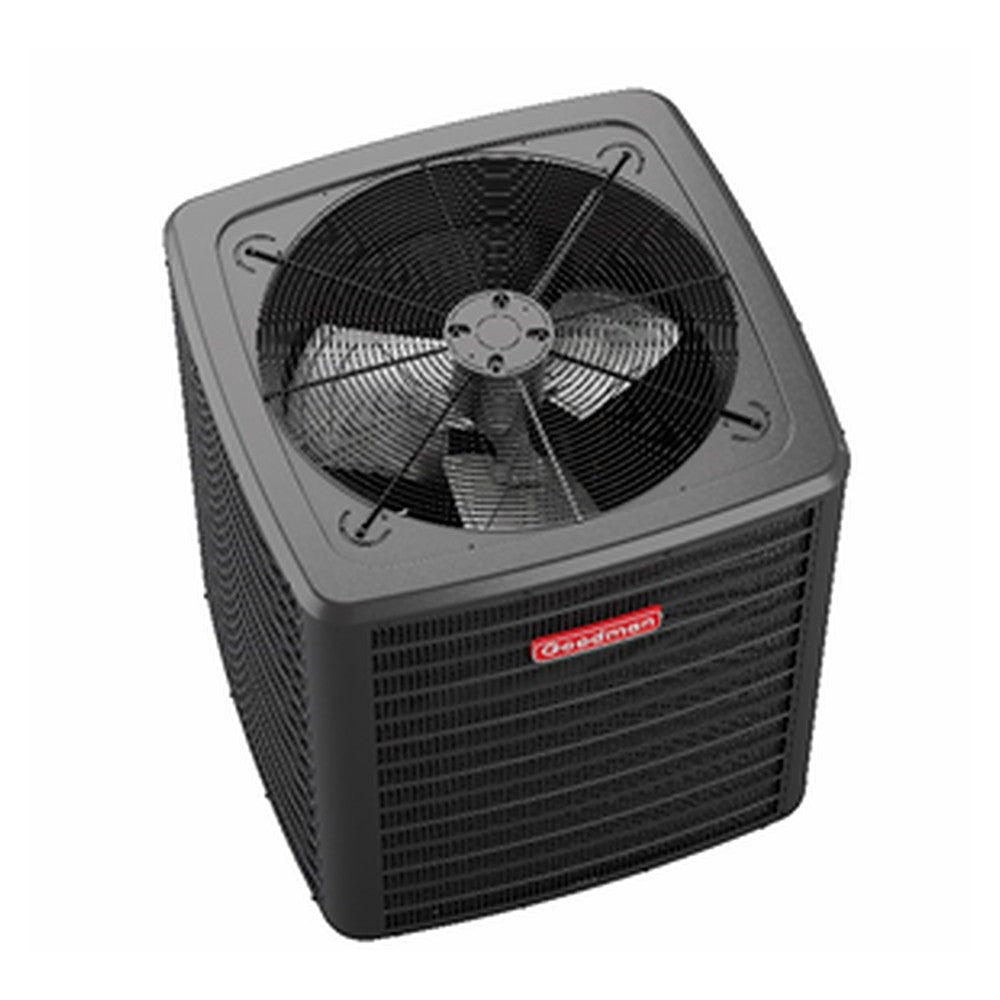

Goodman 3 Ton 14.3 SEER2 Ton Classic Series Air Conditioner Condenser
Goodman 3 Ton 14.3 SEER2 Ton Classic Series Air Conditioner Condenser
Model: GSXB403610
Discontinued (Upgrade Available)
Call for details
Share:
IMPORTANT NOTE: When purchasing COOLING ONLY HVAC EQUIPMENT, Florida residents must refer to the new Florida Building Code, 8th Edition Section R501.7.2 which became effective on December 31st, 2023. This section can be viewed online here or you may review the letter provided by the Technical Director of the DBPR Florida Building Codes and Standards in the documents section below.
The Goodman GSXB4 Air Conditioner Condenser is available now in very limited quantities! This unit will only match with Goodman AMST, AWST and AVPTC air handlers or CAPFA series coils. This unit will not work with ARUF or ASPT air handlers.
Standard Features:
- Scroll Compressor
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter on 1.5-4.0T
- Service valves with sweat connections and easy-to-access gauge ports
- Contactor with lug connection
- Ground lug connection
- AHRI Certified
- ETL Listed
| Model Number (s) | GSXB403610 |
| Brand | Goodman |
| Type | Air Conditioning |
| Ton | 3.0 Ton |
| SEER | 14.3 |
| Cooling Btu | 36,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 75 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 7/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Compressor Warranty (Years) | 10 |
| Height (Inches) | 39 1/2 |
| Depth (Inches) | 35 1/2 |
| Category | Condensers |
| Decibel Level (dB) | 75 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 7/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Compressor Warranty (Years) | 10 |
| Height (Inches) | 39 1/2 |
| Depth (Inches) | 35 1/2 |
| Category | Condensers |
