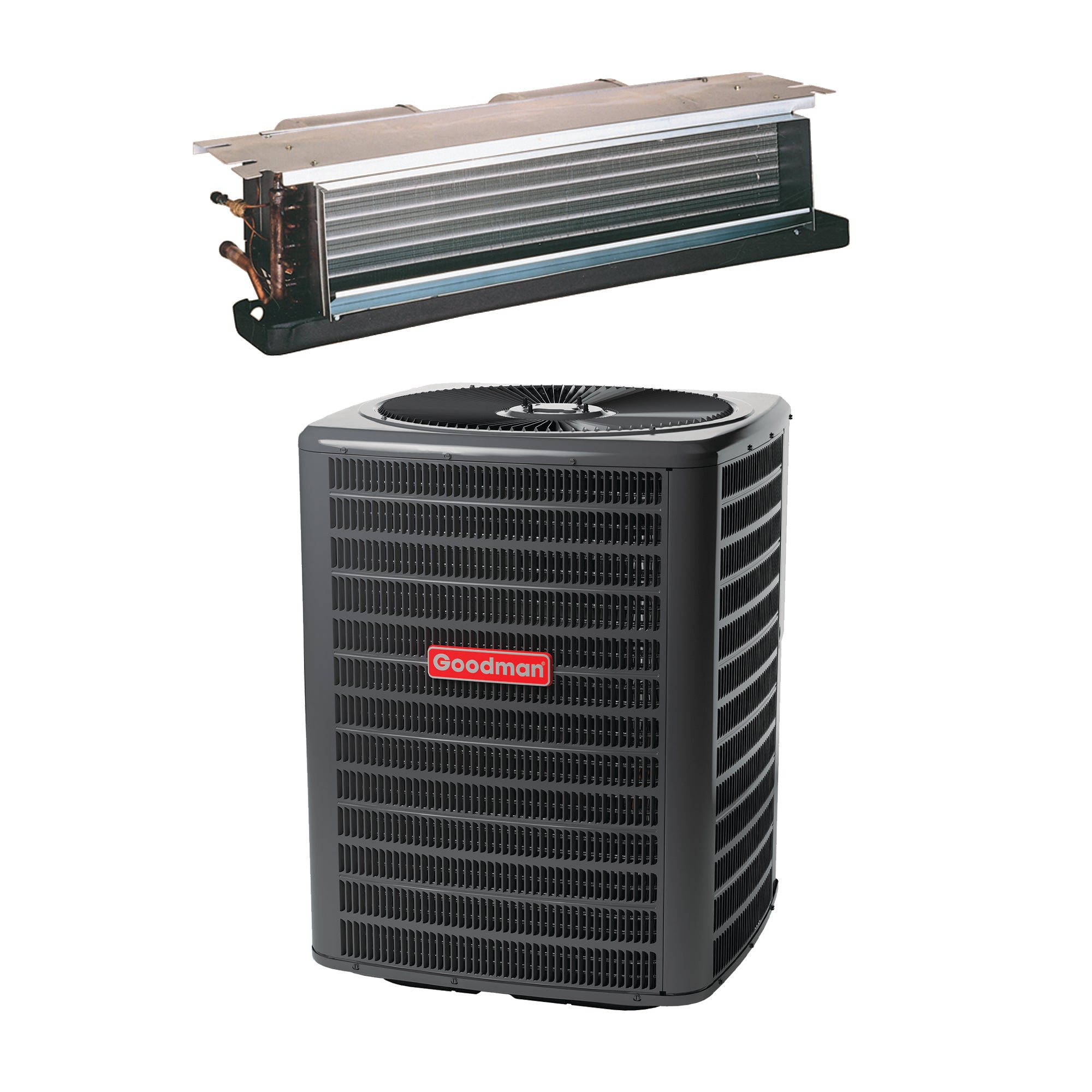

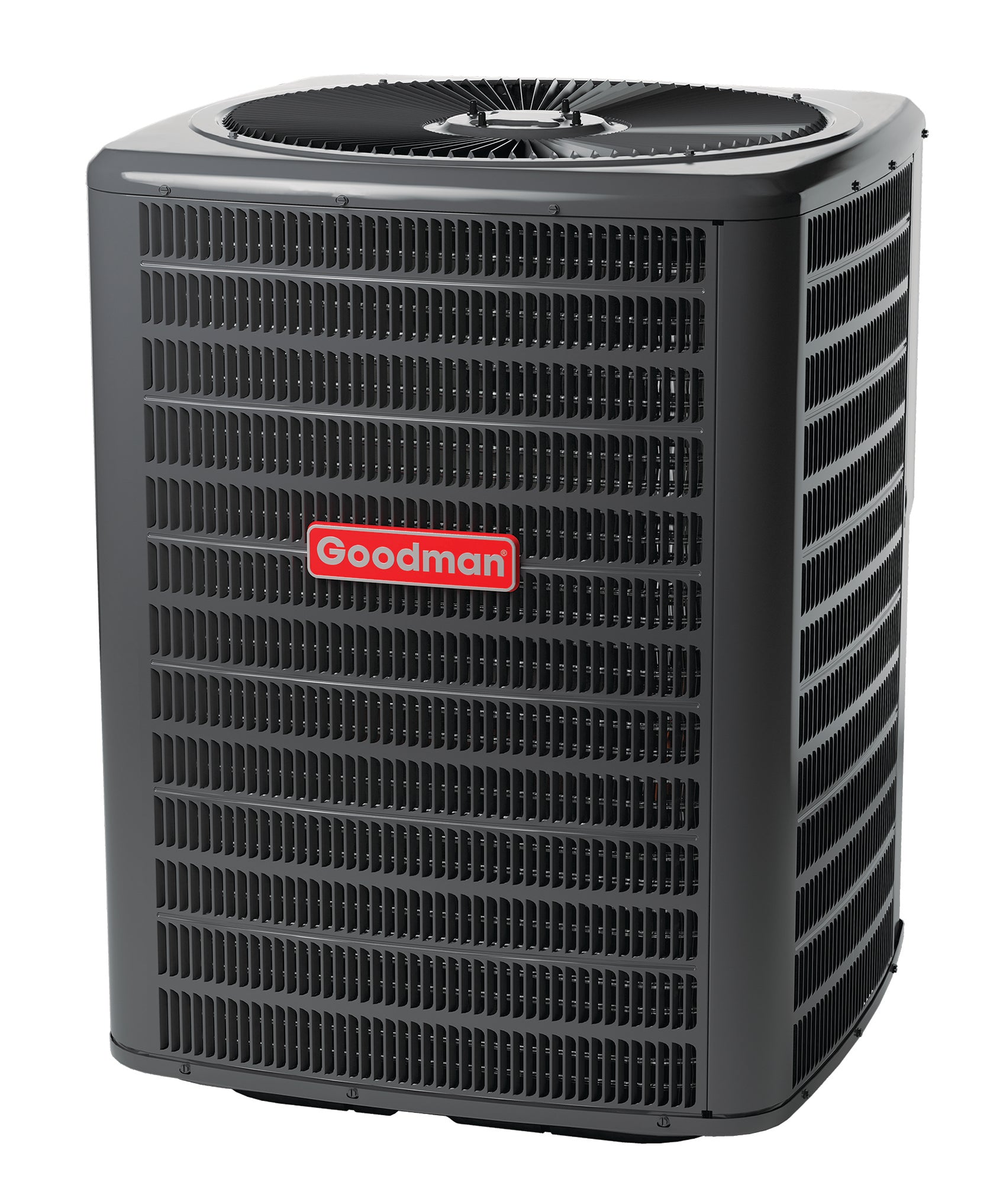

The Goodman GSZ16 Heat Pump is the latest high efficiency 16 SEER Heat Pump from Goodman and provides a mix of performance, efficiency and value unmatched in the industry. The GSZ16 uses the environmentally friendly refrigerant R-410A and features the unique Goodman sound control top design for quiet operation. The coil is made of rifled refrigeration-grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.

Standard Features:

• High-efficiency scroll compressor
• SmartShift technology to ensure quiet reliable defrost
• High-density foam compressor sound blanket
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High and low pressure switches
• Service valves with sweat connections and easy access to gauge ports
• Copper tube/enhanced aluminum fin coil
• Fully charged for 15 of tubing length
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed

Cabinet Features:

• Goodman sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• Service ports and controls are accessible while unit is operating
• When properly anchored, meets the 2010Florida Building Code unit integrity requirements for hurricane-type winds(Anchor bracket kits available.)

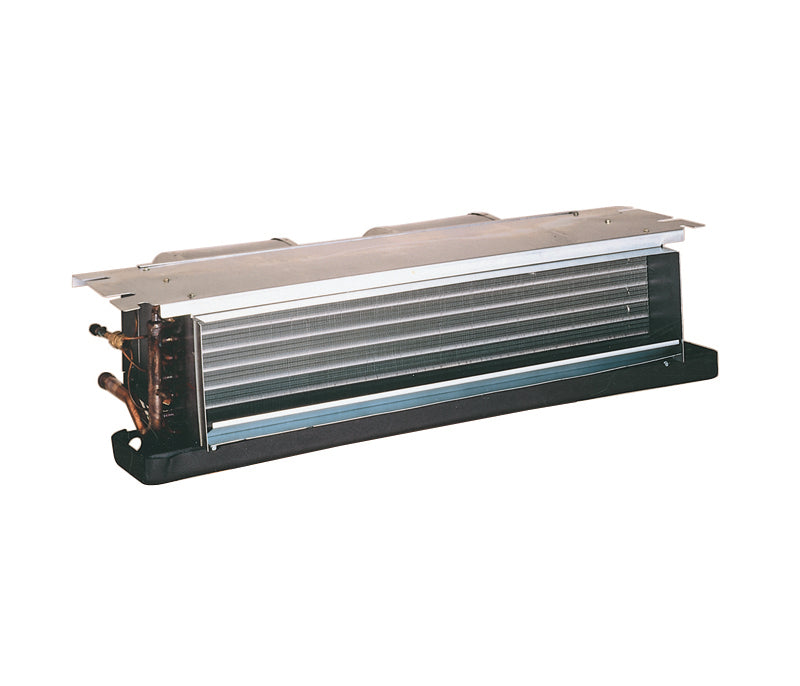

The Goodman ACNF Air Handler is an Electric Heat Air Handler designed to be ceiling mounted. These units have galvanized-steel construction and quiet operation. They are backed by a 10-Year Parts Limited Warranty.

Standard Features:

• Check flowrater for heat pump and cooling-only applications
• All-Aluminum tube/aluminum fin coil
• Direct-drive, resilient-mount, multi-speed motor
• Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
• High-efficiency evaporator coil
• Quiet operation
• Models with EEM motor: ACNF25 & ACNF31
• Models with PSC motors: ACNF18, ACNF24, & ACNF30
• Available with and without heat
• AHRI Certified; ETL Listed
• Primary/secondary drain connection in a high-temperature plastic drain pan
• Suitable for free-return installation (non-ducted return air)
• Galvanized-steel construction
• Factory-installed pull-type disconnect
• Easy service access
