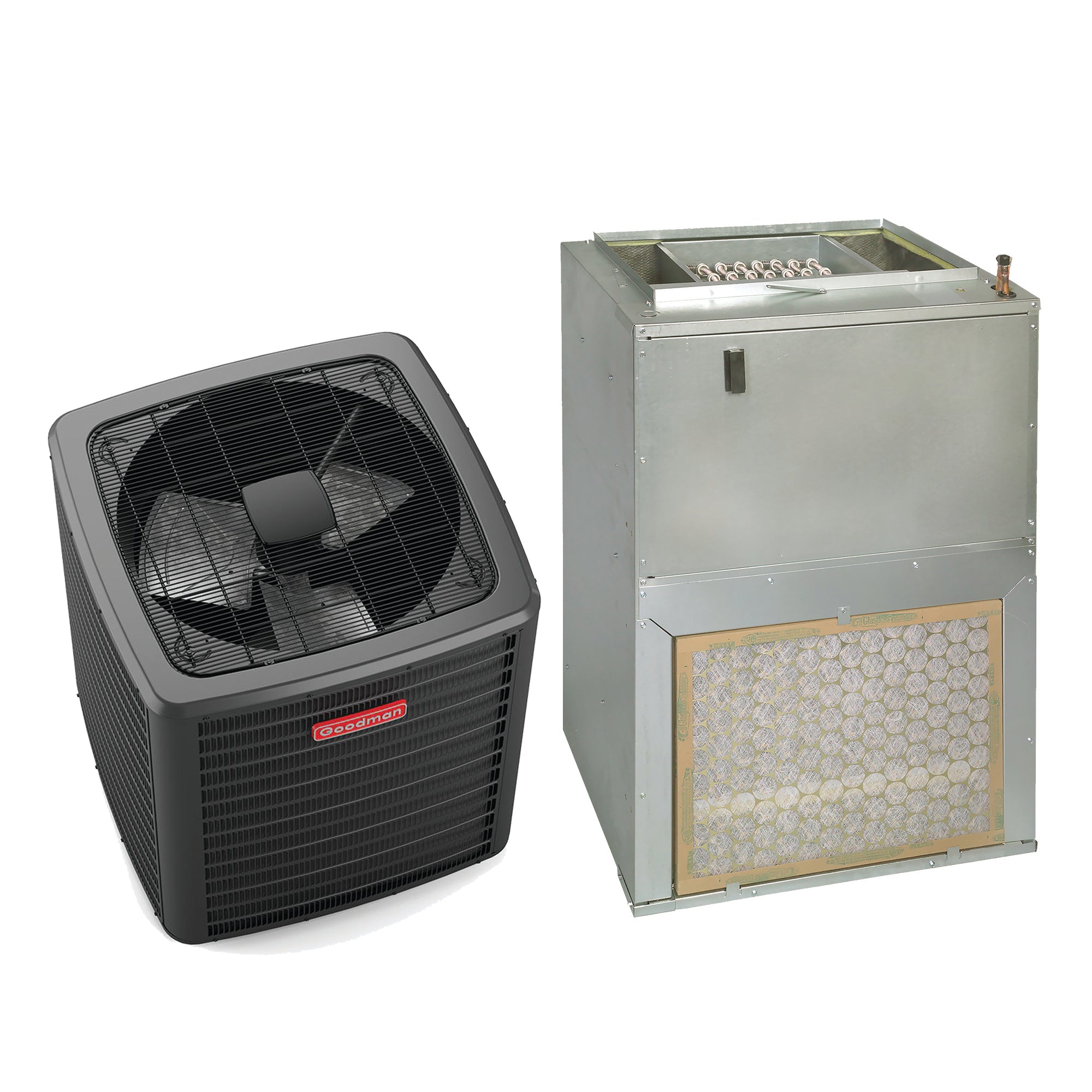

The Goodman GSZB4 Heat Pump Condenser is available now in very limited quantities! This unit will only match with Goodman AMST and AWST air handlers or CAPTA series coils. This unit will not work with ARUF or ASPT air handlers.

Standard Features:

• Energy-efficient compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter on 1.5-4.0T
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

The Goodman AWST Air Handler (front-return) is designed to be vertically wall or stud mounted. This unit features a check flowrater and direct drive, multi-speed motor. The AWST is housed in a fully insulated, galvanized-steel cabinet.

Standard Features:

• AWST Models: Equipped with a fully adjustable TXV
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Sequence-controlled, rust-resistant nickel chromium heating elements of 5, 8 and 10 kW
• Aluminum tubing coils on all models
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Built-in filter rack (filter included)
• Factory-installed pull-type disconnect
• Thermoplastic drain pan with bottom primary and secondary drain connections
• Large Chassis (2.5 and 3 Ton Units); Front Return Only
• Small Chassis (1 and 2 Ton Units); Front or Bottom Return
• Wall-hanging bracket provided
