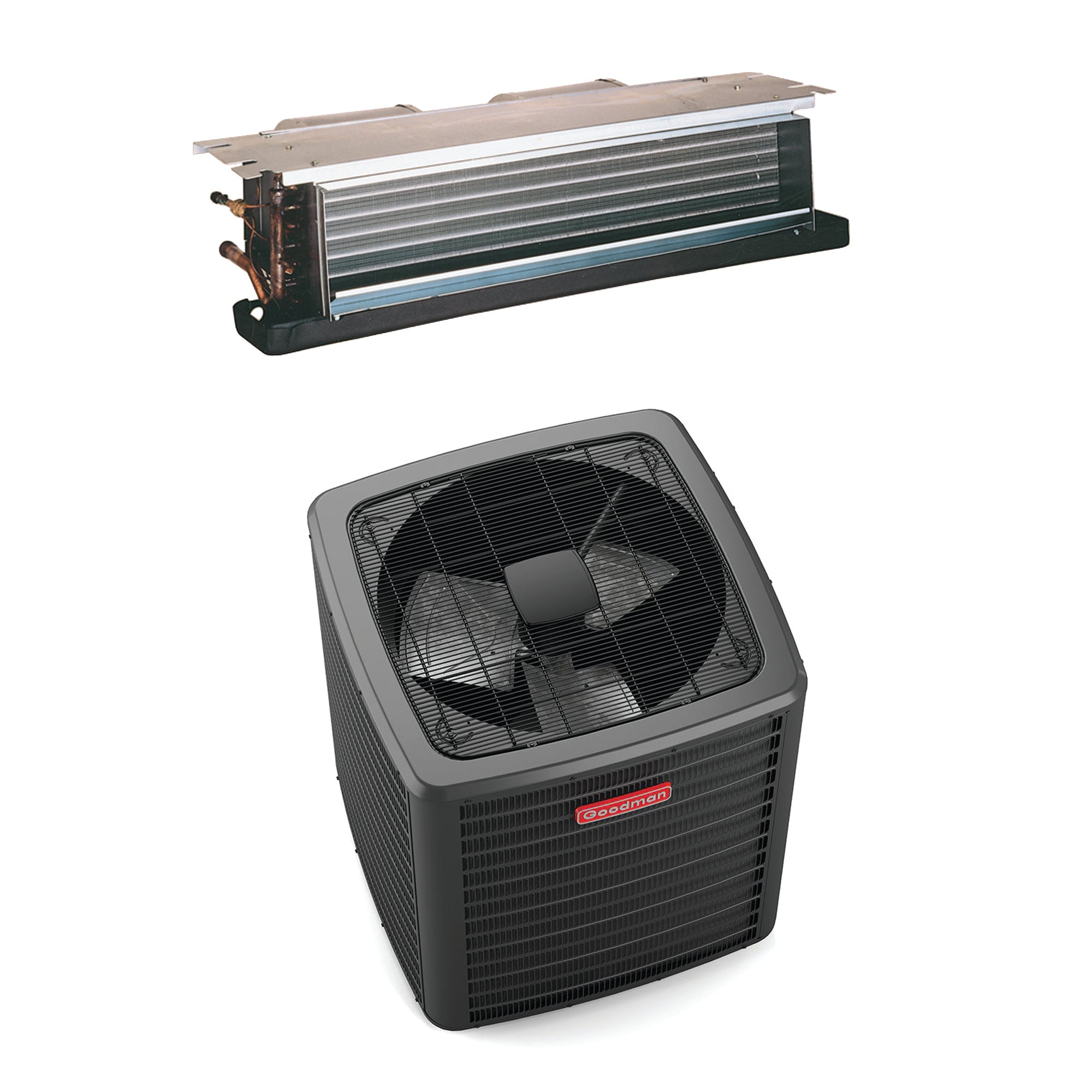

The Goodman Multi-Family Series GSZM4 Heat Pump Condenser is available now in very limited quantities! This unit will only match with Goodman AMST and AWST air handlers or CAPFA series coils. This unit will not work with ARUF or ASPT air handlers.

Standard Features:

• High-efficiency scroll compressor
• SmartShift® technology to ensure quiet reliable defrost
• Enhanced aluminum fin coil with 5 mm diameter copper tubes in 1.5- to 3.5-ton
• Single-speed PSC condenser fan motor
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High- and low-pressure switches
• Service valves with sweat connections and easy access to gauge ports
• Fully charged for 15’ of tubing length
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Standard Features:

• All-Aluminum tube/aluminum fin coil
• Direct-drive, resilient-mount, multi-speed motor
• Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
• High-efficiency evaporator coil
• Quiet operation
• AHRI Certified; ETL Listed
• Primary/secondary drain connection in a high-temperature plastic drain pan
• Suitable for free-return installation (non-ducted return air)
• Galvanized-steel construction
• Factory-installed pull-type disconnect
• Easy service access
