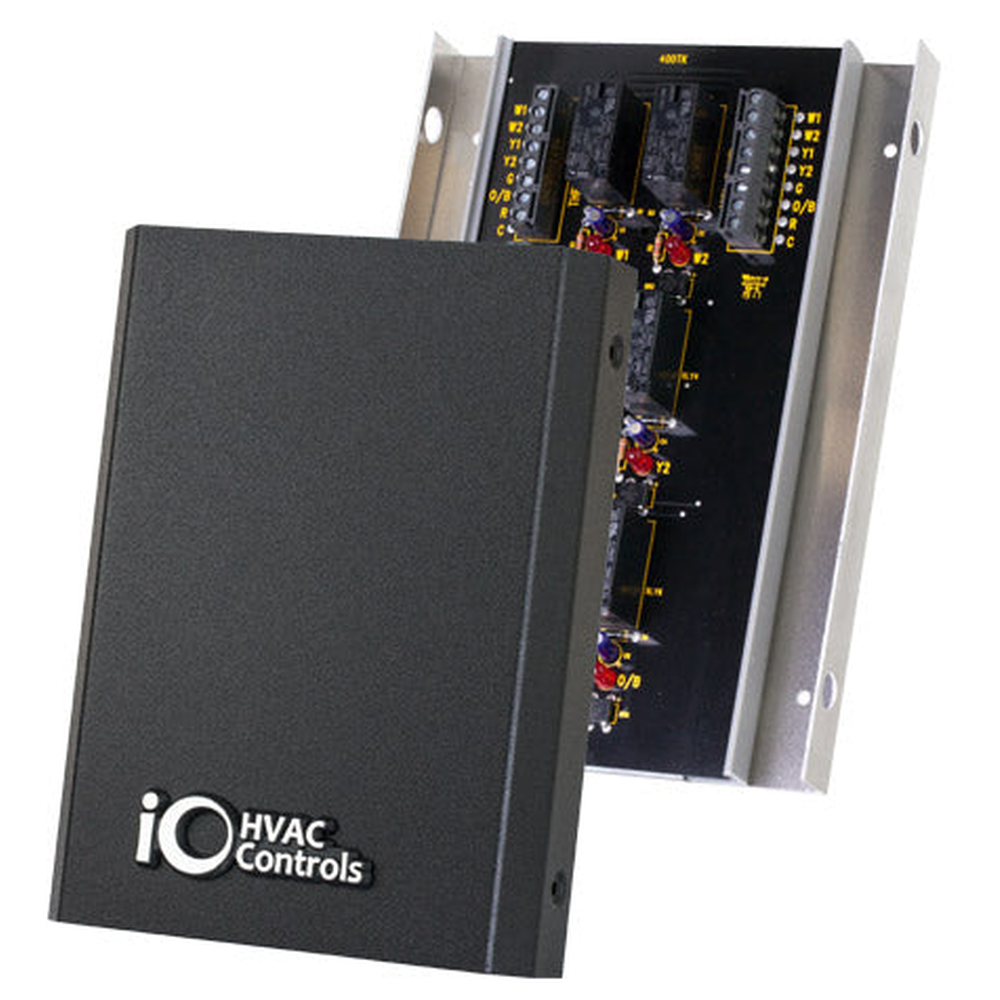

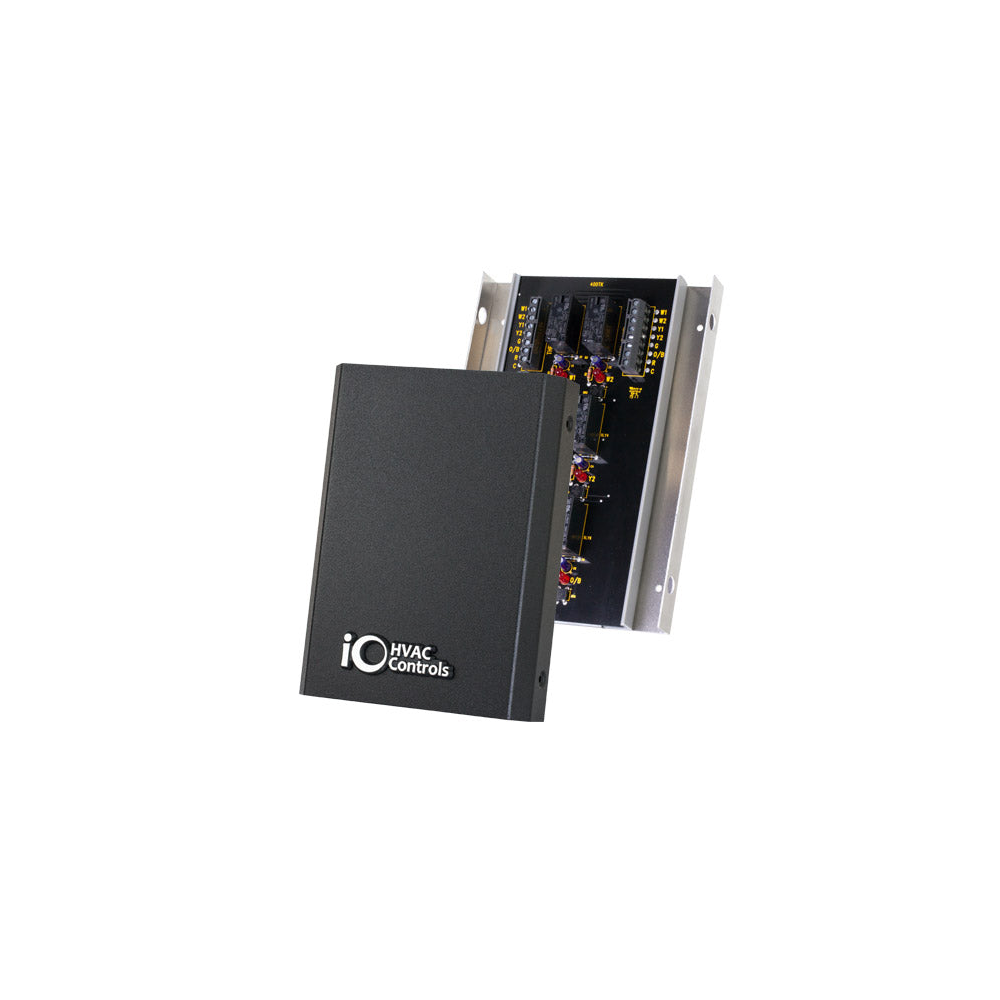

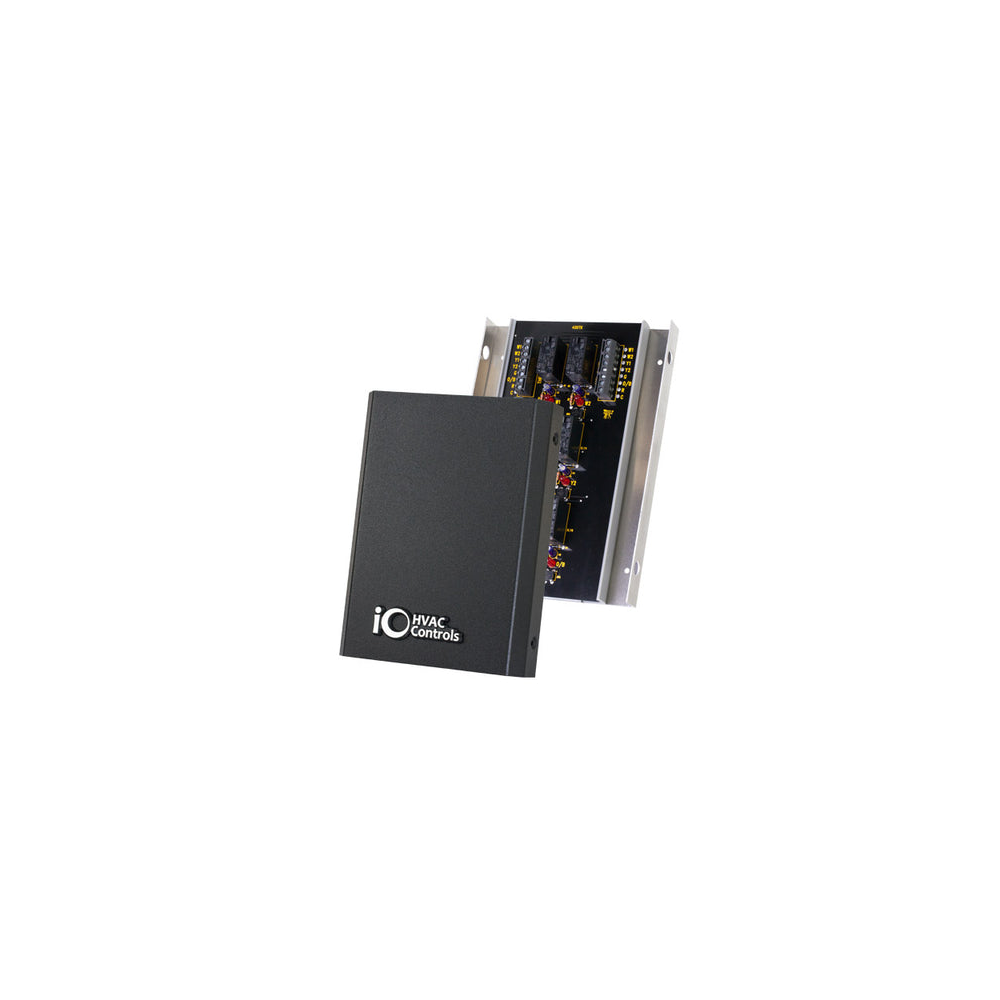

iO HVAC Controls Universal Twinning and Paralleling Kit — Please Note: This is the iO-Twin Panel Only. Not the kit.

Solves specific HVAC installation and operation challenges where a dedicated control device is needed. Pairs with iO HVAC Controls zoning systems and standard 24V equipment.

Features & Benefits

• The Twinning Zone Panel is designed to allow a single thermostat to control two identical HVAC units. It can also be expanded to control 4 identical HVAC units with one thermostat. The iO-TWIN can be used on common or separate ducted systems with single-stage, multi-stage or heat pump equipment. Uses standard 18-gauge thermostat wire.
• Metal Enclosure (iO-PAN-ME) available as an additional option on iO Zone Panels.
• Features:
• Easy to install and setup
• Uses standard 18-gauge thermostat wire
• Optional control of up to four units
• Reduces installation time and cost
• Built-in A2L compatibility
• Can be used with the Lead/Lag Controller

Technical Specifications

• Input Voltage: 24V
• Warranty: 5 Years
• UPC: 840119900583
• Dimensions (W×H×D): 7.38" × 2.50" × 11.38"
• Product Weight: 1.60 lbs
