iO HVAC Controls 4 Channel Wireless Relay Kit — When there’s not enough wires, this is the answer!

✓ Free shipping on this item — ships from The AC Outlet.

Features & Benefits

• Whether you are upgrading a client with a new multi-stage condensing unit or heat pump, digital thermostat, or simply have a broken wire, the iO-WR Wireless Relay Kit from iO HVAC Controls can save you time, labor, and money. Not enough wires? The iO Wireless Relay kit is the solution!
• The iO-WR allows you to wirelessly control hundreds of applications. It can energize a relay up to 100′ depending on the construction of the building. Also, up to six (6) Wireless Relay Kits can be installed in the same building.

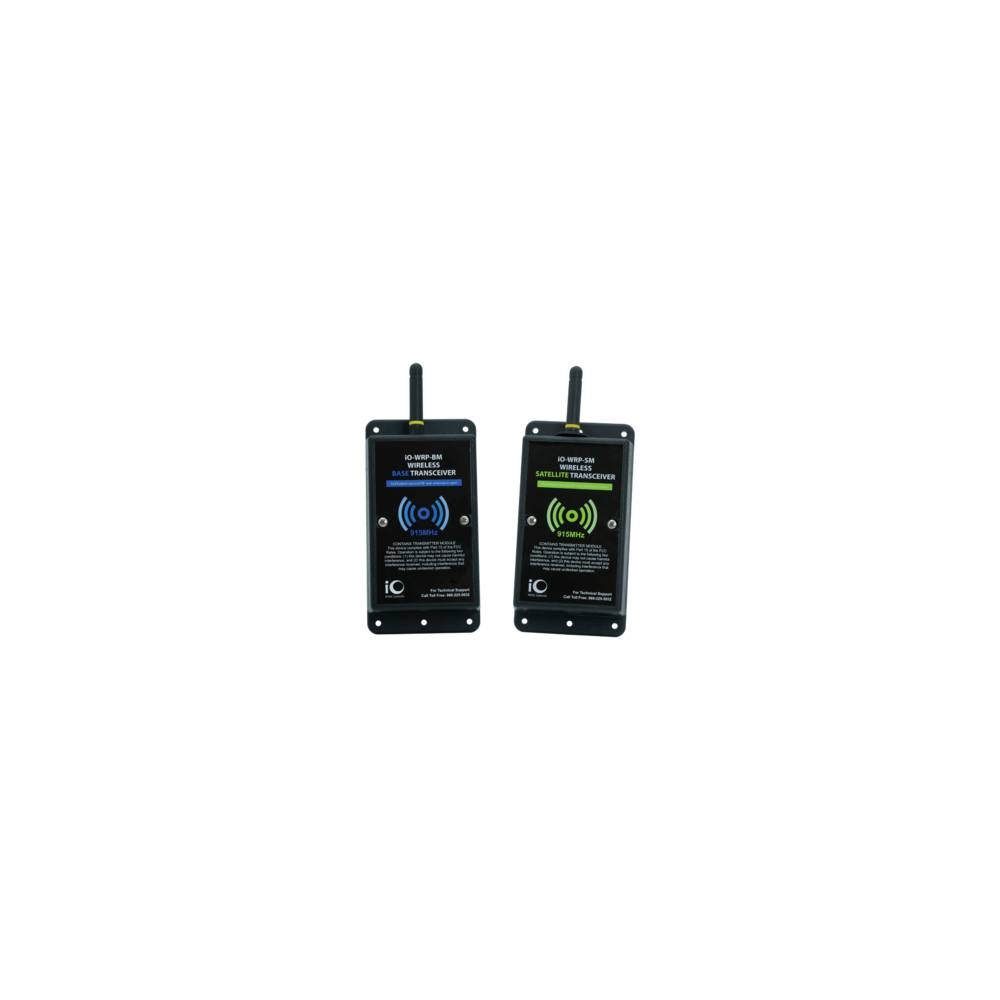

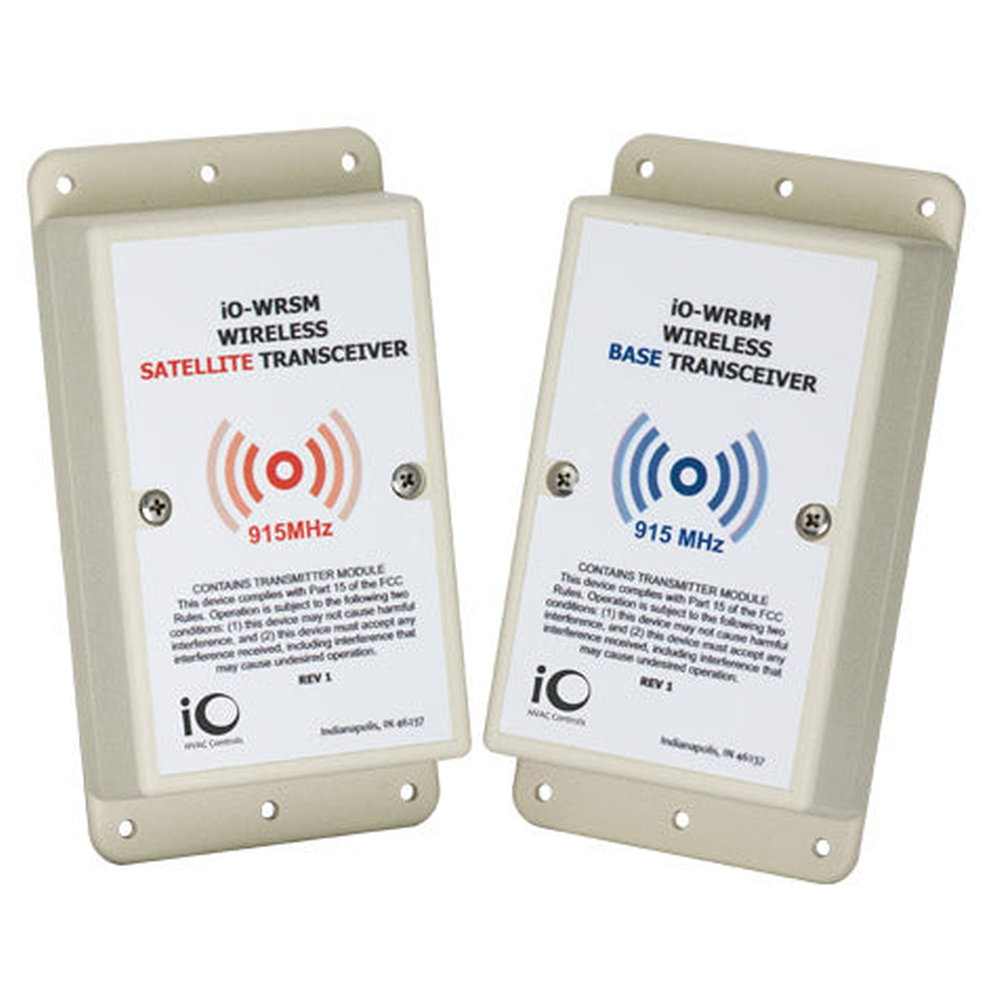

• The iO-WR Kit contains two 4-channel transceivers. The base module has 3 transmitting channels and 1 receiving channel. The satellite module has 3 receiving channels and 1 transmitting channel. Each transceiver module uses a redundant transmission protocol for fail-safe protection. If either module does not receive a valid ON or OFF transmission signal within 60 seconds, the output or outputs will be turned off.
• Control Applications:
• • Replace broken wires
• • Cooling equipment
• • Heating equipment
• • Condensing units
• • Fans
• • Pumps
• • Industrial equipment
• • Lighting control
• Monitoring Applications:
• • Cooling equipment
• • Heating equipment
• • Fans
• • Industrial equipment
• • Temperature limits
• • Pressure limits
• The iO-WR can end your frustration on many applications when pulling additional wire is not possible.
• Made in the USA

Technical Specifications

• Warranty: 1 Year
• Input Voltage: 24V
• Frequency: 915 MHz
• UPC: 840119900675
• Dimensions (W×H×D): 5.25" × 2.25" × 6.75"
• Product Weight: 0.65 lbs
