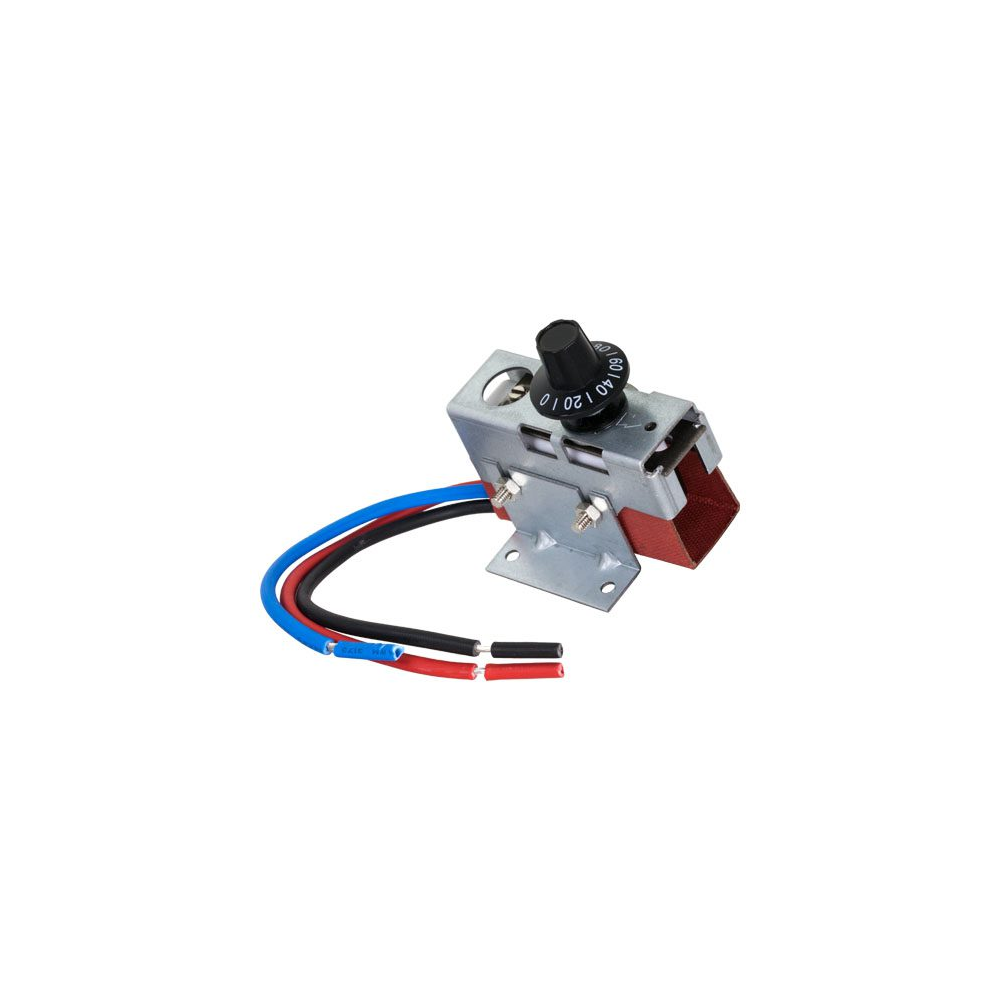

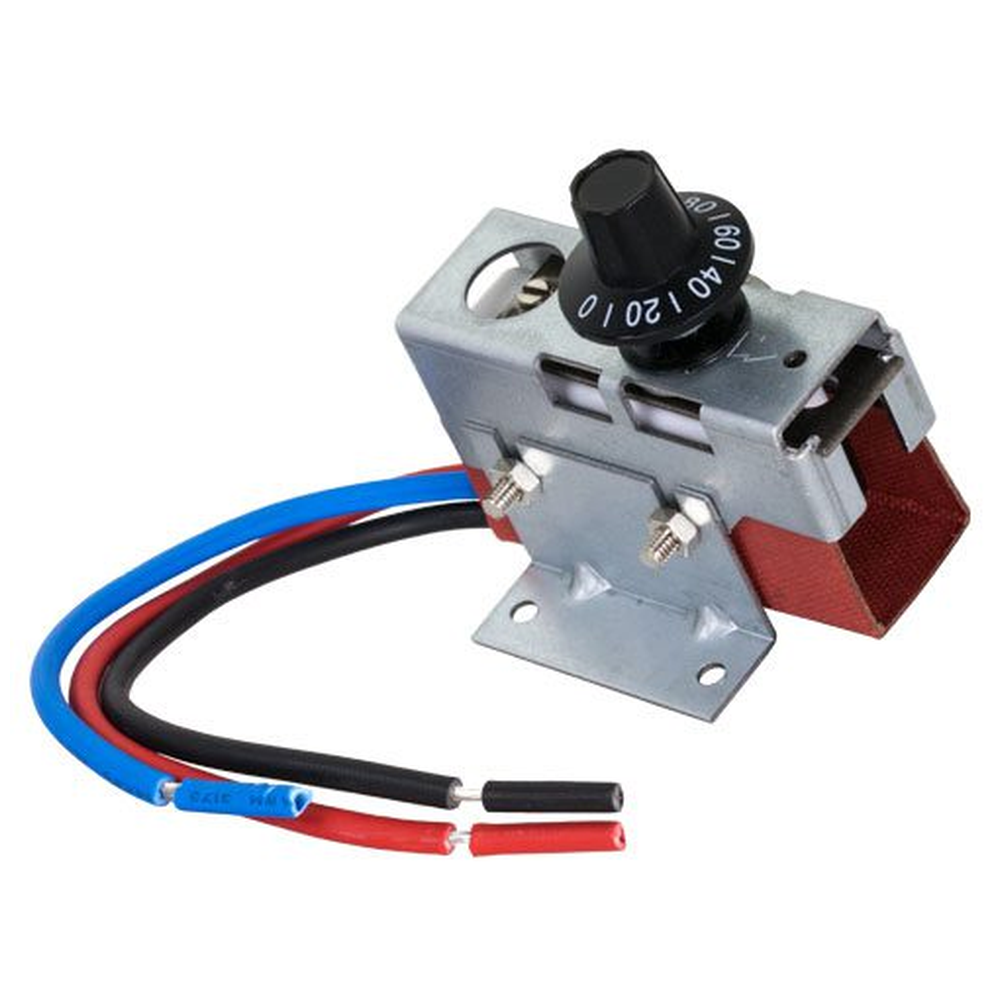

TPI Spdt Heat/Cool Outdoor Bi Metal Thermostat — iO-DFK-ODT Outdoor Thermostat for the iO-DFK Dual Fuel Kit

✓ Free shipping on this item — ships from The AC Outlet.

Features & Benefits

• OPERATION SPECIFICATIONS
• Sensor: Bi-Metal
• Setpoint Range: 0-110° F
• Rated Differential: 4-6° F
• Voltage: 120-277VAC
• Amp Rating: 22 Amps, Resistive Max.
• HP Ratings: 3/4 HP @ 125 VAC
• 1.5 HP @ 250-277 VAC
• Connections: 6” Wire Leads
• Red – Common
• Black – Make on fall below setpoint
• Blue – Make on rise above setpoint
• Size: 2.63” H x 1.5” W x 2.5” D
• Depth includes 0.88” for stem and knob
• Width includes 0.63” for mounting bracket

Technical Specifications

• Power Type: Hardwired
• UPC: 282410381850
• Dimensions (W×H×D): 3.50" × 2.25" × 4.00"
• Product Weight: 0.35 lbs
