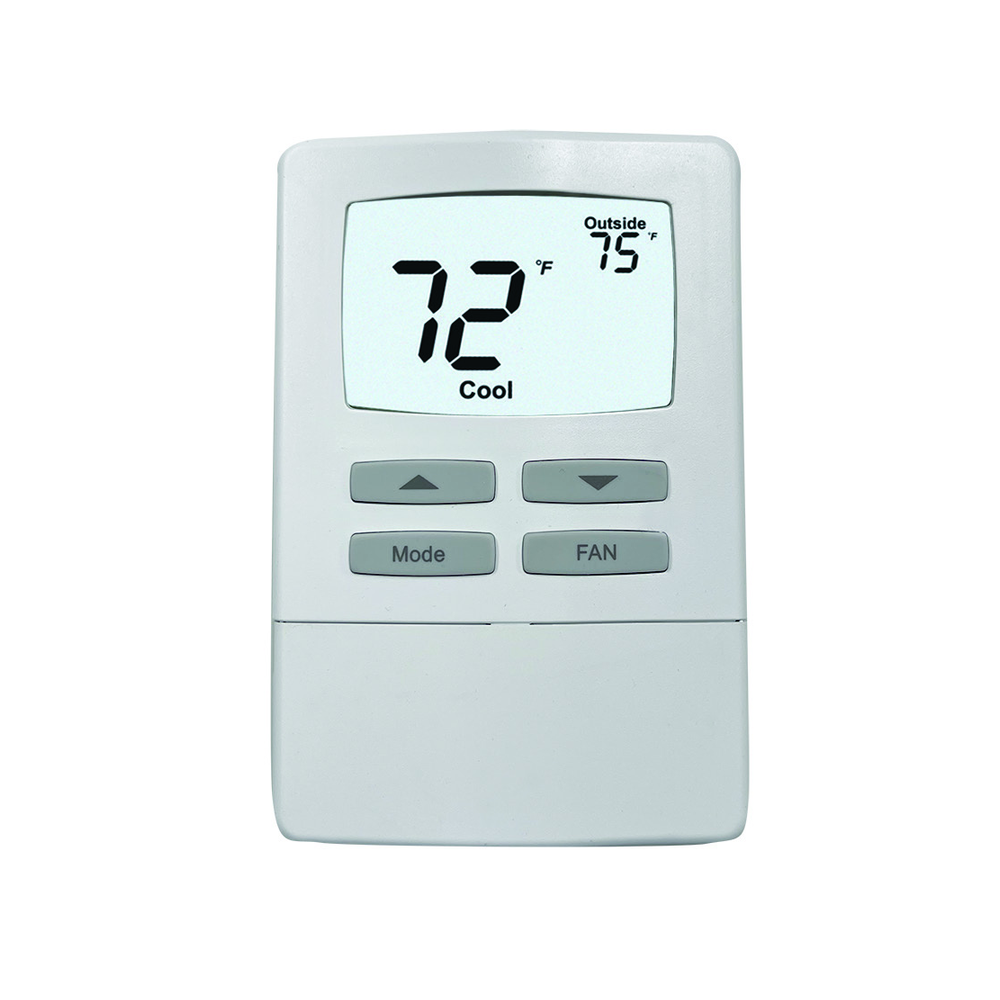

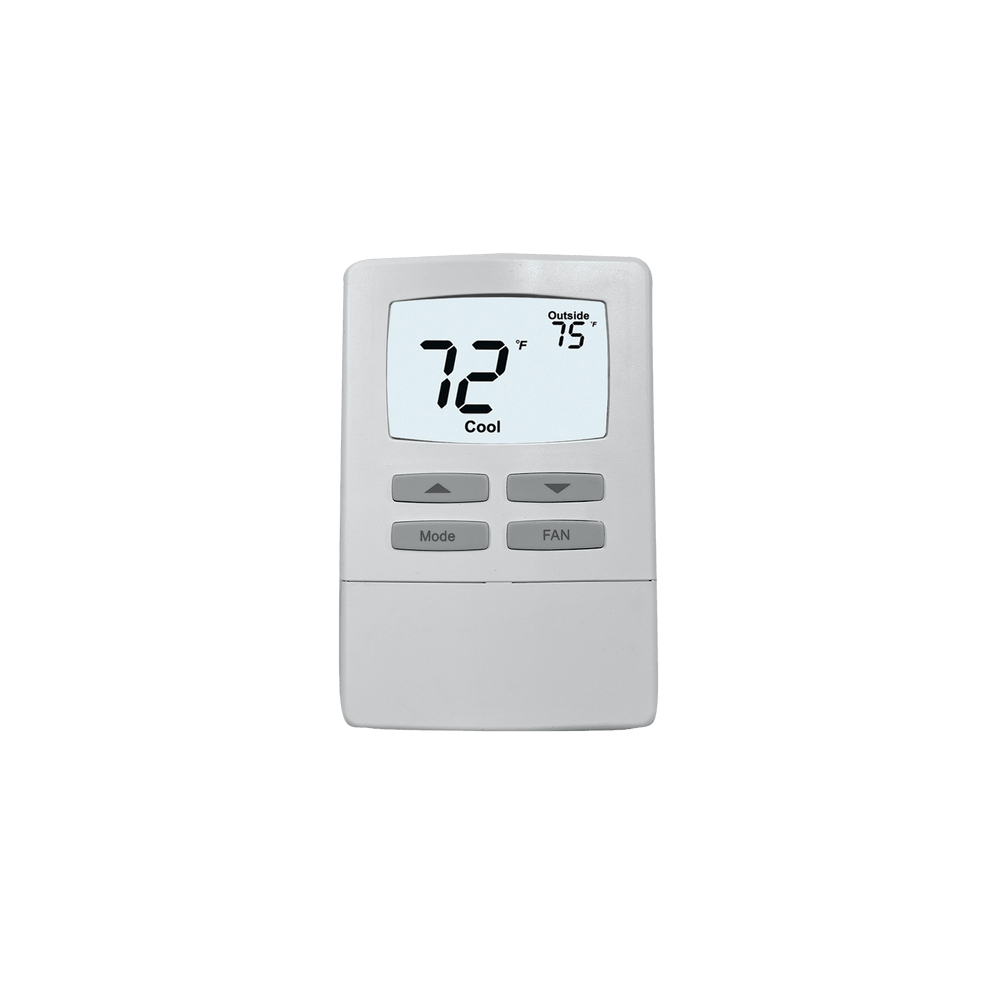

iO HVAC Controls 3H/2C Vertical Non-Programmable Atlas Thermostat — The T32-VNP Atlas is a feature-rich, digital thermostat that has been manufactured using the highest quality components and design currently available. When properly installed and configured by a professional heating and air conditioning contractor, the T32-VNP Atlas will provide years of dependable operation. The T32-VNP Atlas is attractive, highly reliable and easy-to-use.

✓ Free shipping on this item — ships from The AC Outlet.

Features & Benefits

• Features and Benefits:
• Battery powered or hardwired
• Manual or auto changeover
• Up to 2H/2C gas/electric or 3H/2C heat pump and dual fuel
• Adjustable heating and cooling setpoint limits
• PIN protected installer settings
• Outdoor temperature sensing and display (with T-OTS)
• Remote temperature sensing (with T-S1)
• Short cycle protection
• Fresh air ventilation feature with auxiliary output for fresh air damper

Technical Specifications

• Warranty: 5 Years
• Program: 7
• Power Type: Battery or Hardwired
• Touchscreen: No
• Vacation Hold: No
• Remote Outputs: No
• Terminal E: No
• Programmability: Non-Programmable
• Auto Changeover: Yes
• Backlight: Yes
• Programmable Fan: Yes
• Set Point Limiting: Yes
• Keypad Lockout: Yes
• Filter Monitor: Yes
• Remote Inputs: Yes
• Terminal R, Rh, or Rc: Yes
• Terminal C or X: Yes
• Terminal W or W1: Yes
• Terminal W2: Yes
• Terminal Y or Y1: Yes
• Terminal Y2: Yes
• Terminal G: Yes
• Terminal O or O/B: Yes
• UPC: 840119920628
• Imprinting Available: Yes
• Dimensions (W×H×D): 3.75" × 1.50" × 5.50"
• Product Weight: 0.55 lbs
