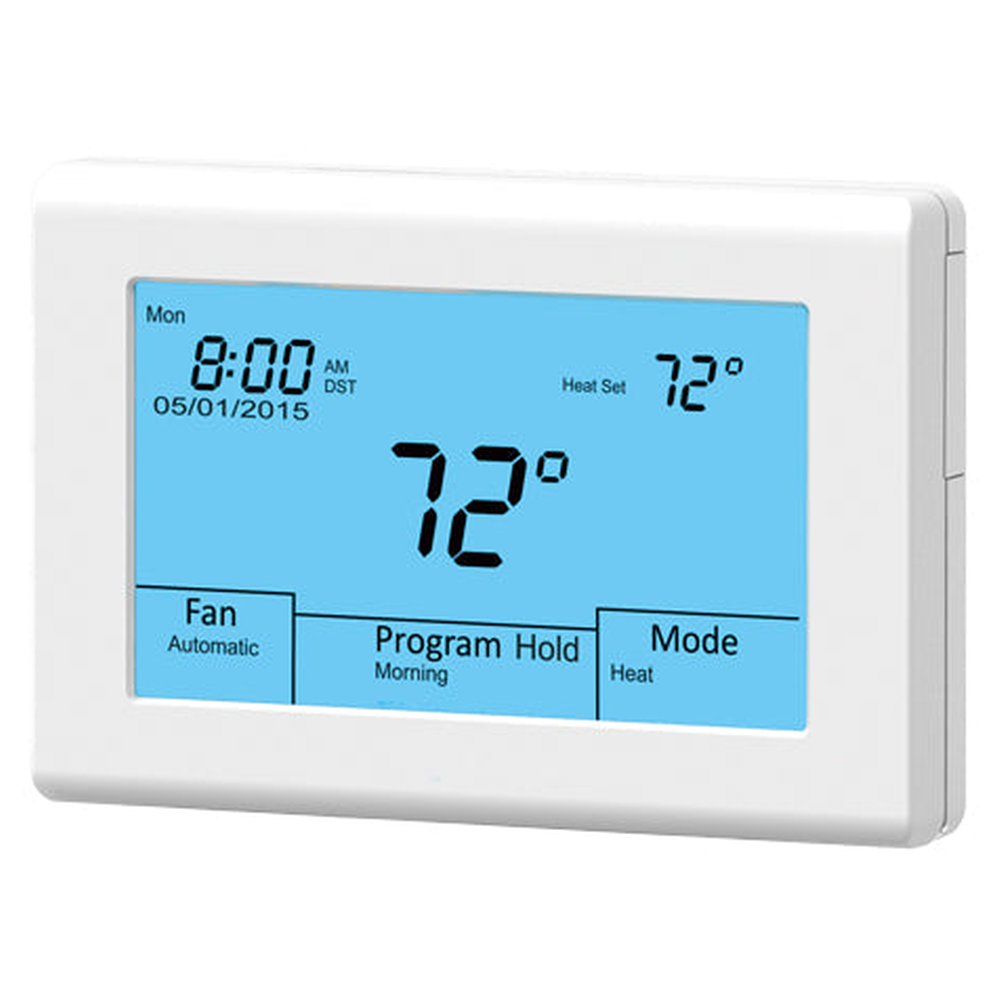

iO HVAC Controls 3H/2C Universal Titan Touchscreen Thermostat — The UT32 Titan is a non-programmable/programmable, universal, low-cost touchscreen thermostat available exclusively from iO HVAC Controls. The UT32 can be battery powered or hardwired which makes it ideally suited for use in residential and light commercial applications.

Designed for residential and light commercial HVAC installations where reliable temperature control is required. Compatible with standard 24V HVAC systems.

Features & Benefits

• 7 Day programmable or non programmable
• 3H/2C Heat pump or dual fuel
• 2H/2C Conventional
• Selectable high and low balance point control
• Selectable programmable fan options
• Battery powered or hardwired
• Two or four events per day
• Control Range 41­° – 122°
• Adaptive recovery
• Optional indoor / outdoor sensors
• Outdoor temperature display with Sensor
• AUX relay can be used for economizers / devices
• Manual or auto changeover
• Key pad lockout
• Temperature averaging with optional sensors
• Touchscreen lock options
• Selectable Stage Differentials
• Selectable heating and cooling set points
• Demand or lock staging options
• Night light option when hard wired
• 5-Year Warranty

Technical Specifications

• Program: 7-Day
• Changeover: Automatic, Manual
• Power Type: Battery, Hardwired
• System Type: Heat Pump Systems
• Stages: Multi
• Remote Outputs: No
• Terminal E: No
• Programmability: Non-Programmable, Programmable
• Display: Touchscreen
• Touchscreen: Yes
• Auto Changeover: Yes
• Backlight: Yes
• Programmable Fan: Yes
• Set Point Limiting: Yes
• Keypad Lockout: Yes
• Remote Inputs: Yes
• Terminal R, Rh, or Rc: Yes
• Terminal C or X: Yes
• Terminal W or W1: Yes
• Terminal W2: Yes
• Terminal Y or Y1: Yes
• Terminal Y2: Yes
• Terminal G: Yes
• Terminal O or O/B: Yes
• UPC: 840119900385
• Imprinting Available: Yes
• Dimensions (W×H×D): 5.25" × 2.00" × 6.75"
• Product Weight: 0.95 lbs
