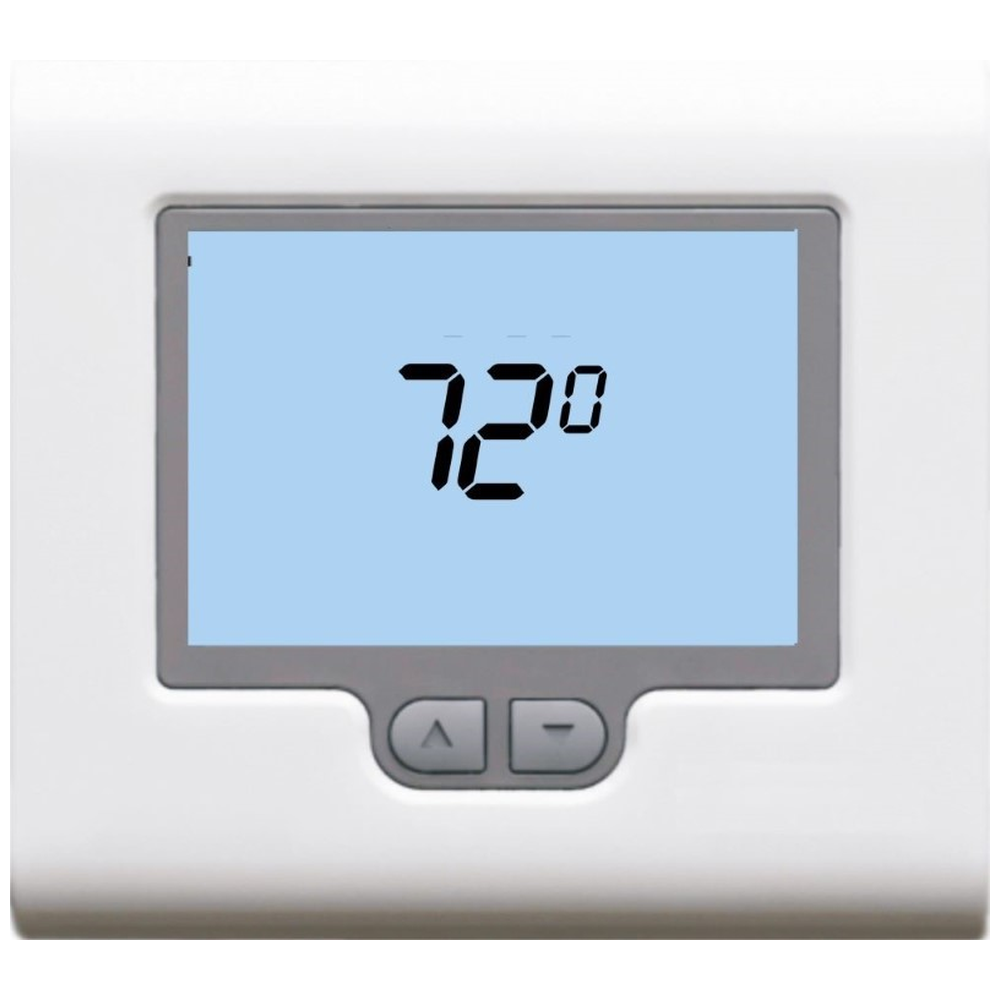

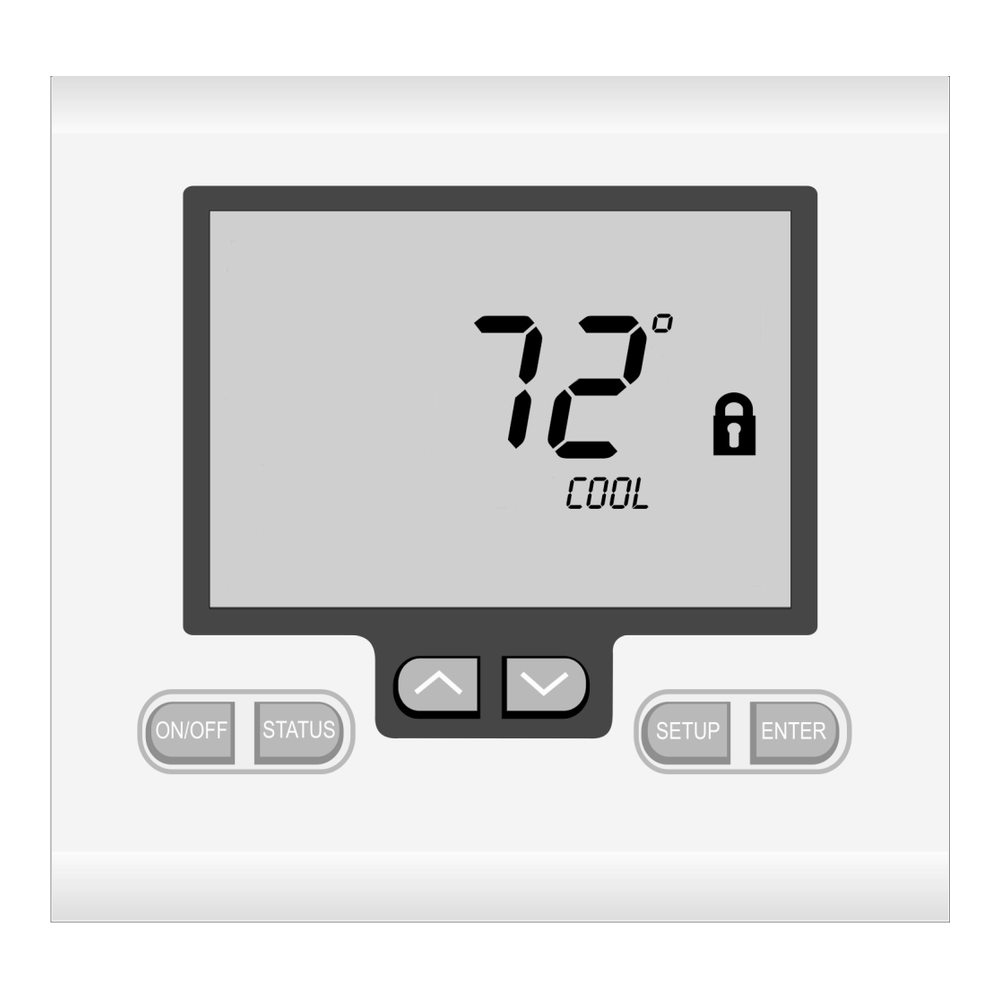

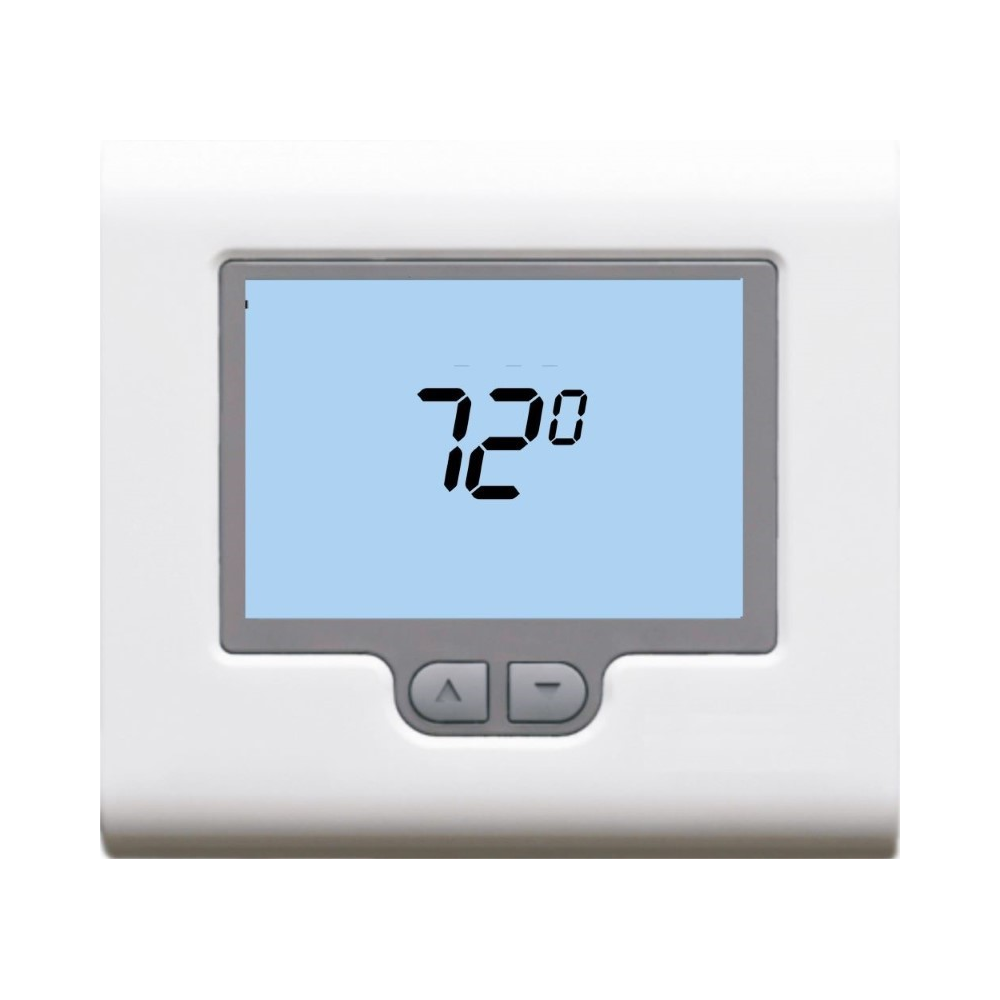

Digital Thermostat for zone panel or Modulating Zone One-T — Our Z-2000-T™ is used for our modulating Zone One™ dampers as well as with our Z-2000™ zone control system. The Comfort System Z-2000-T thermostat is designed to be used with the Z-2000 modulating zone control panel and the Zone Onenstandalone damper or VAV diffuser. Depending on the application, the Z-2000-T can be configured to modulate the damper actuator or provide 2-position control. The Z-2000-T should be installed in a zone being served by the damper or diffuser and in a location that represents the ambient space temperature.

✓ Free shipping on this item — ships from The AC Outlet.

Technical Specifications

• Voltage: 24V
• Temperature: 122°F (50°C) Max, 32°F (0°C) Min
• Warranty: 5 Years
• Changeover: Automatic
• Display: Digital
• Power Type: Hardwired
• Stages: Multi, Single
• Touchscreen: No
• Programmable Fan: No
• Vacation Hold: No
• Keypad Lockout: No
• Filter Monitor: No
• Remote Outputs: No
• Terminal W2: No
• Terminal Y2: No
• Terminal G: No
• Terminal O or O/B: No
• Terminal E: No
• Programmability: Non-Programmable
• Terminal Designations: C, R
• Auto Changeover: Yes
• Backlight: Yes
• Set Point Limiting: Yes
• Remote Inputs: Yes
• Terminal R, Rh, or Rc: Yes
• Terminal C or X: Yes
• Terminal W or W1: Yes
• Terminal Y or Y1: Yes
• UPC: 840119900392
• Imprinting Available: Yes
• Dimensions (W×H×D): 4.62" × 1.62" × 5.00"
• Product Weight: 0.55 lbs
