iO HVAC 2-Zone 1H/1C Control Panel Kit with ESP — The ZP2-HC-ESP is a single-stage heat/cool zone panel designed to control 2 zones in residential and light commercial applications. The ZP3-HPS-ESP model is designed to fit 3 zone applications for heat pump or dual fuel systems in residential and light commercial applications. The ZP3-HCMS-ESP model is designed to fit 3 zone applications for multi-stage heating and cooling in residential and light commercial applications.

✓ Free shipping on this item — ships from The AC Outlet.

Features & Benefits

• Use with MD Dampers only.

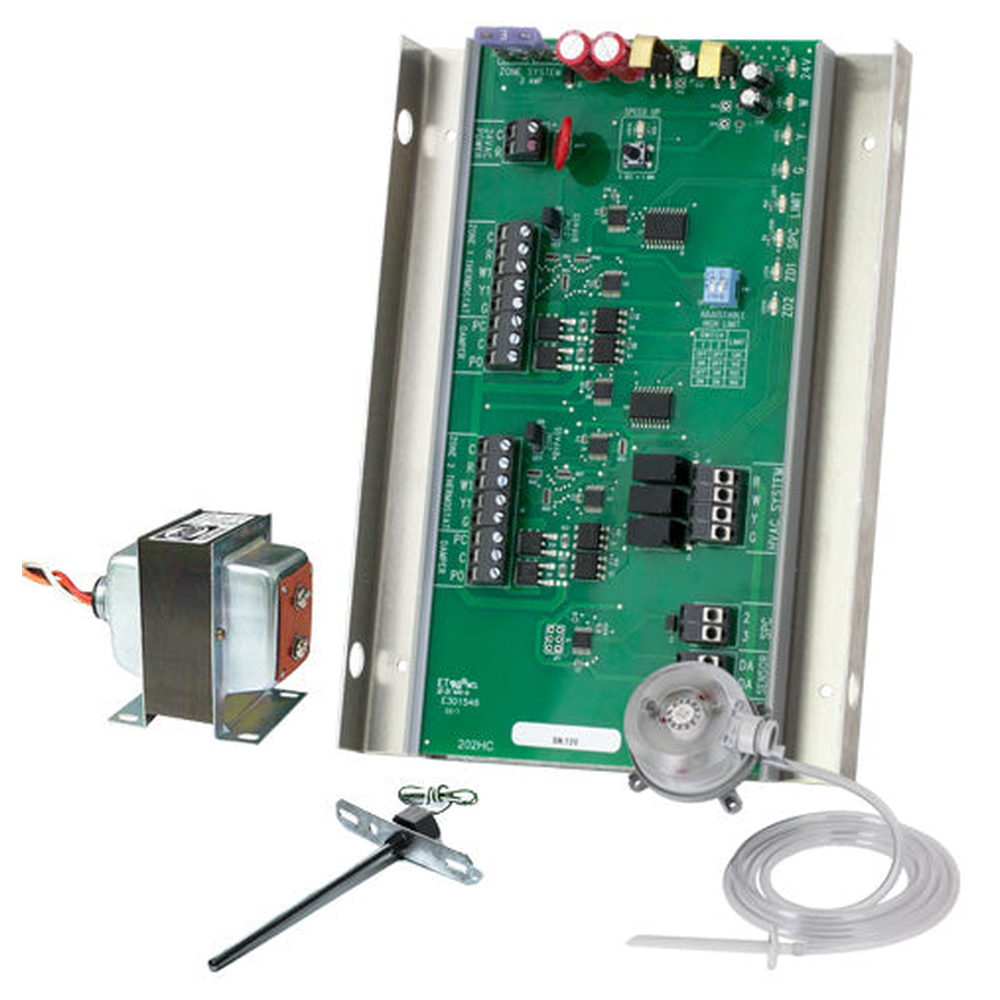

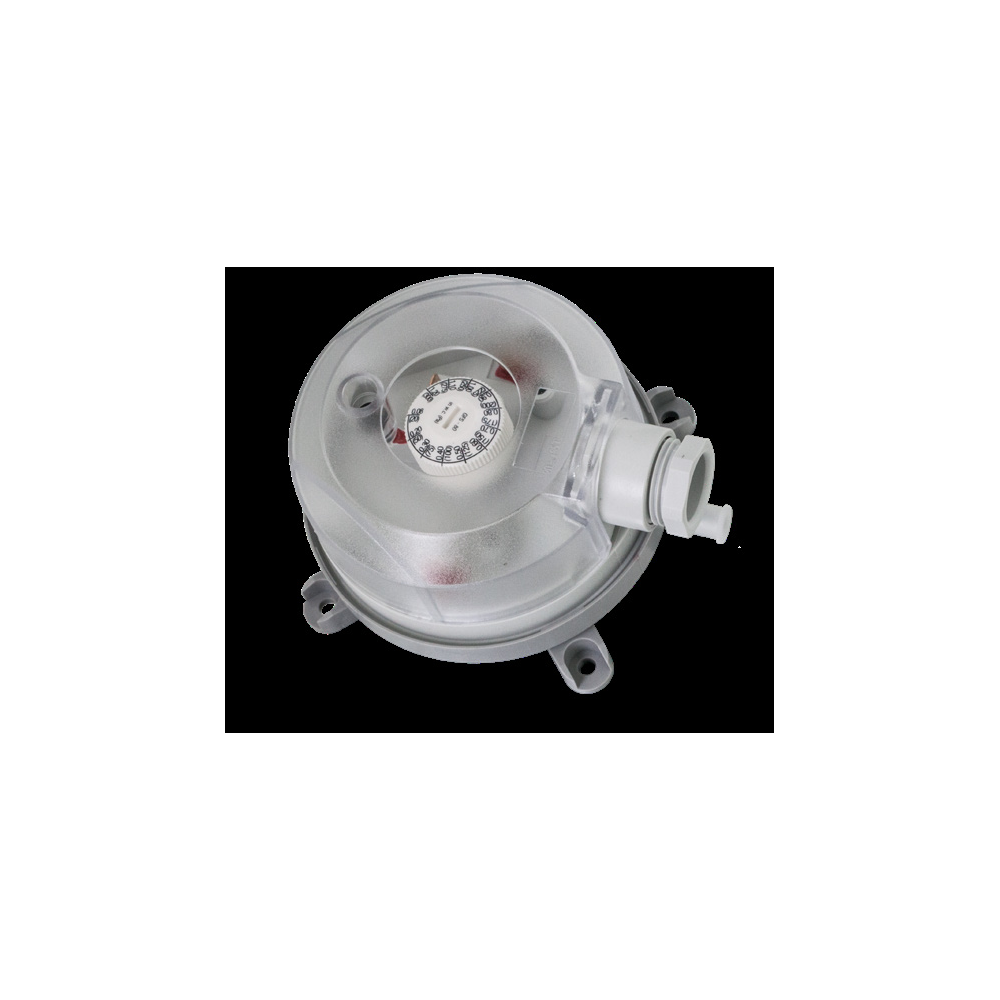

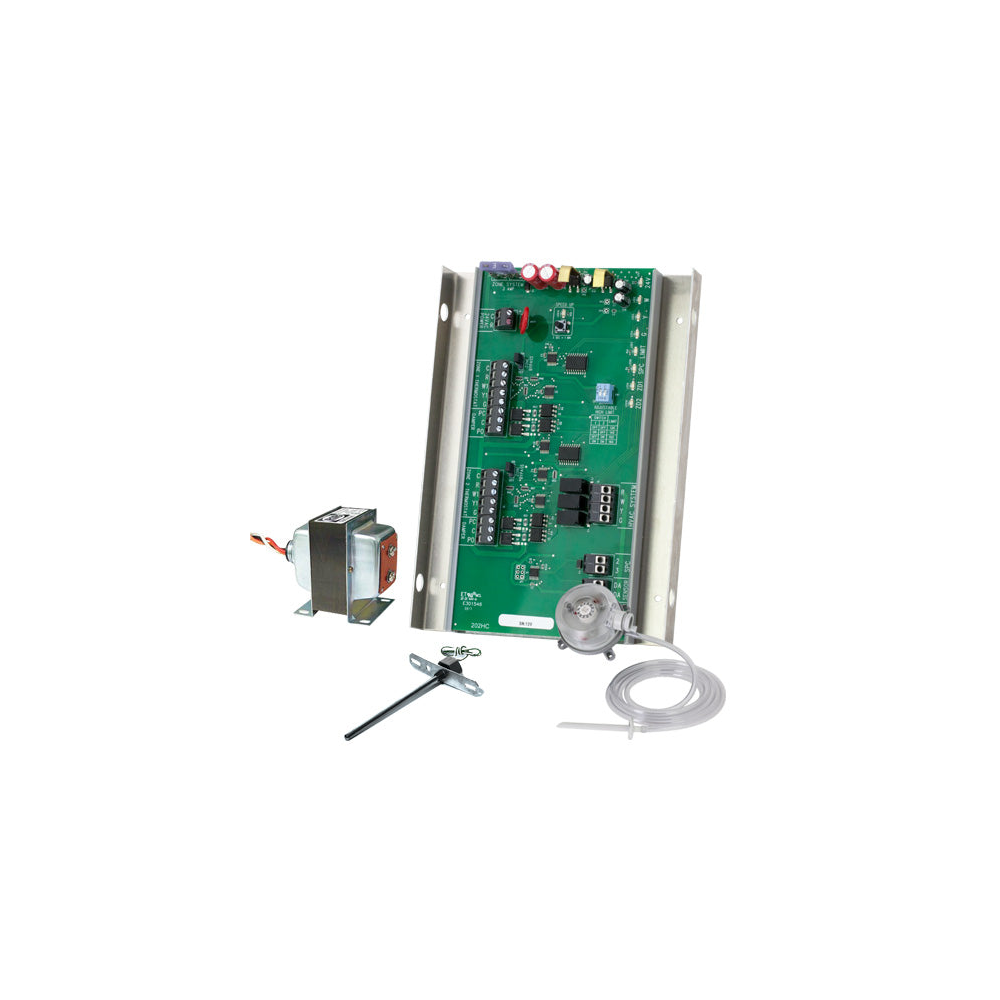

• Kit includes: Panel, static pressure sensor, duct temperature sensor and 40VA transformer
• Features:
• Built-in static pressure control eliminates the need for a bypass damper
• Auto changeover
• First call priority with time share
• LED status indication
• Independent fan control by zone
• Short cycle protection
• Competitively priced
• Works with 2 or 3 wire zone dampers*
• Adjustable high limit
• Adjustable high and low balance point (HPS)

Technical Specifications

• Operating Temperature: -40°F (-40°C) Min, 150°F (66°C) Max
• Warranty: 10 Years
• Length: 11"
• Width: 11"
• Height: 2"
• Construction: Aluminum Back Plate with Mounting Holes
• Zones: 2
• ESP / Static Pressure Control: Yes
• System Type: Conventional
• Stages: 1 Heat/1 Cool
• UPC: 840119900439
• Dimensions (W×H×D): 9.50" × 4.50" × 12.75"
• Product Weight: 4.15 lbs
