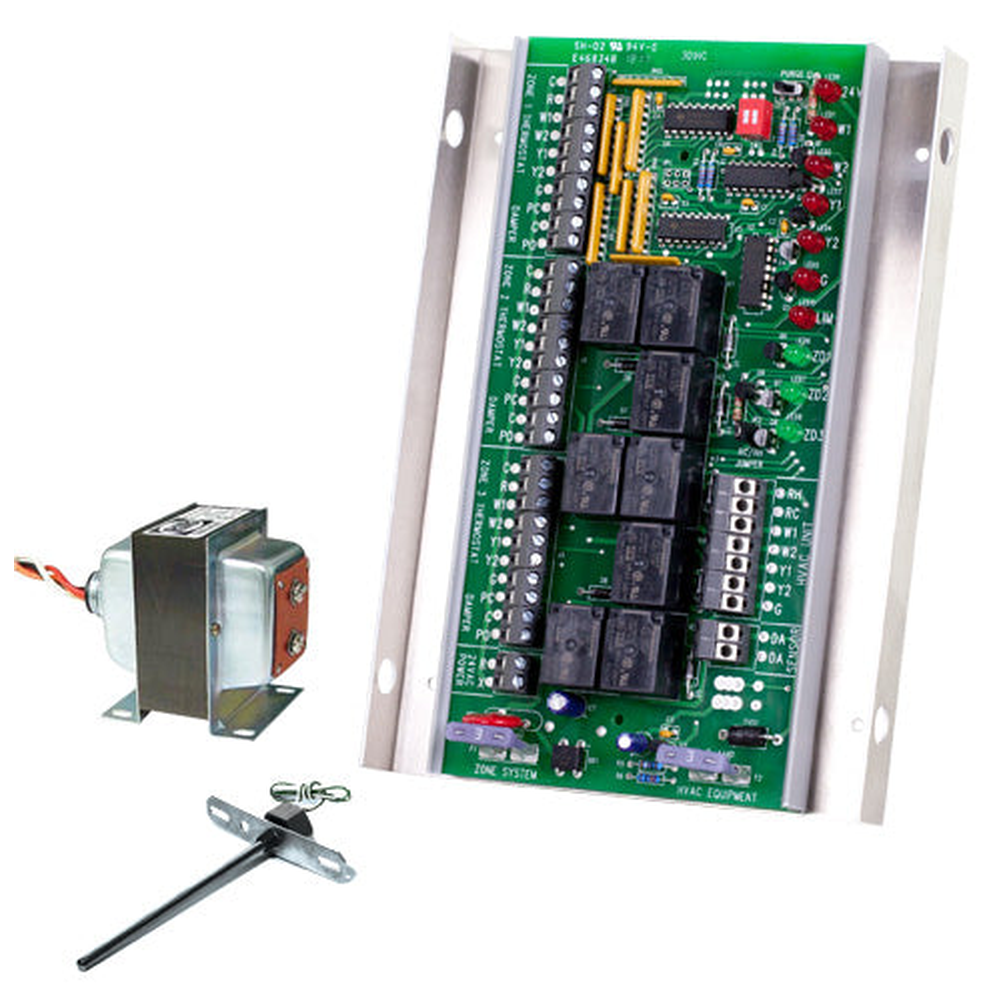

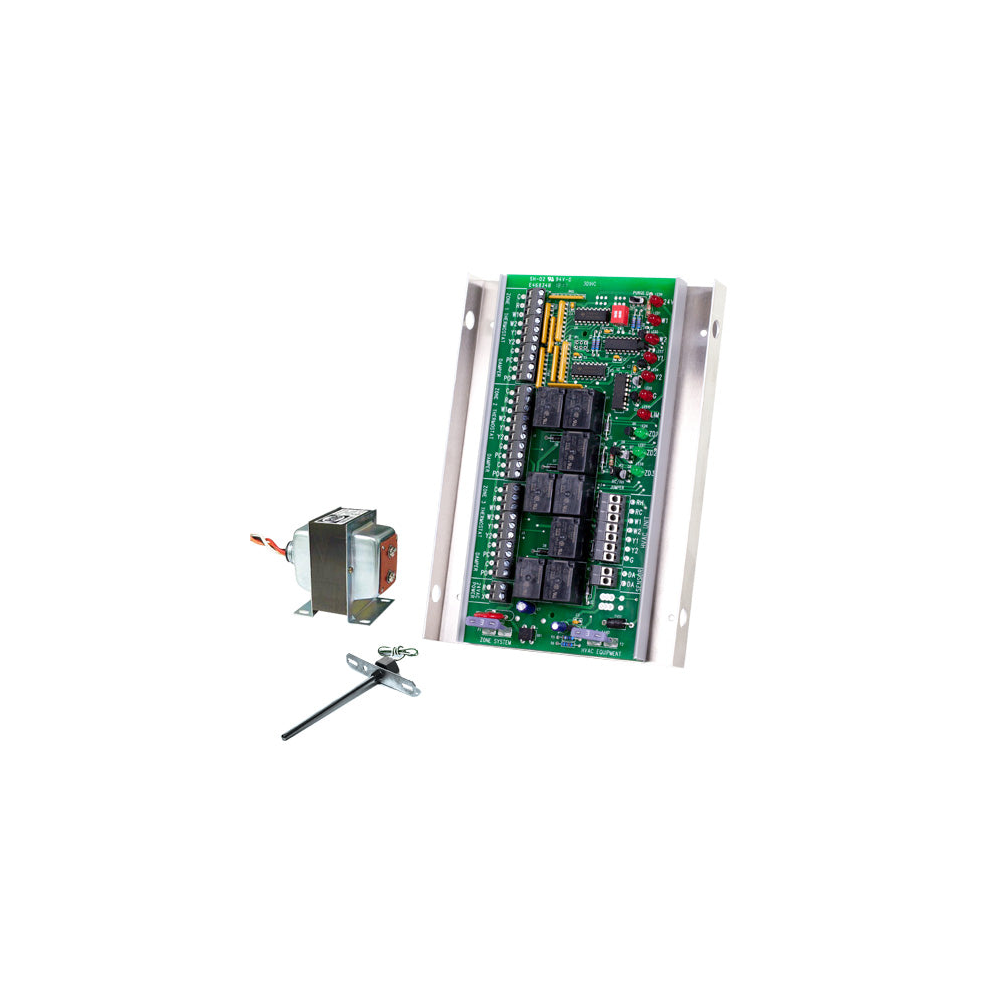

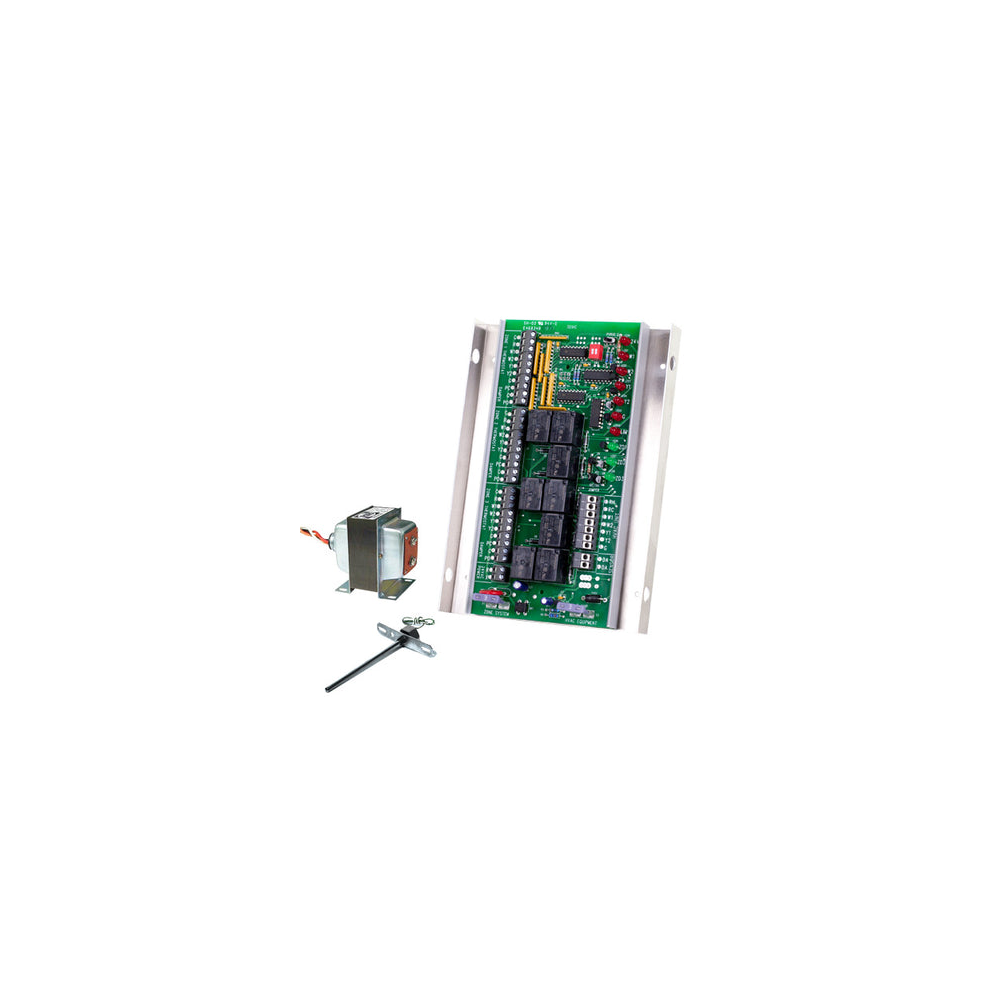

iO HVAC Controls 3-Zone 2H/2C Control Panel Kit — These panels represent the most contractor-friendly zoning solution today. The ZP2 is a single-stage heat/cool panel designed to control 2 zones in residential and light commercial applications. The two ZP3 models are designed to fit three-zone applications for single-stage, multi-stage, heat pump or dual fuel systems in residential and light commercial applications. All panels can accommodate 2 or 3 wire zone dampers.

✓ Free shipping on this item — ships from The AC Outlet.

Features & Benefits

• Features:
• Auto changeover
• First call priority with time share
• Electronic discharge air sensor (sold separately)
• LED status indication
• Independent fan control by zone
• Short cycle protection
• Works with 2 or 3 wire zone dampers
• Purge cycle option (ZP3 panels only)

Technical Specifications

• Operating Temperature: -40°F (-40°C) Min, 150°F (66°C) Max
• Height: 1.5"
• Warranty: 10 Years
• Length: 6"
• Width: 8"
• Construction: Aluminum Back Plate with Mounting Holes
• Zones: 3
• ESP / Static Pressure Control: No
• System Type: Conventional
• Stages: 2 Heat/2 Cool
• UPC: 840119900453
• Dimensions (W×H×D): 9.50" × 4.50" × 12.75"
• Product Weight: 4.05 lbs
