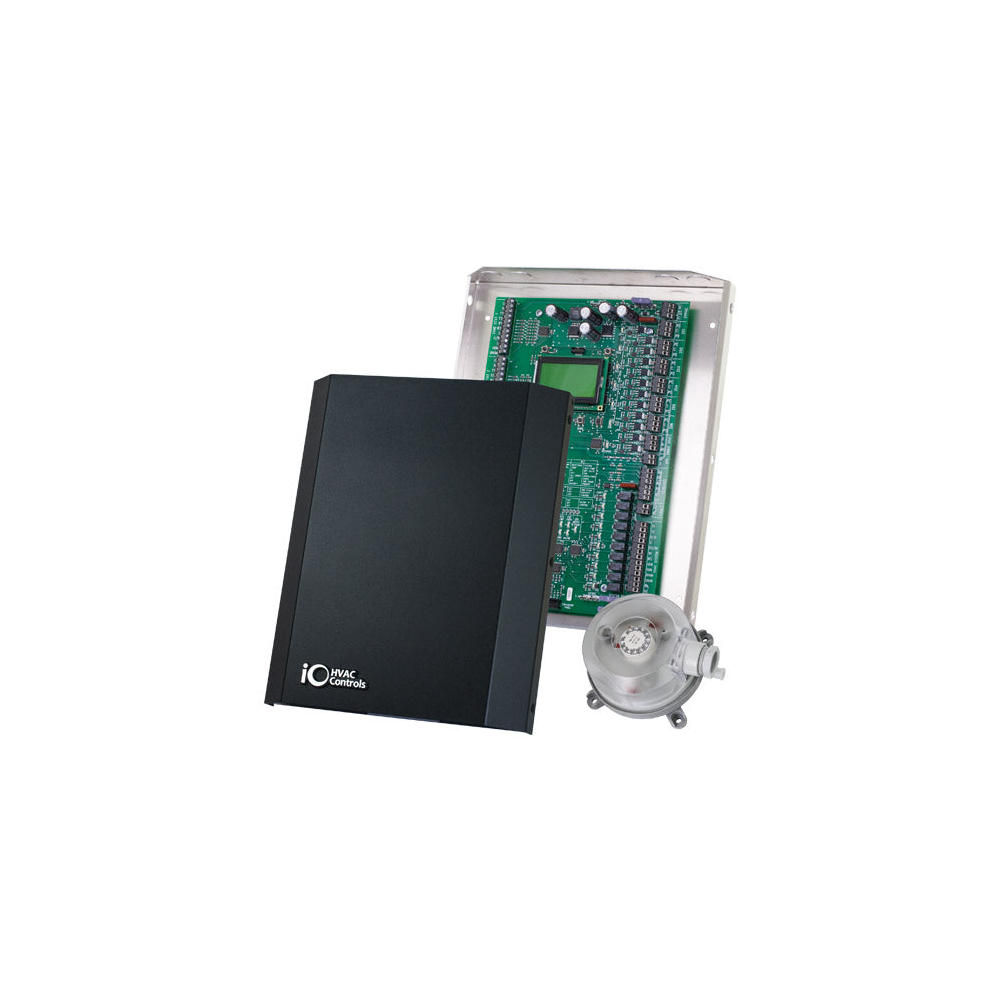

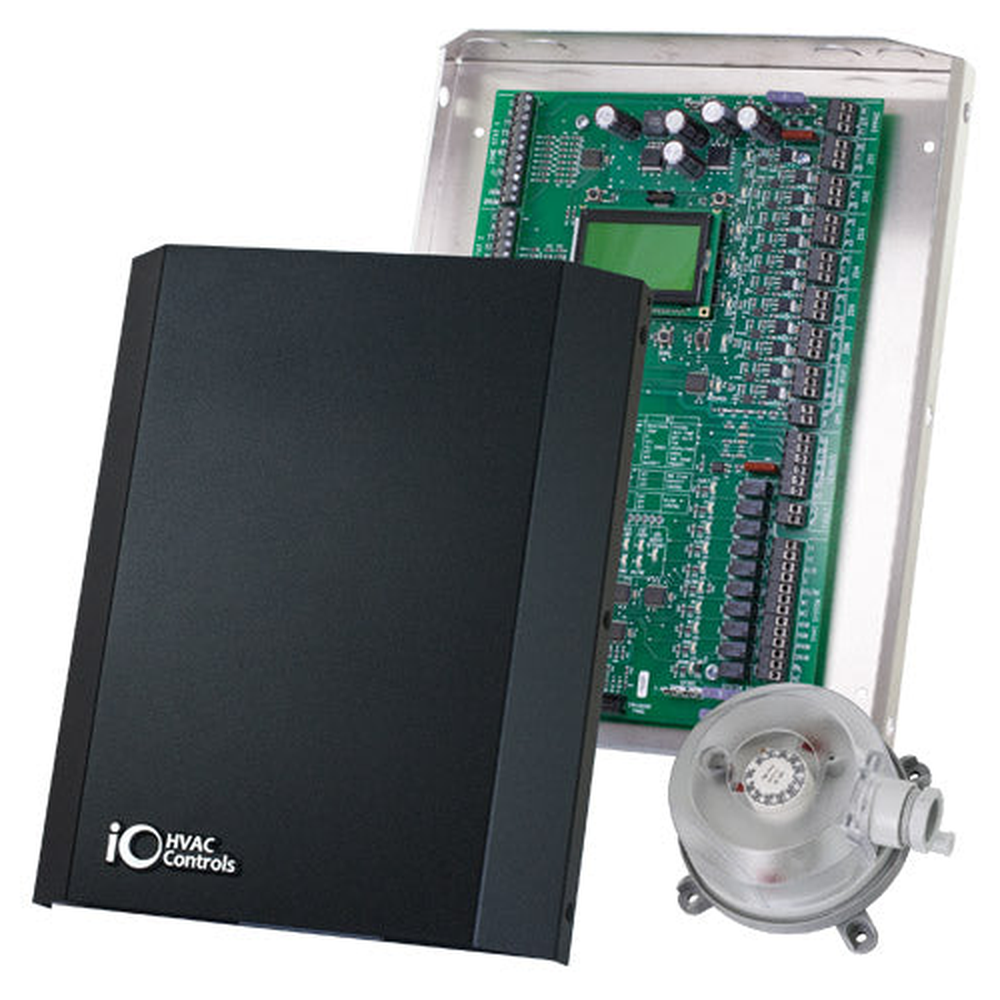

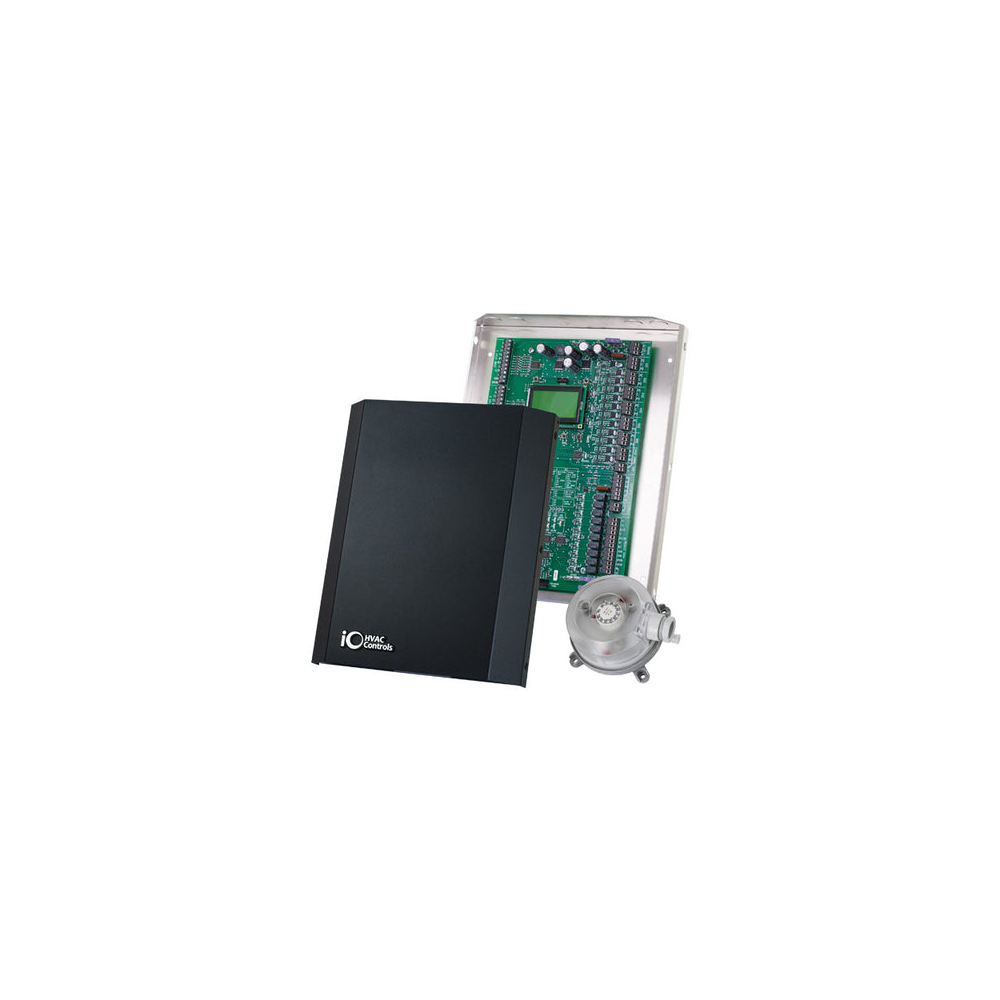

iO HVAC Controls 6-Zone Universal 3H/2C Zone Panel — The Most Contractor-Friendly Zoning System on the Market

✓ Free shipping on this item — ships from The AC Outlet.

Features & Benefits

• The Z-600™ Comfort System™ is a six zone, two-position forced air zone control panel that can be expanded to as many as 12 zones. The panel can be used with single stage, multi-stage, and heat pump equipment as well as dual fuel systems having up to 3 stages of heating and 2 stages of cooling. Slide switch system configuration makes setup quick and easy. A wide range of control options provides ultimate application flexibility.
• Unique Features
• • 6 zones, expandable to 12
• • Priority cooling or majority wins control sequence
• • 20 minute time share option
• • On-board adjustable high and low limits and high and low
• balance points
• • Staging by zone thermostat or by adjustable stage timer
• Standard Features
• • Heat/Cool, heat pump or dual fuel up to 3 heat / 2 cool
• • Gas or electric fan control
• • Choice of all zones or individual zone fan control
• • Selectable 1 minute purge cycle
• • Staging by zone thermostat or by adjustable stage timer
• • Time delay speed up mode with auto rest
• • Fused protected inputs and outputs
• • Easy-to-read dedicated wiring terminals

Technical Specifications

• Operating Temperature: -40°F (-40°C) Min, 150°F (66°C) Max
• Warranty: 10 Years
• Length: 11"
• Width: 13.5"
• Height: 2"
• Construction: Aluminum Back Plate with Mounting Holes
• Zones: 6
• ESP / Static Pressure Control: No
• System Type: Conventional, Dual Fuel, Heat Pump
• Stages: 3 Heat/2 Cool
• UPC: 840119900514
• Dimensions (W×H×D): 11.50" × 3.50" × 14.50"
• Product Weight: 3.40 lbs
