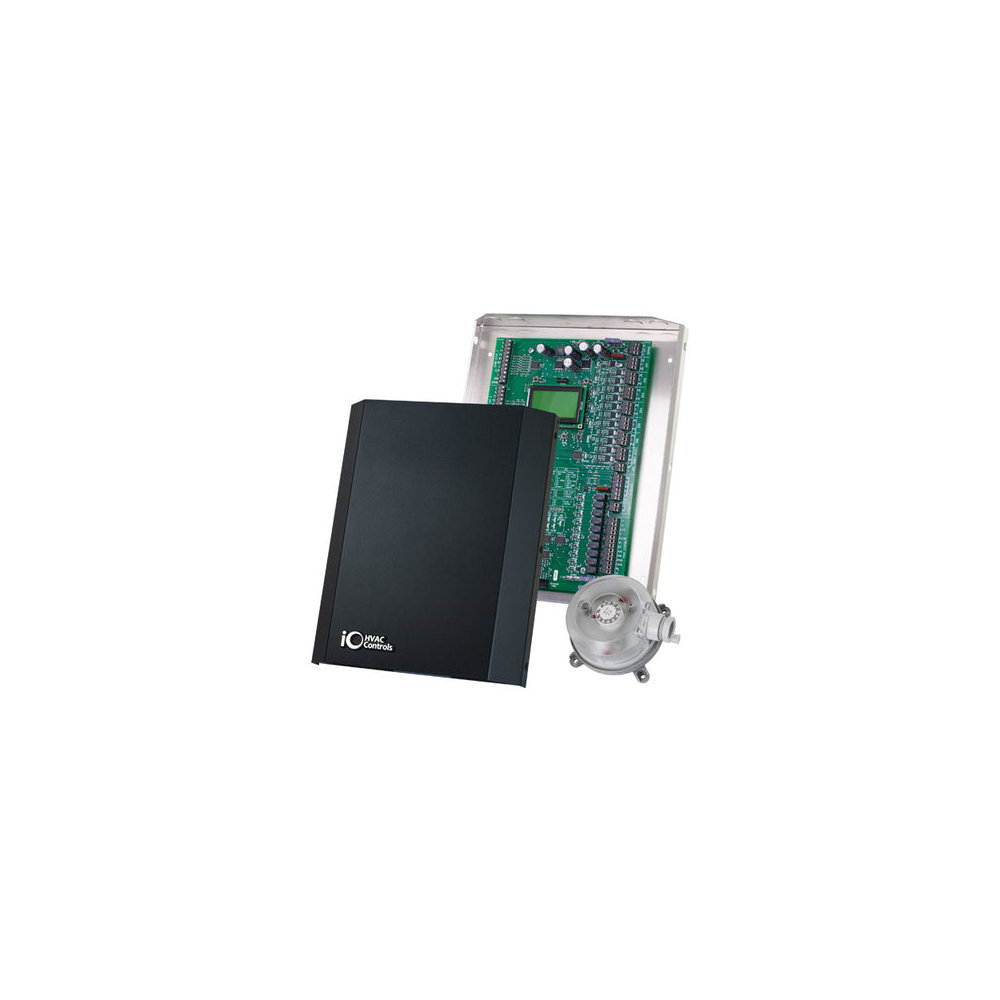

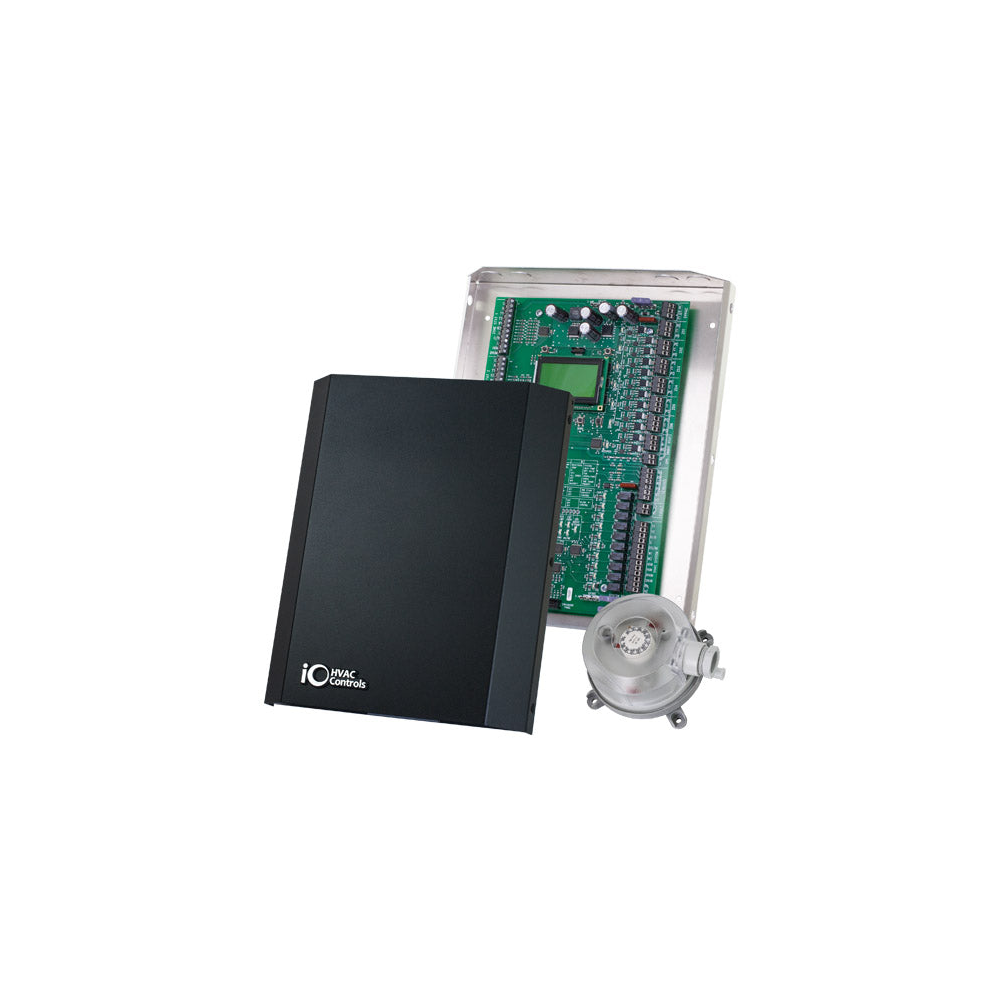

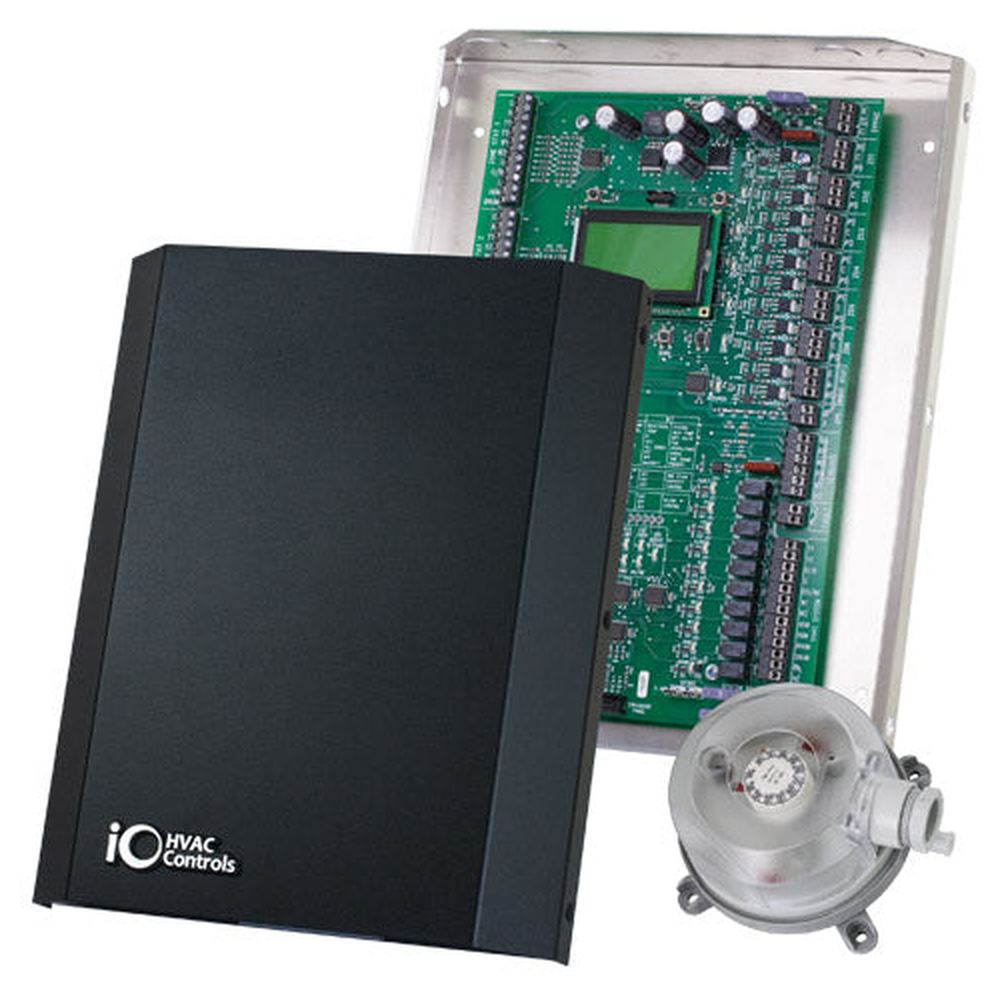

iO HVAC Controls 6-Zone Universal 4H/2C Zone Panel with ESP — The ZP6-ESP is a 6 zone panel that integrates our award winning ESP technology to completely eliminate the need to install a bypass damper. This 4H/2C zone panel comes with a static pressure sensor. The system works like any standard zone control system with one exception; a static pressure sensor continuously monitors the system static pressure. If the static pressure goes above setpoint, the ESP panel will power the non-calling zone dampers open just enough to relieve the excess pressure. Tests indicate that bleeding a small amount of conditioned air for a short time into non-calling zones has little to no impact on the zone temperature.

Enables multi-zone comfort control from a single HVAC unit, letting homeowners heat or cool individual rooms independently. Ideal for homes with varying temperature needs across different areas.

Features & Benefits

• The panel can be used with single-stage, multi-stage, heat pump and dual fuel equipment. Programmable LCD and slide switch configuration makes setup quick and easy. A wide range of control options provide ultimate application flexibility including adjustable high/low limits, adjustable high/low balance point, stage timing, capacity control and priority cooling control.

Technical Specifications

• Operating Temperature: -40°F (-40°C) Min, 150°F (66°C) Max
• Warranty: 10 Years
• Length: 11"
• Width: 13.5"
• Height: 2"
• Construction: Aluminum Back Plate with Mounting Holes
• Zones: 6
• ESP / Static Pressure Control: Yes
• System Type: Conventional, Dual Fuel, Heat Pump
• Stages: 4 Heat/2 Cool
• UPC: 840119900552
• Dimensions (W×H×D): 11.75" × 4.50" × 17.50"
• Product Weight: 4.05 lbs
