iO HVAC 6-Zone 4H/2C Control Panel Kit with ESP — The ZP6 with ESP is a 6 zone, two-position forced air zone control panel that can be expanded to as many as 12 zones. The panel can be used with single-stage, multi-stage, heat pump or dual fuel equipment with up to 4 stages of heating and 2 stages of cooling. Slide switch configuration makes setup quick and easy. This zone control system comes with built in ESP static pressure control which eliminates the need for a bypass damper when used with the standard 3-wire MD damper series. A wide range of control options provides ultimate application flexibility.

Enables multi-zone comfort control from a single HVAC unit, letting homeowners heat or cool individual rooms independently. Ideal for homes with varying temperature needs across different areas.

Features & Benefits

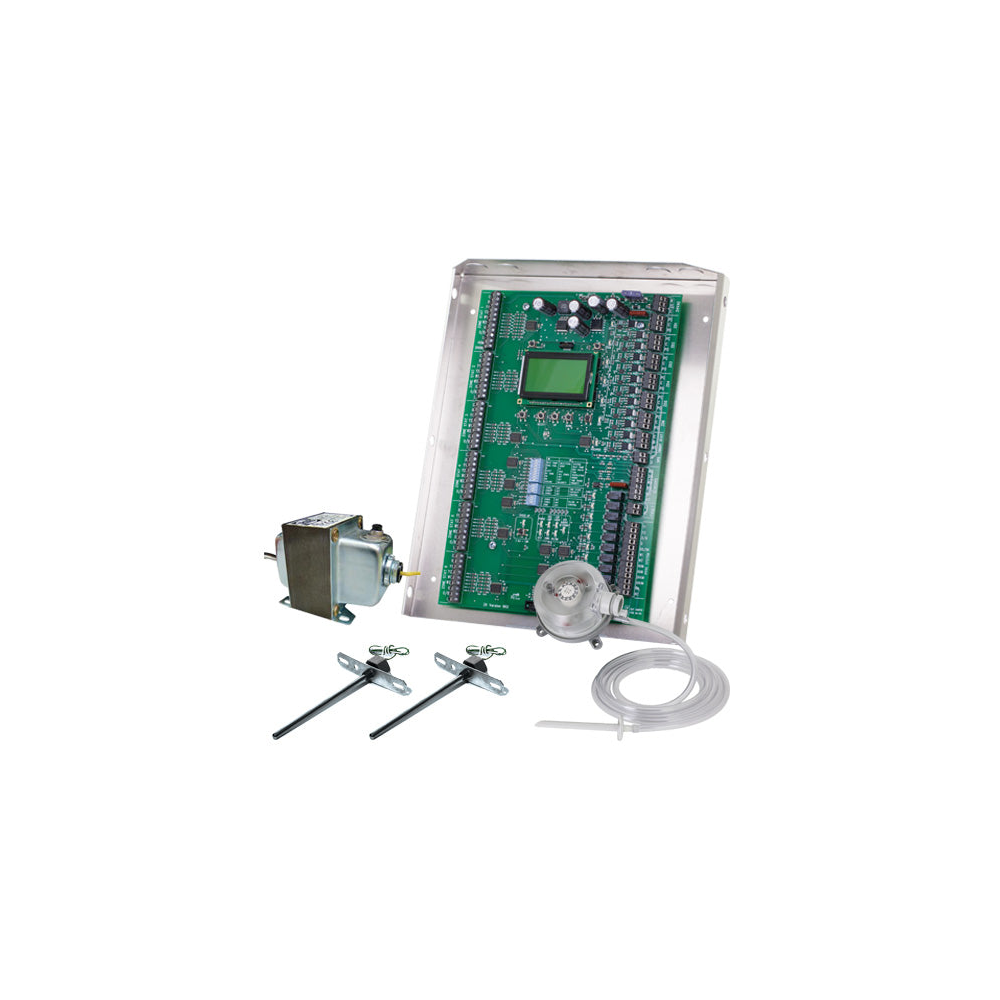

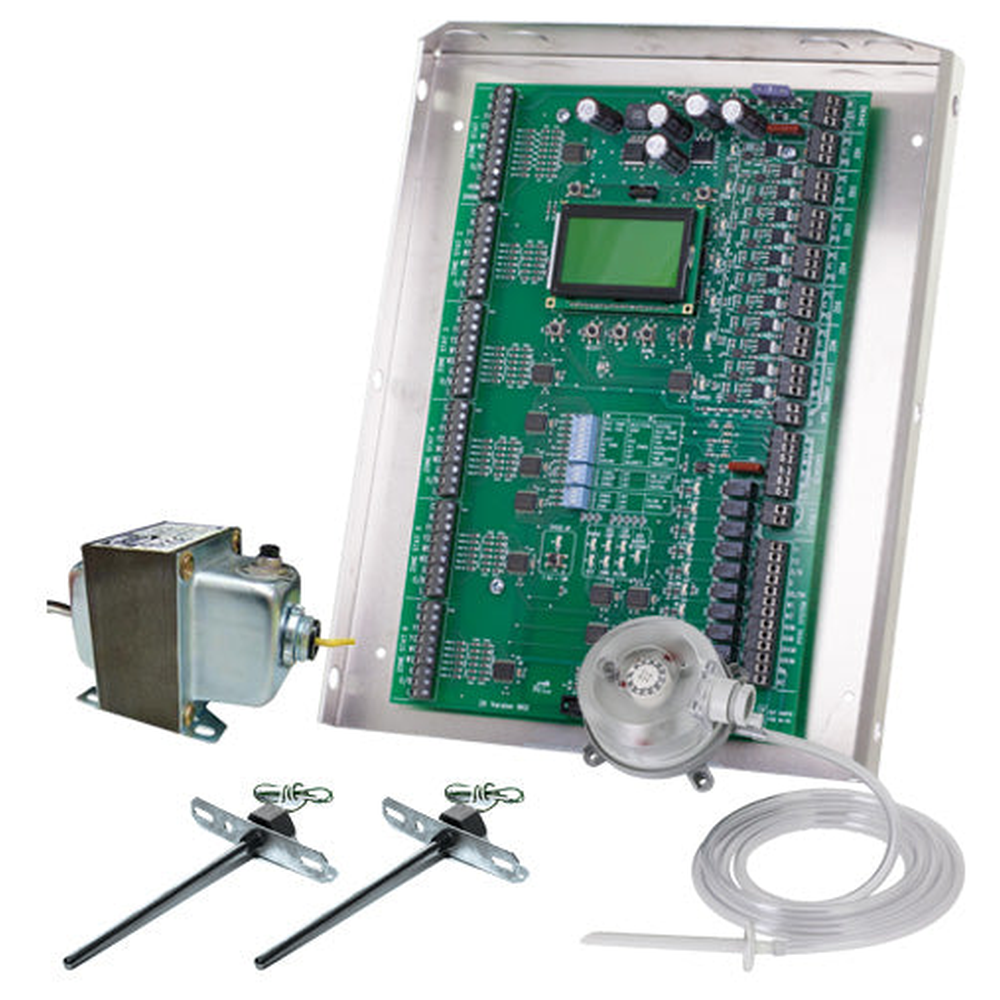

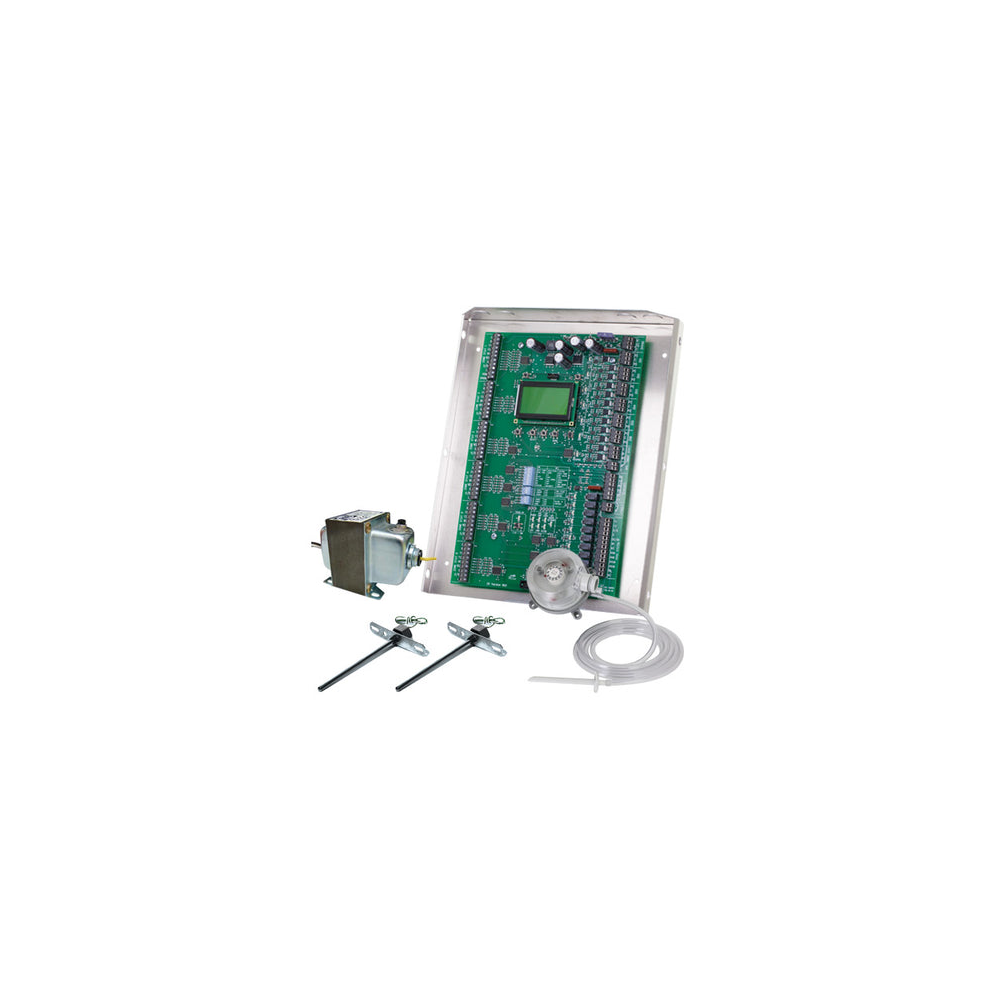

• Kit includes: Panel, static pressure sensor, 2 duct temperature sensors and 75VA transformer

Technical Specifications

• Operating Temperature: -40°F (-40°C) Min, 150°F (66°C) Max
• Warranty: 10 Years
• Length: 11"
• Width: 13.5"
• Height: 2"
• Construction: Aluminum Back Plate with Mounting Holes
• Zones: 6
• ESP / Static Pressure Control: Yes
• System Type: Conventional, Dual Fuel, Heat Pump
• Stages: 4 Heat/2 Cool
• UPC: 840119900569
• Dimensions (W×H×D): 11.50" × 4.50" × 17.75"
• Product Weight: 8.35 lbs
