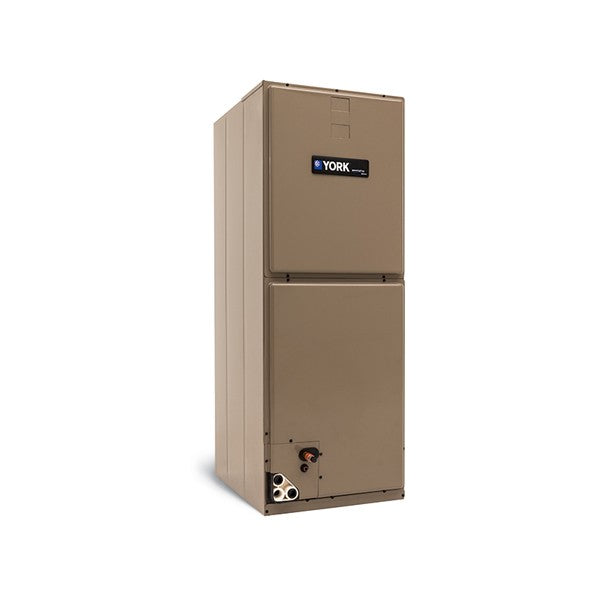

The York JHC Air Handler provides the flexibility for installation in upflow, downflow, horizontal right, or horizontal left applications. These units may be located in a closet, utility room, attic, crawl space, or basement. These versatile models may be used for cooling or heat pump operation with or without electric heat. Top or side power and control wiring, color-coded leads for control wiring, and electric heaters all combine to make the installation easy and minimize installation cost. Electric heat kits are available as field-installed accessories. An R-454B refrigerant detection system (RDS) is factory installed.

Standard Features:

• MaxAlloyTM coil Long-life aluminum coils built to deliver lasting performance, efficiency, and reliability
• Next generation even-flow distributor: Designed for balanced refrigerant flow and even coil circuit performance
• Next generation high-efficiency blower: Delivers increased airflow and reduced blower watts by 10%, using a variable speed ECM motor
• Variable speed operation Provides flexibility in application as well as upgraded system efficiency
• Two-stage operation Provides flexibility in application with single and two-stage outdoor equipment.
• Next generation insulation and gasket design Reduces thermal transmission paths and reduces sweating.
• Nine speed standard ECM blower motor Provides increased system compatibility.
• Designed for easy installation and service
• A casing size of 20.5 in., smooth sides, and rigid construction provide ease of attic access and tight applications. Front facing components, slide out blower, laser cut knock outs and integrated duct flanges shorten install time.
• Modular blower control board: The control board can be controlled with a standard (conventional) thermostat or with a HX communicating control.
• Cabinet air leakage: Less than 2% at 1 in. W.C. external static pressure when tested in accordance with ASHRAE Standard 193.
• Long lasting quality: Structural components made of post powder painted steel or galvanized steel to prevent corrosion.
• Thermostat drain pan: Positive slope for drainage to reduce cause for potential mold or contaminant
• A2L refrigerant ready: An R-454B refrigerant detection system (RDS) is factory installed.
