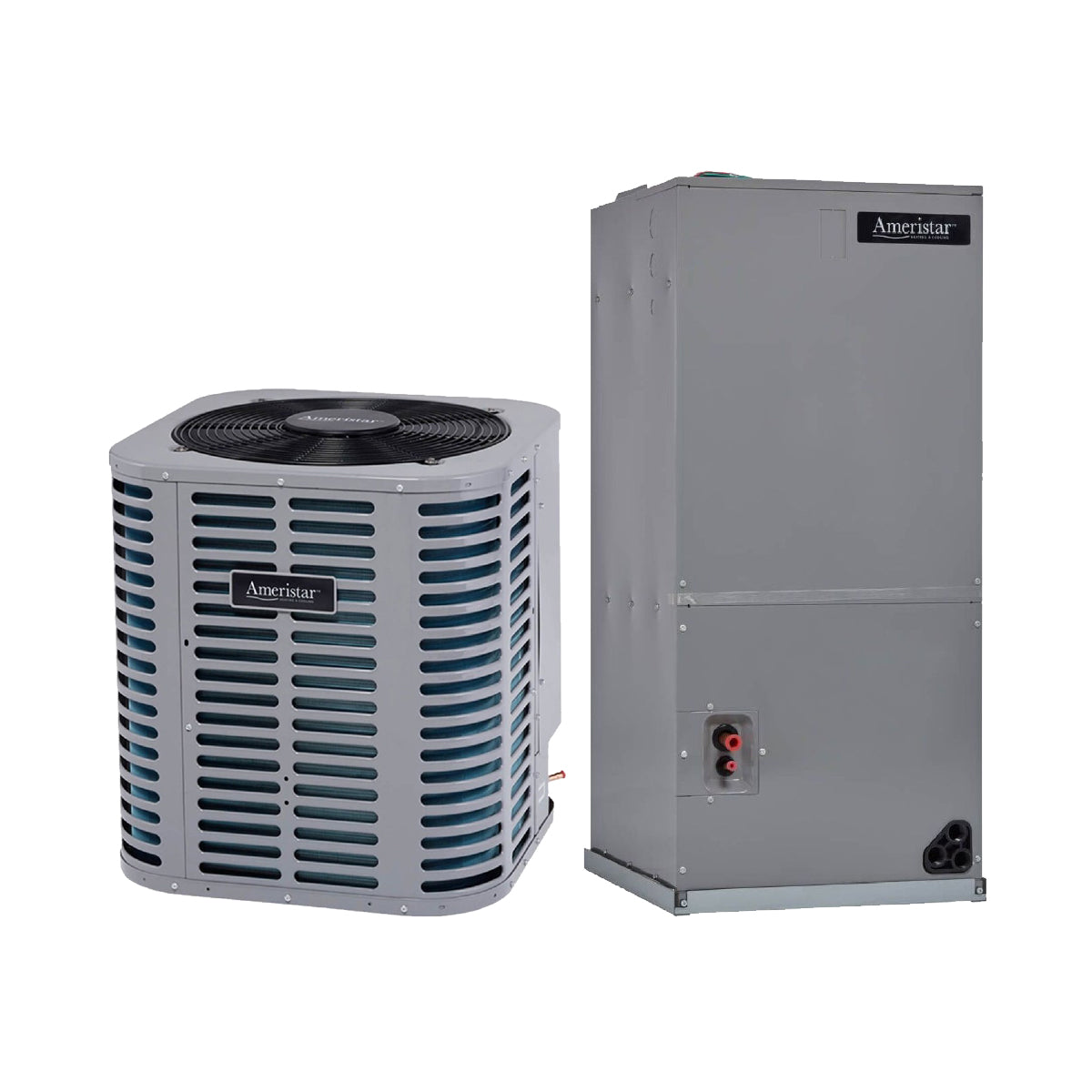

Ameristar by Trane 2 Ton 14.3 SEER2 Heat Pump System w/5Kw Heater
Ameristar by Trane 2 Ton 14.3 SEER2 Heat Pump System w/5Kw Heater
Model: M4HP5024E1000A - M4AH4E26B1A00A - 81-0828-00

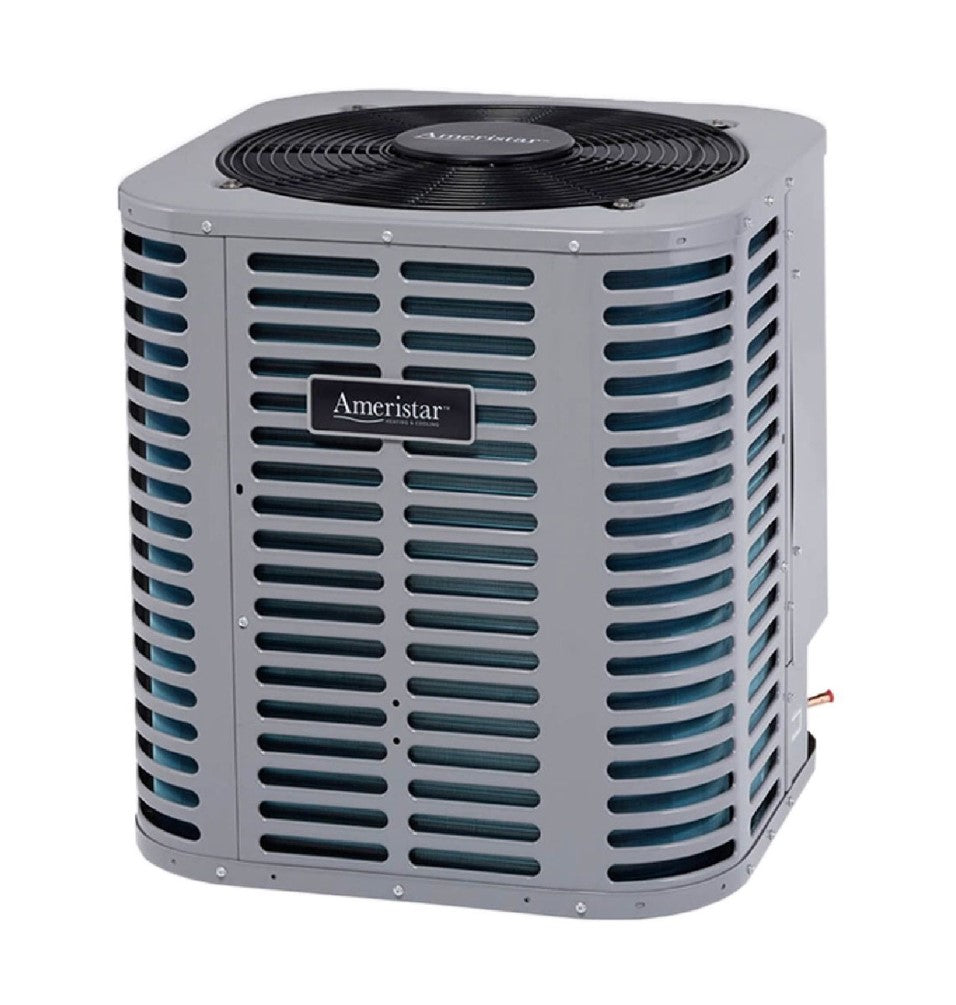

The Ameristar M4HP5 Series Heat Pump delivers efficient and dependable heating and cooling for year-round tranquility. Discover affordable, top-notch home comfort with Ameristar heat pumps - rigorously tested for quality and performance. Ameristar heat pumps offer efficient, long-lasting heating and cooling with strong components and whisper-quiet operation.
Standard Features:
- 1.5 - 5.0 ton models available
- Galvanized steel cabinets with powder painted for 1000 hours salt spray test
- The optimized compact design for easier transportation and save your installation space
- ETL certified for safety and AHRI listed for efficiency

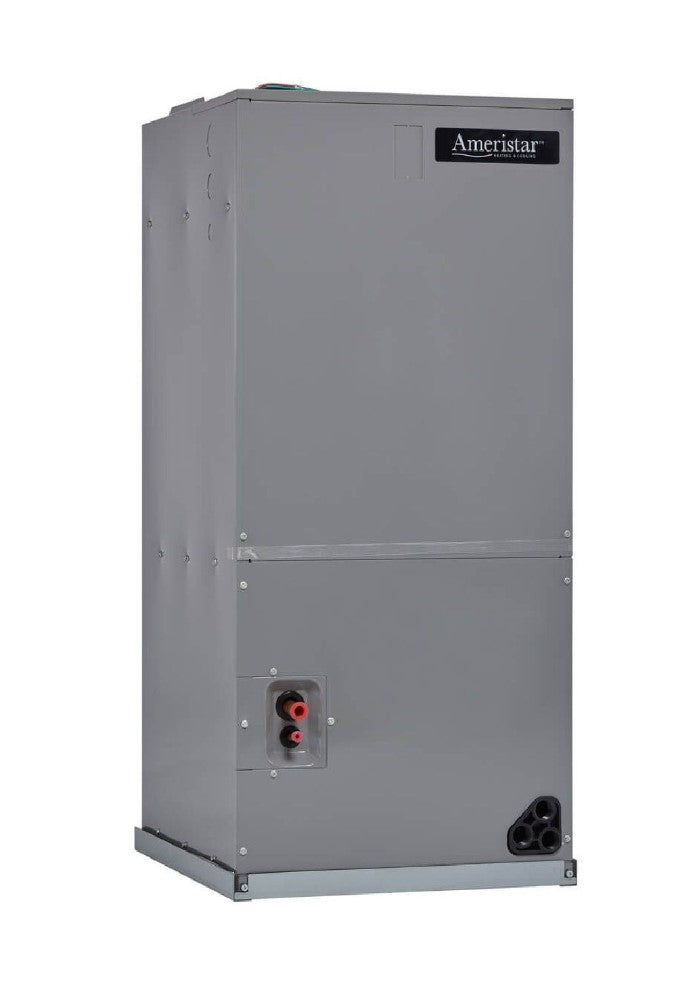

The Ameristar A4AH4 air handler boasts quiet, energy-efficient operation and long-lasting durability. Built-in air flow helps the air handler control indoor air circulation for exceptional control, energy efficiency, and performance. Experience ultimate home tranquility with our air handler - featuring fully insulated, galvanized steel cabinet for whisper-quiet function and long-lasting durability.
Standard Features:
- All-aluminum coil
- Factory-installed flow control to support ratings
- Fully insulated galvanized steel cabinet
- Multi-speed fan motors
- Assembled in Vidalia, Georgia
| Model Number (s) | M4HP5024E1000A - M4AH4E26B1A00A - 81-0828-00 |
| Brand | Ameristar by Trane |
| Type | Heat Pump |
| Ton | 2.0 Ton |
| SEER | 14.3 |
| Cooling Btu | 24,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Outdoor Unit Height (Inches) | 24 15/16 |
| Outdoor Unit Width (Inches) | 28 |
| Outdoor Unit Depth (Inches) | 28 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| AHRI Certificate # | 210443050 |
| UPC # | 633190019257 |
| Heating Btu | 24,000 |
| Blower | Multi-Speed |
| Indoor Unit Depth (Inches) | 20 1/2 |
| Indoor Unit Width (Inches) | 20 1/2 |
| Indoor Unit Height (Inches) | 41 3/8 |
| Outdoor Unit Height (Inches) | 24 15/16 |
| Outdoor Unit Width (Inches) | 28 |
| Outdoor Unit Depth (Inches) | 28 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| AHRI Certificate # | 210443050 |
| UPC # | 633190019257 |
| Heating Btu | 24,000 |
| Blower | Multi-Speed |
| Indoor Unit Depth (Inches) | 20 1/2 |
| Indoor Unit Width (Inches) | 20 1/2 |
| Indoor Unit Height (Inches) | 41 3/8 |
