PLEASE BE ADVISED This is highly specialized HVAC equipment and should only be purchased by or after consulting with a licensed technician. The AC Outlet cannot be held liable for any equipment that has been purchased incorrectly. PLEASE NOTE: The BTU capacity of a Multi-Zone system is measured by the sum of ALL AIR HANDLERS, not by the rated capacity of the condenser.

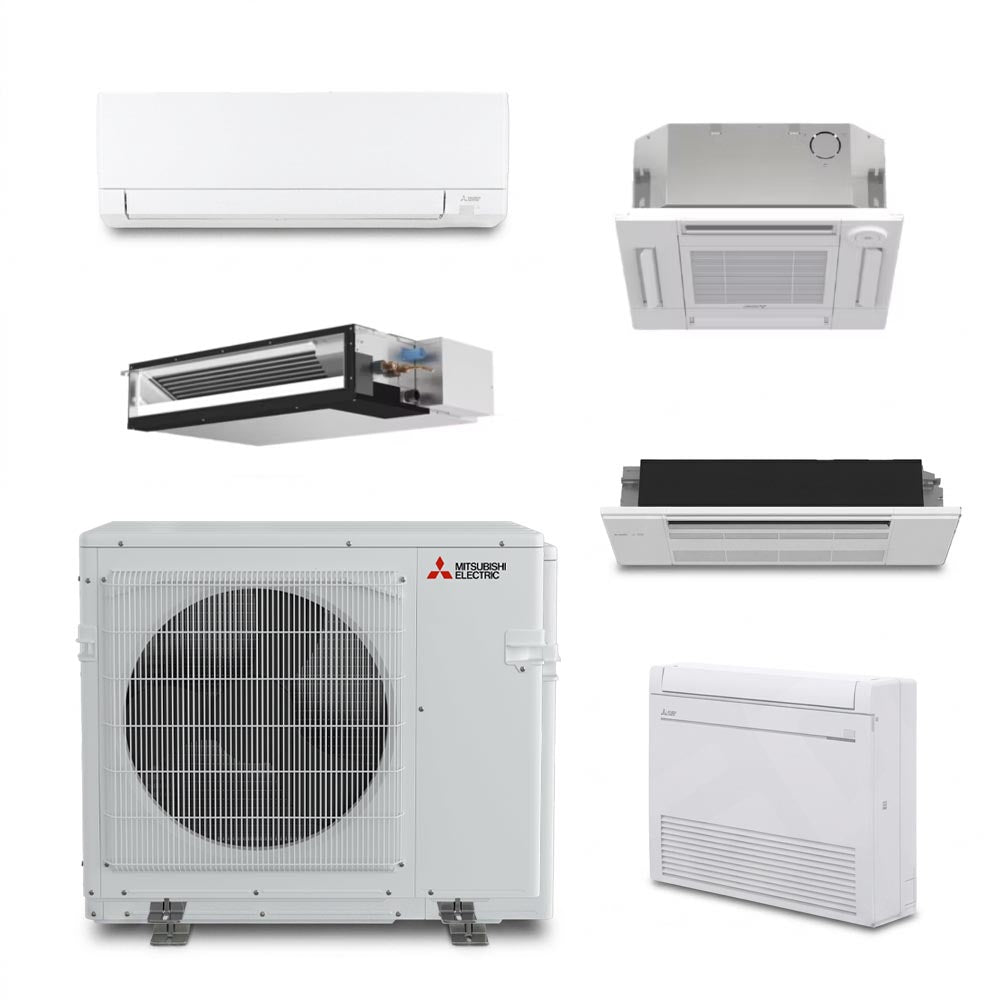

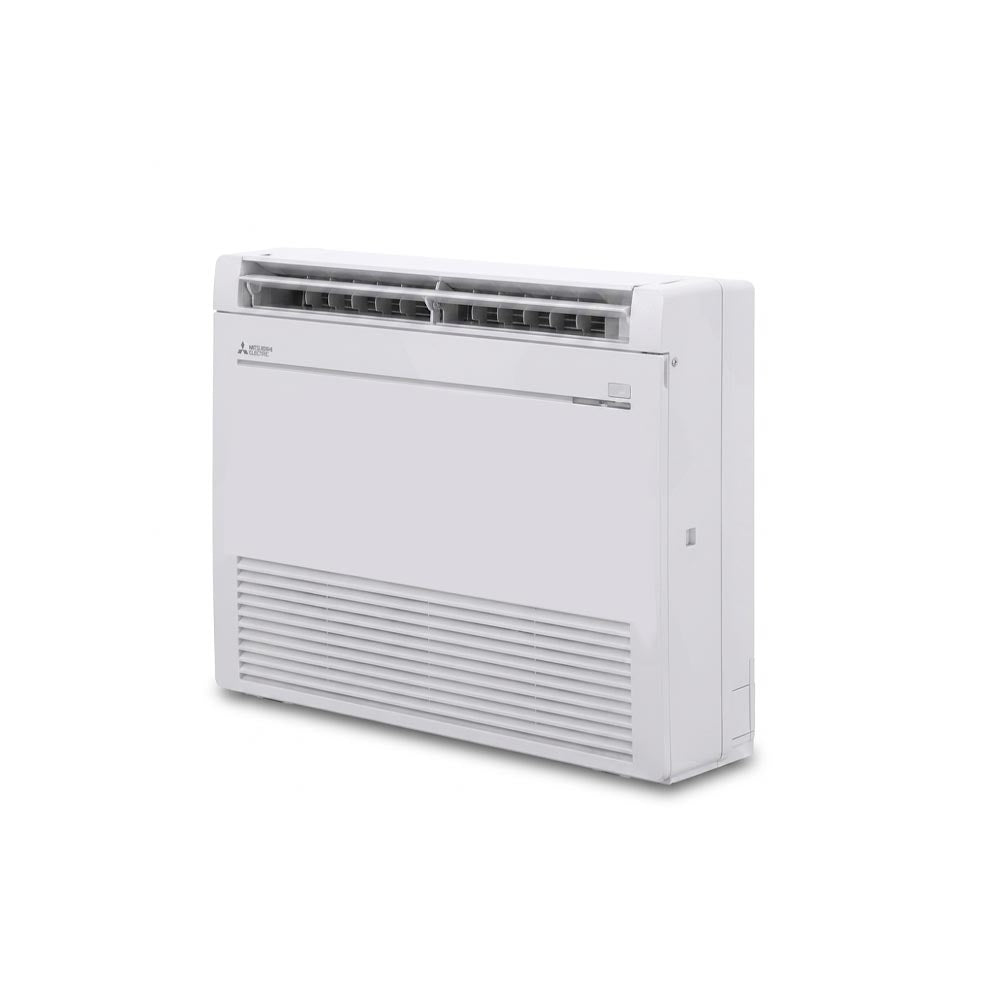

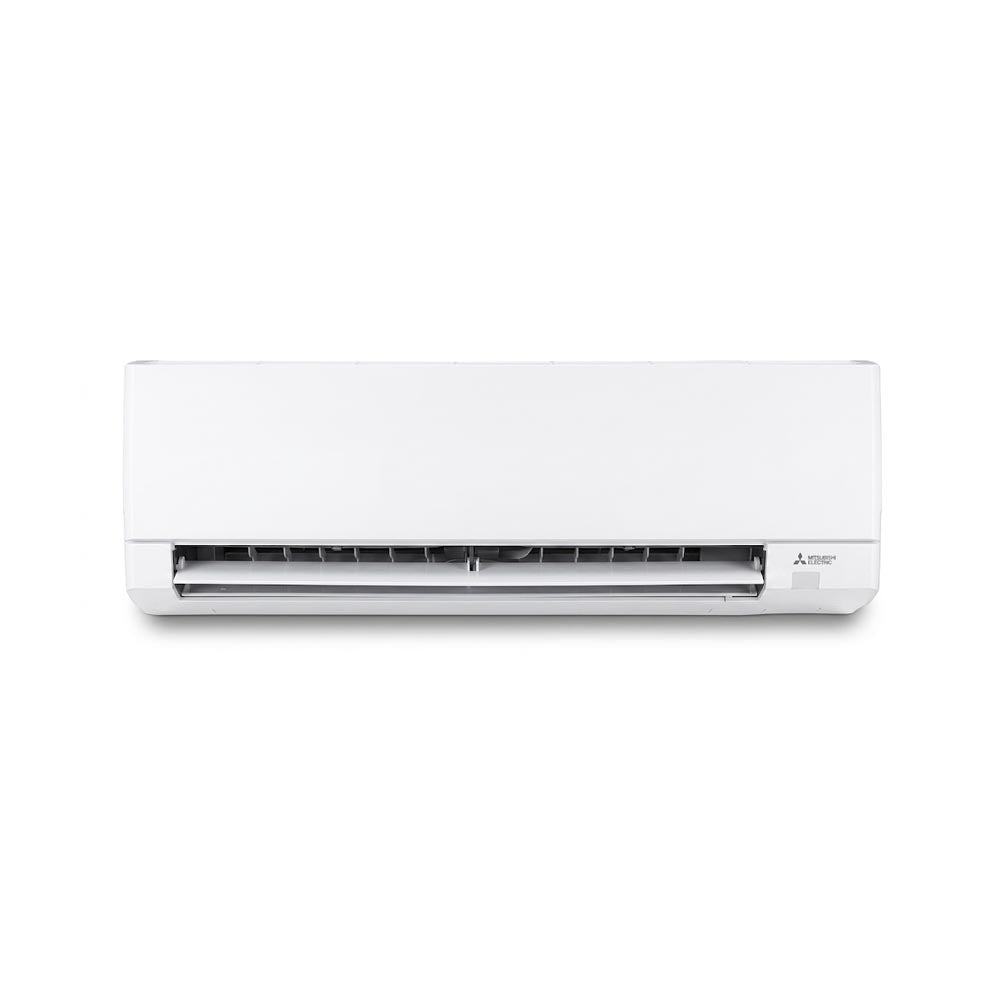

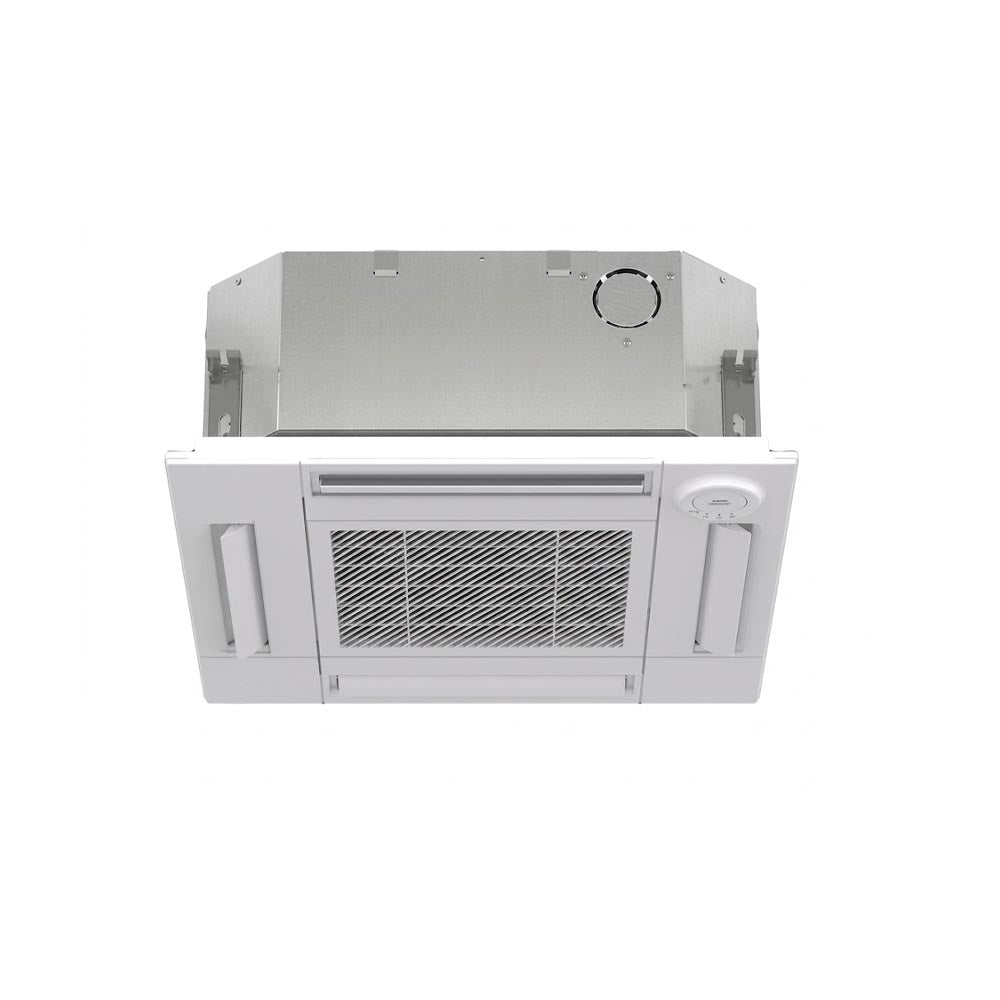

The Mitsubishi MXZ-2D20NL Mini Split Heat Pump System is an advanced dual-zone comfort solution engineered for homeowners and licensed contractors requiring high-performance heating and cooling in a compact footprint. As a part of the M-Series line, the MXZ-2D20NL condenser allows for the connection of up to two indoor air handlers to a single outdoor unit, providing a streamlined installation that preserves outdoor space. This system offers maximum versatility, allowing you to mix and match various indoor styles—including wall-mounted, floor-standing, or ceiling cassette units—to achieve localized comfort in two distinct areas of your property.

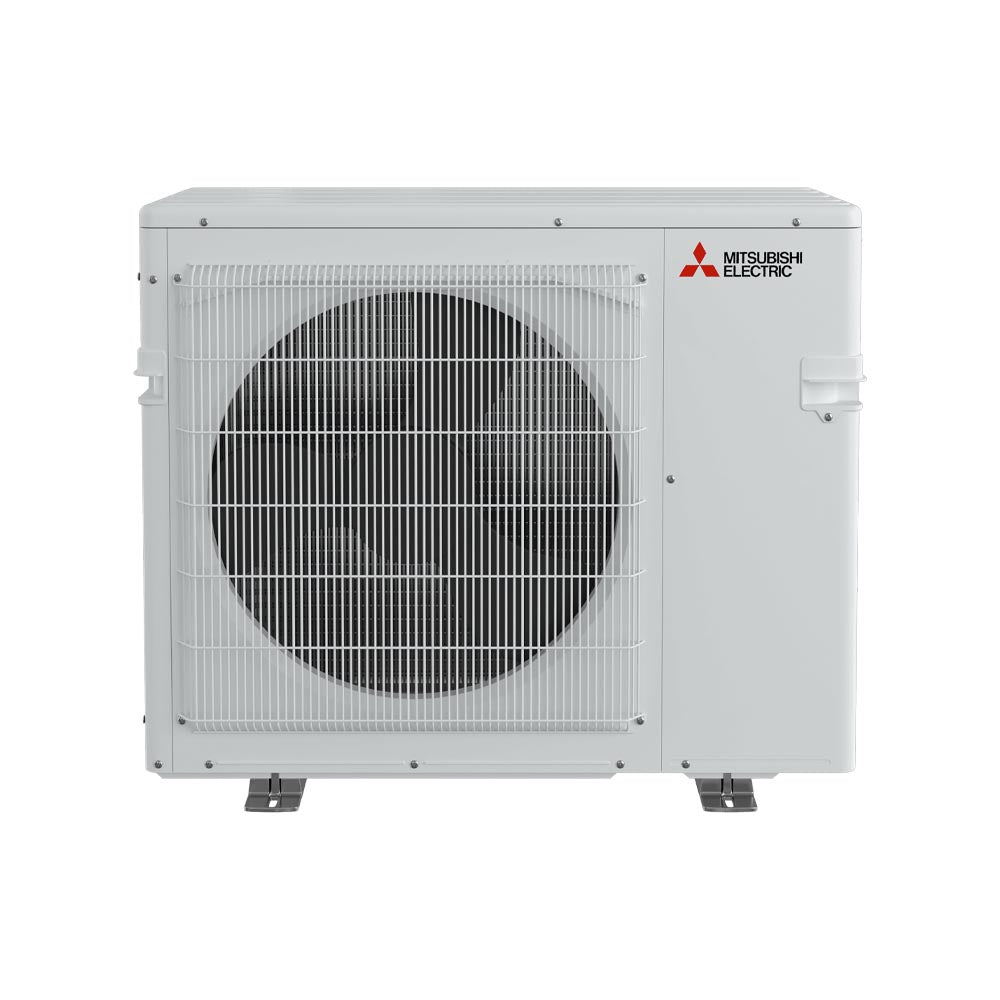

Operation Performance & Outdoor Unit Specs:

• Supports connection of 2 indoor units.
• Minimum connected capacity: 12,000 BTU.
• Maximum connected capacity: 26,000 BTU.
• Equipped with INVERTER-driven compressor technology for precise energy management.
• True independent zone control enables high-efficiency operation tailored to the specific needs of each room.

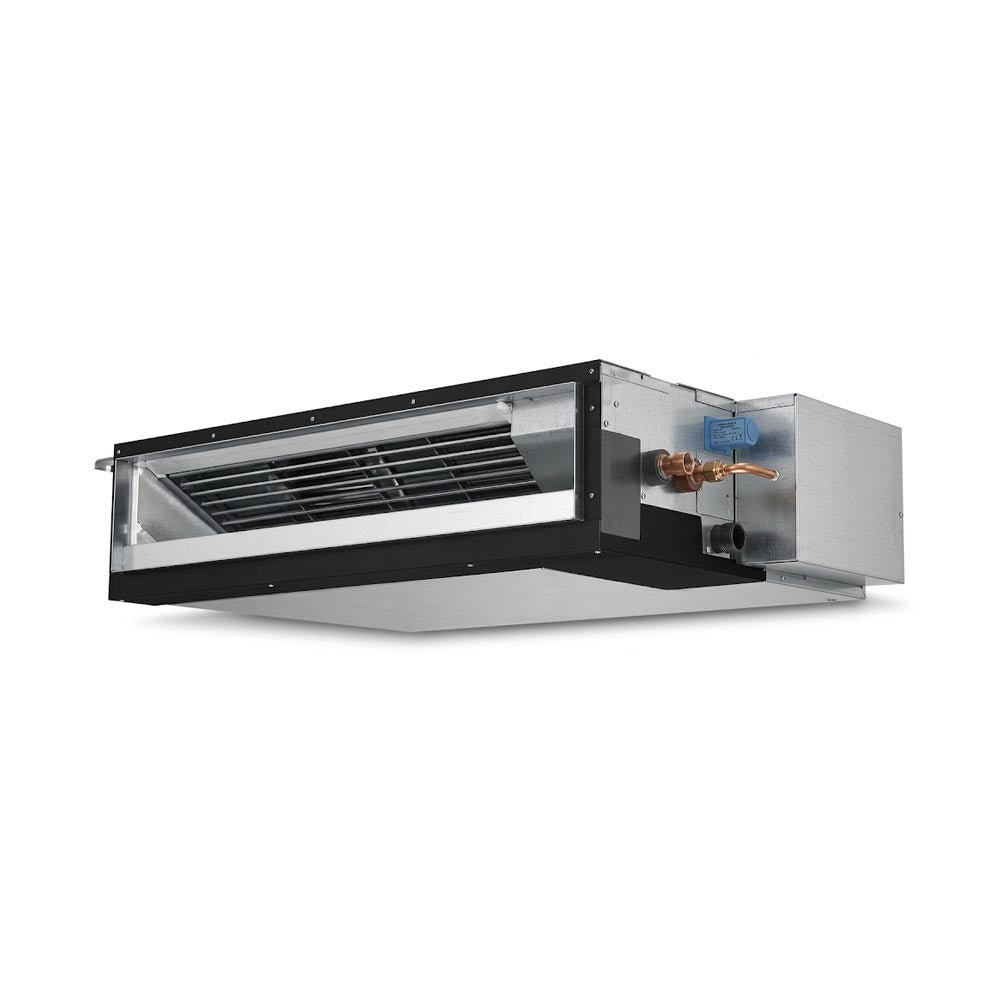

• Compatible with all-ducted, all-non-ducted, or mixed-style indoor unit configurations.

SEER Ratings Based on Indoor Unit Style:

• All Ductless: Up to 18.5 SEER
• All Ducted: 15.5 SEER
• Mixed Configuration: 17.0 SEER

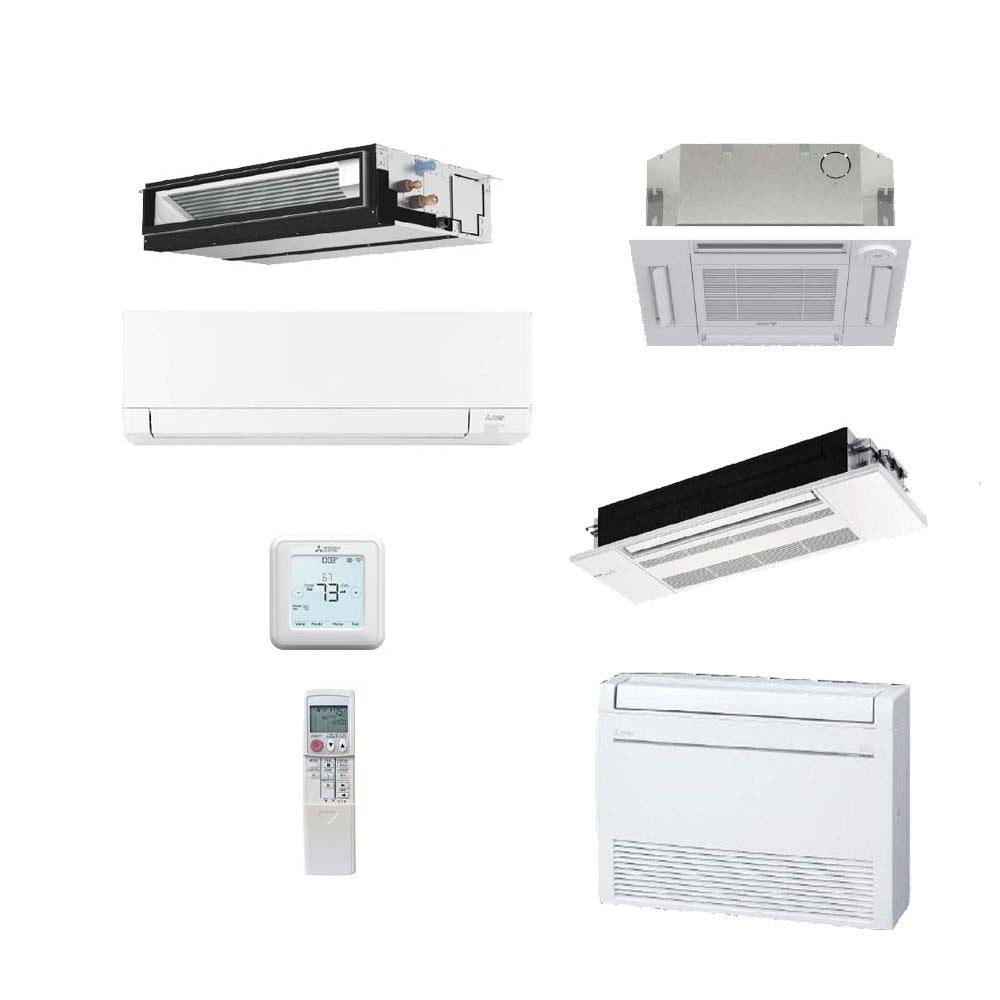

Please Read Regarding Controls & Thermostats:

• Wireless Remote Controllers Included: MSZ-GL, MSZ-FS, and MFZ-KJ indoor units.
• Wireless Remote Controllers NOT Included: SEZ-KD, SLZ-KF, and PEAD units.
• Required Controls: A wired or wireless Wall Controller (such as the MHK2) must be purchased separately for SEZ, SLZ, and PEAD indoor units.
