MRCOOL 36,000 Btu 24 SEER2 Olympus 4th Gen 3-Zone Ductless Mini Split System - 9K-12K-24K (Not DIY)
MRCOOL 36,000 Btu 24 SEER2 Olympus 4th Gen 3-Zone Ductless Mini Split System - 9K-12K-24K (Not DIY)
Model: MULTI536HP230CO - O09HPWMAH230CO - O12HPWMAH230CO - O24HPWMAH230CO
Couldn't load pickup availability
The MRCOOL® Olympus 4th Gen 36,000 BTU 24 SEER2 3-zone ductless mini split heat pump system pairs one multi-zone condenser with one 9,000 BTU wall-mounted air handler, one 12,000 BTU wall-mounted air handler and one 24,000 BTU wall-mounted air handler to deliver individualized comfort across three separate zones. Professionally installed (not a DIY system), it provides efficient year-round heating and cooling using eco-friendly R-454B refrigerant with built-in Wi-Fi control.

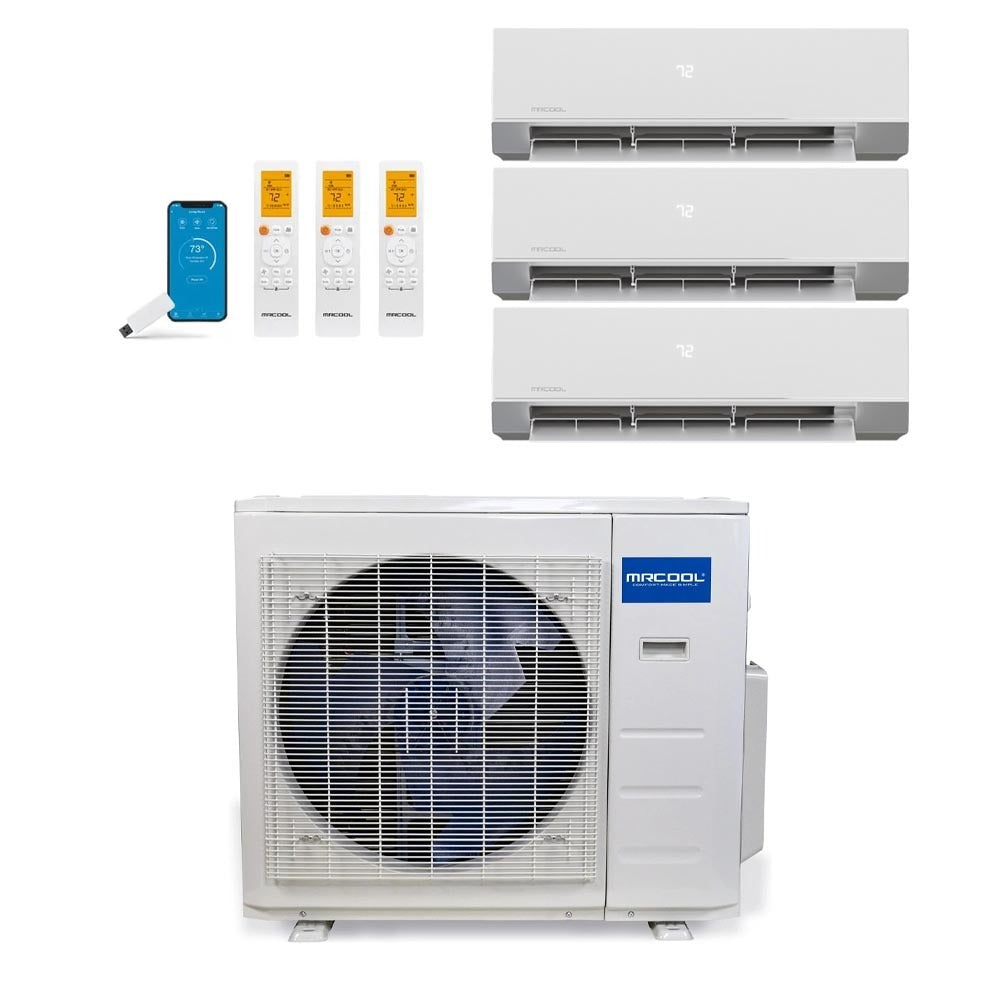

System Includes:

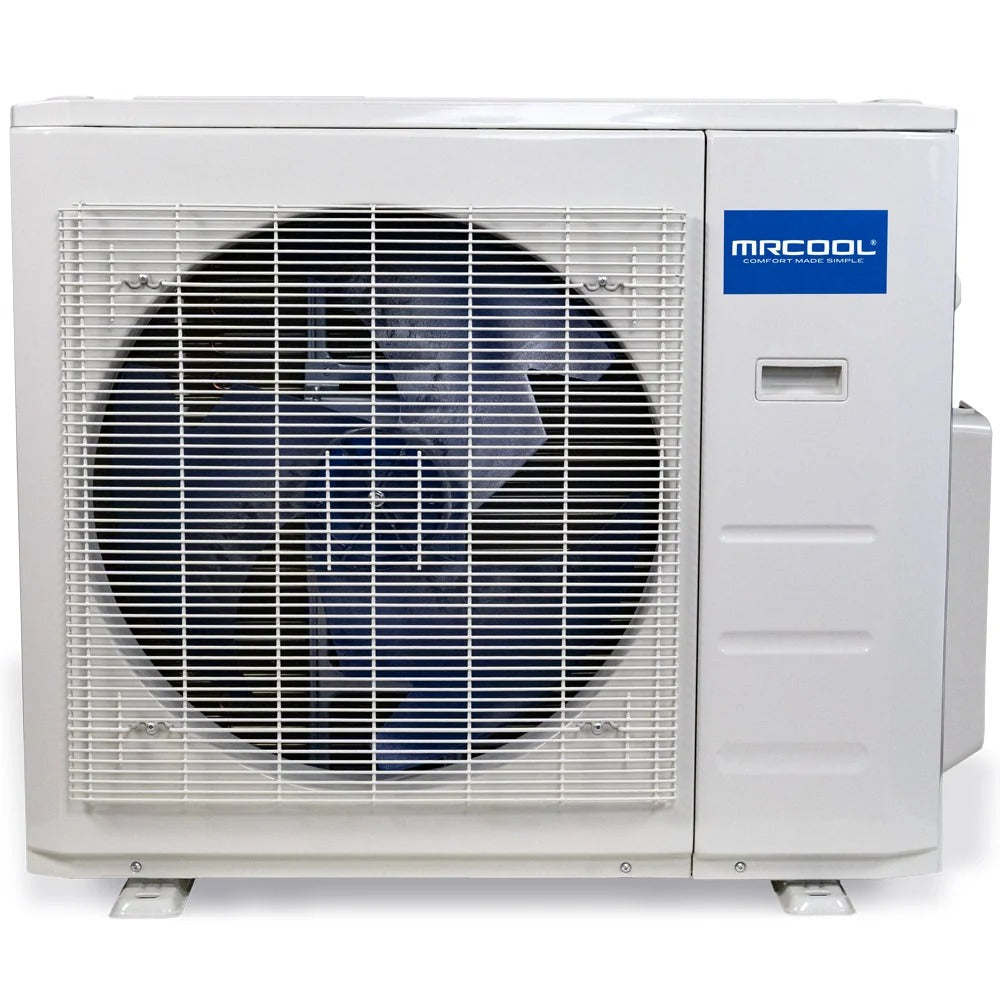

- 1 × MRCOOL Olympus 4th Gen 36,000 BTU multi-zone heat pump condenser

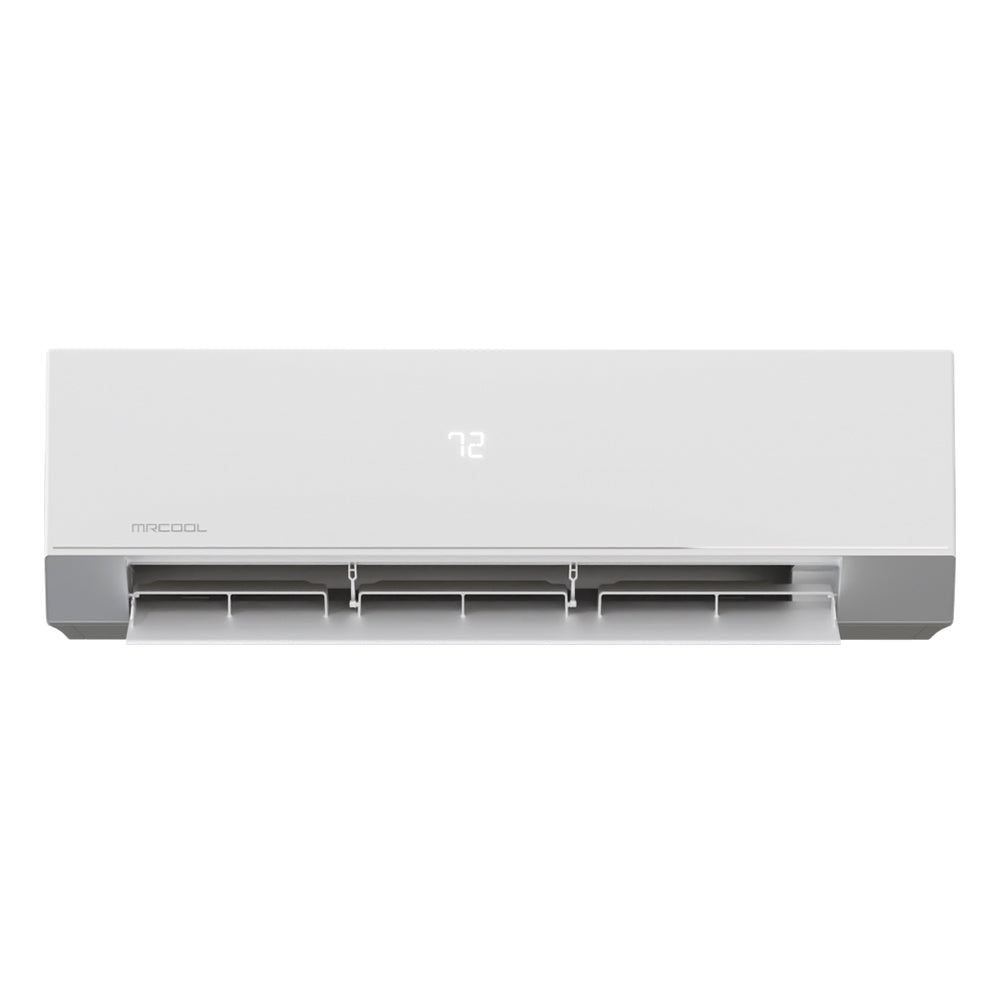

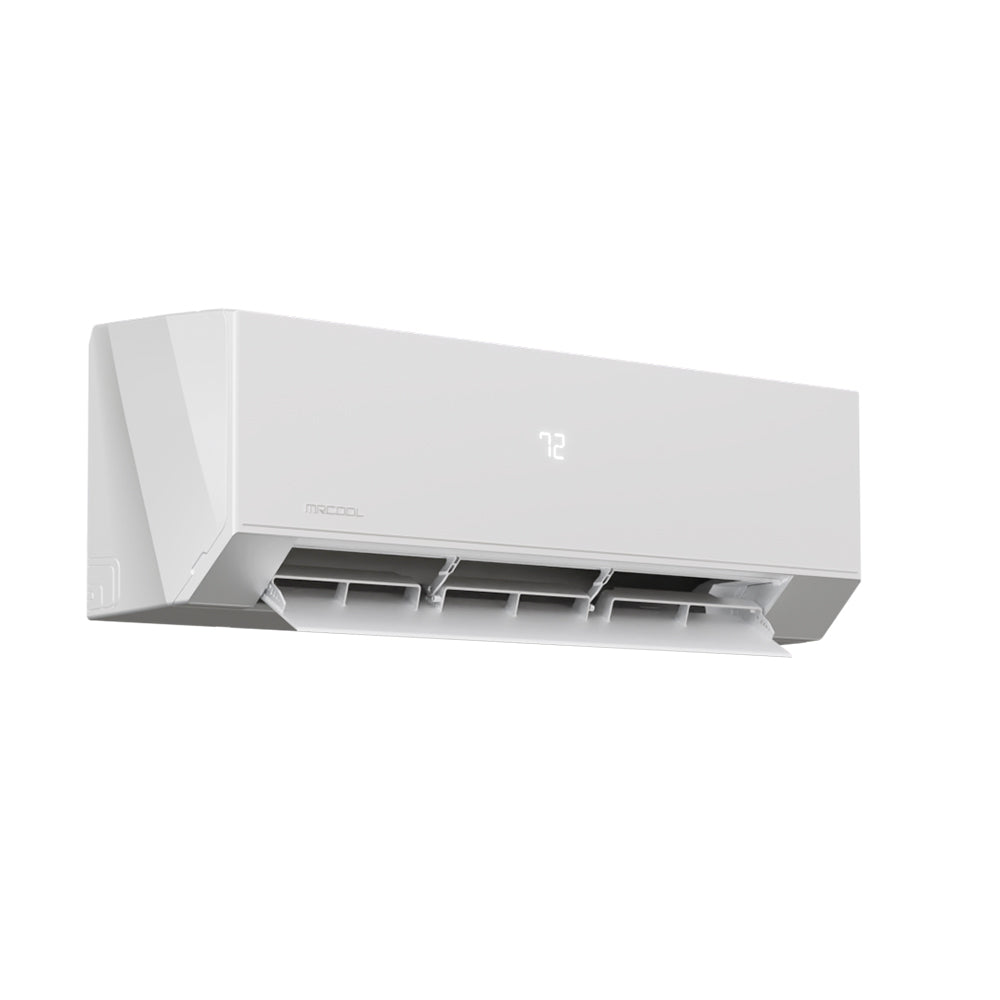

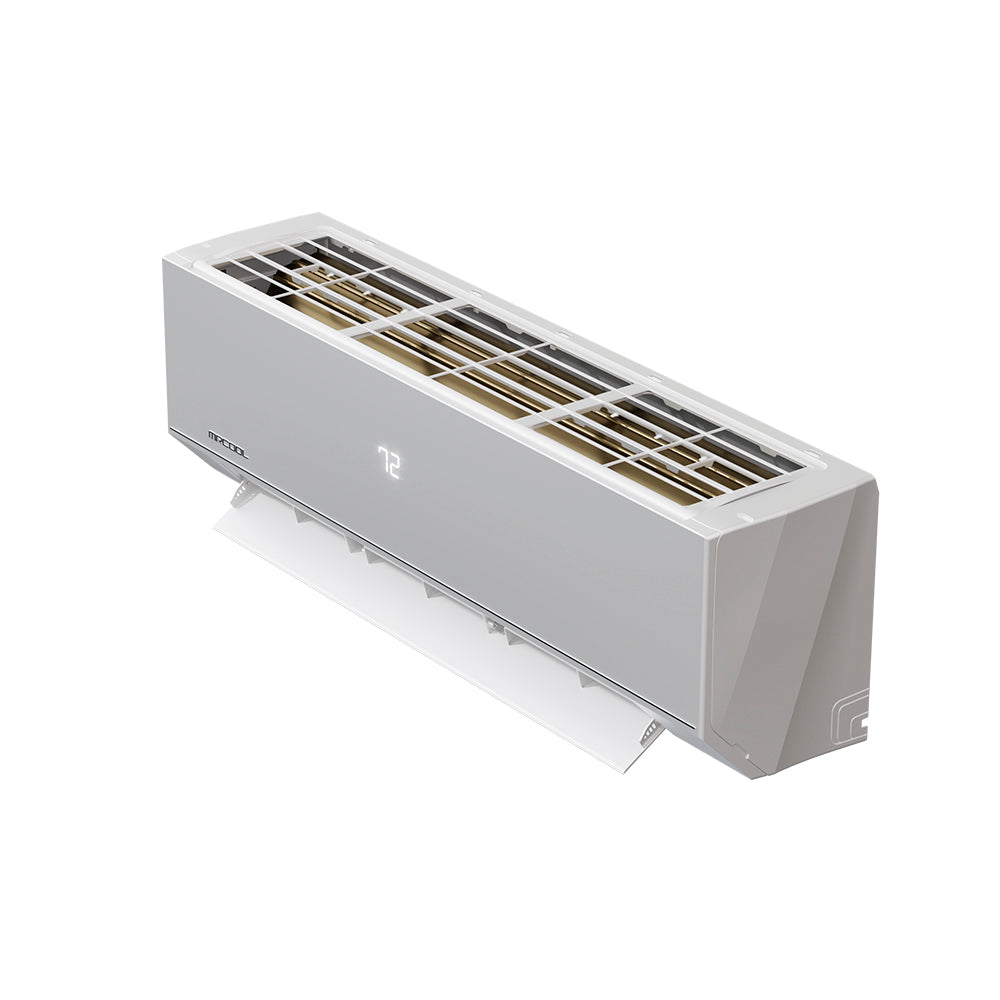

- 1 × MRCOOL Olympus 4th Gen 9,000 BTU wall-mounted air handler
- 1 × MRCOOL Olympus 4th Gen 12,000 BTU wall-mounted air handler
- 1 × MRCOOL Olympus 4th Gen 24,000 BTU wall-mounted air handler
Features:
- Up to 24 SEER2 multi-zone DC inverter heat pump
- Independent temperature control for each of the 3 zones
- ENERGY STAR® Certified and AHRI Certified
- R-454B refrigerant — eco-friendly with a lower Global Warming Potential (GWP)
- Built-in Wi-Fi — control via the MRCOOL® SmartHVAC app; works with Alexa & Google Assistant
- Reliable heating in outdoor temperatures as low as 5°F
- UL, CSA, and ETL Listed
- Warranty: 7-year compressor and 5-year parts (when registered and installed by a licensed professional)
- Professional installation required (not a DIY system)
| Model Number (s) | MULTI536HP230CO - O09HPWMAH230CO - O12HPWMAH230CO - O24HPWMAH230CO |
| Brand | MrCool |
| SEER | 24 |
| Cooling Btu | 36000 |
| Compressor Stage | Inverter |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 64.5 |
| Refrigerant Type | R-454B |
| Outdoor Unit Height (Inches) | 31.89 |
| Outdoor Unit Width (Inches) | 37.24 |
| Outdoor Unit Depth (Inches) | 16.14 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 7 |
| Heating Btu | 37000 |
| Amp(s) | 30.5 |
| Voltage | 208/230V |
| Zones | 3 - Zone |
| Total Shipping Weight (lbs.) | 258.82 |
| HSPF | 9.5 |
| Outdoor Unit Depth (Inches) | 16.14 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 7 |
| Heating Btu | 37000 |
| Amp(s) | 30.5 |
| Voltage | 208/230V |
| Zones | 3 - Zone |
| Total Shipping Weight (lbs.) | 258.82 |
| HSPF | 9.5 |
