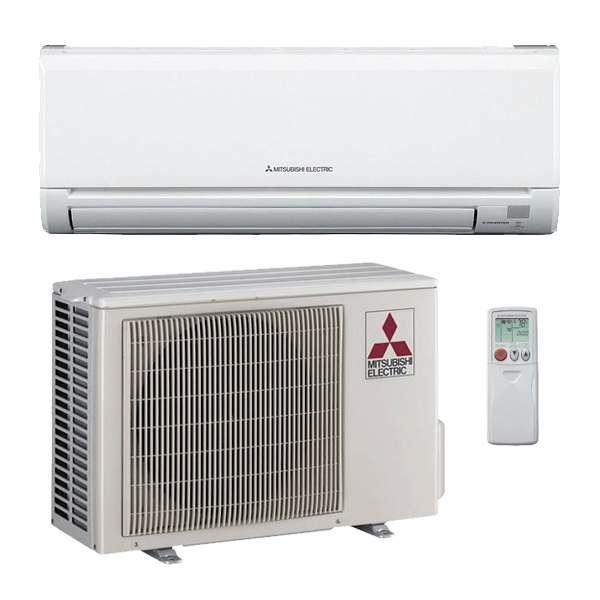

22,500 Btu/h 19 Seer Single-Zone Mini Split Air Conditioning System MUYGE24NA - MSYGE24NA

Standard Wall-mounted System Features:

• Easy Installation
• Nano Platinum and and Anti-allergy Enzyme filters are included
• Wall-mounted indoor unit for residential applications
• Compact side discharge outdoor unit
• Zone control
• Quiet operation for both indoor and outdoor units
• Indoor unit powered from outdoor unit using A-Control
• 3 inch hole access to connect indoor unit with outdoor unit
• Indoor unit powered from three wires connected to outdoor unit
• Discreetly mounted high on a wall for out of sight comfort control
• Catechin and Anti-allergen enzyme filters for high air-purification capabilities
• Powerful Mode function permits system to temporarily run at a lower/higher temperature with an increased fan speed, which quickly brings the room to the optimum comfort level
• Self-check function with on board diagnostics
• Advanced microprocessor control
• Auto restart following a power outage

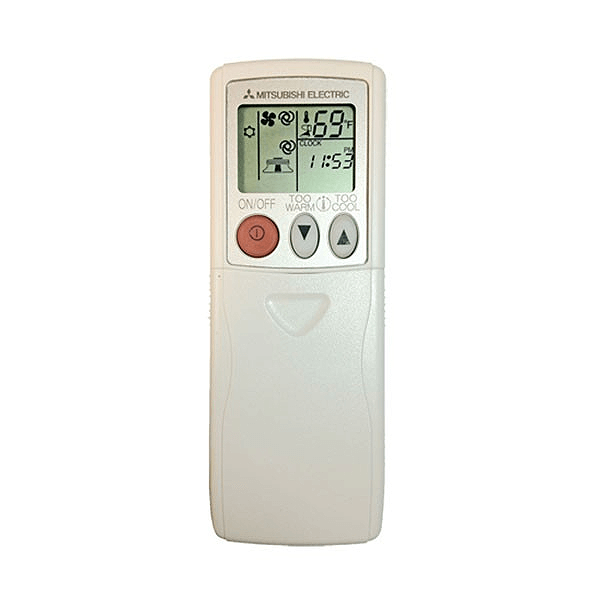

• Wireless remote controller is included
• Energy efficient systems save you money
• More energy efficient than traditional HVAC Systems
• Use only the exact amount of energy needed to maintain comfort
• are up to 40 more efficient than window units
• Limited warranty: five years on parts and defects and seven years on compressors

TYPE: Air Conditioner (Inverter)
Performance Ratings:

• Size: 2.0 TON
• SEER: 19.00
• EER: 12.50
• HSPF: N/A
• Cooling Capacity: 22,400 Btu/h/W
• Tax Credit Qualify: No

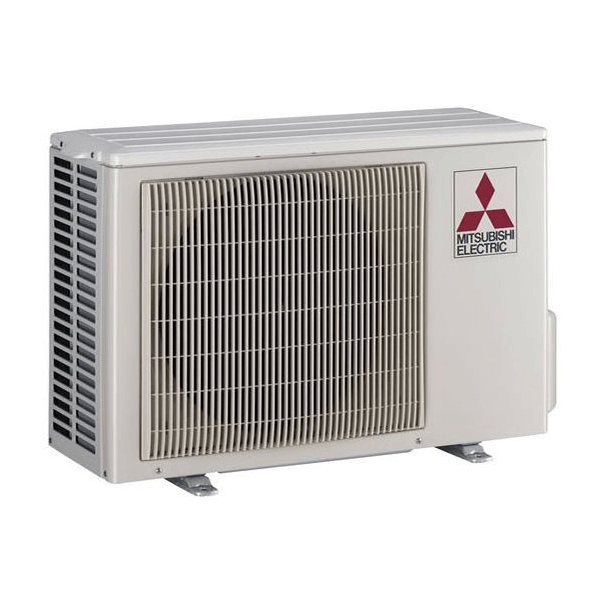

OUTDOOR UNIT: MUYGE24NA

• Height: 33 7/16
• Width: 33 1/16
• Depth: 13
• Min. Amp: 17.0
• Max. Fuse: 20.0
• Liquid Line: 3/8
• Suction Line: 5/8
• Max. Refrigerant Pipe Length: 100'
• Max. Refrigerant Pipe Height Difference: 50'

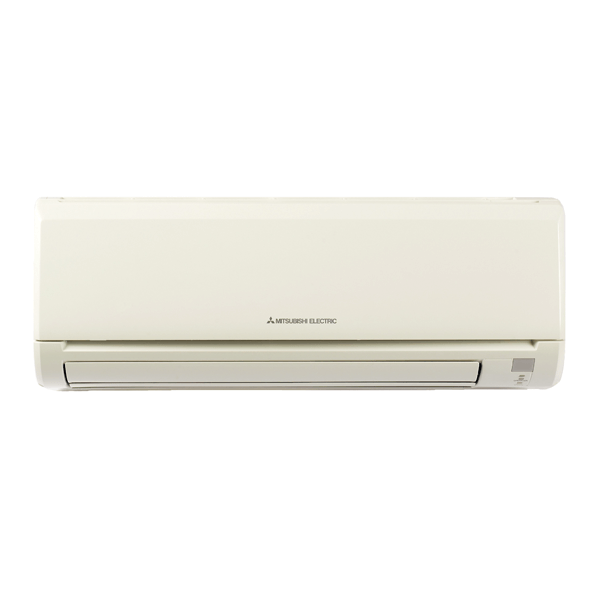

INDOOR UNIT: MSYGE24NA

• Height: 12 13/16
• Width: 43 5/16
• Depth: 10 1/4
• Min. Amp: 1.0
• Max. Fuse: 15
