Sold out

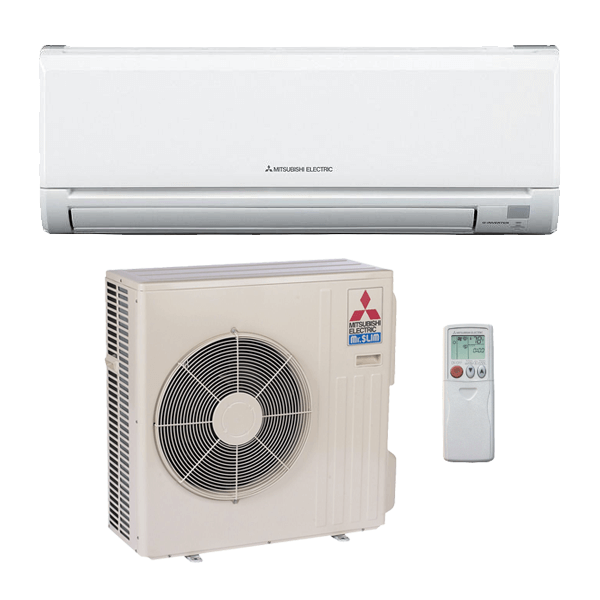

Mitsubishi 30,000 Btu 19.1 SEER2 Single Zone Ductless Mini Split Heat Pump System
Mitsubishi 30,000 Btu 19.1 SEER2 Single Zone Ductless Mini Split Heat Pump System
Model: MUZ-GS30NA-U1 - MSZ-GS30NA-U1
Discontinued
Call for details
Share:
30,600Btu/h 14.50 Seer Single-Zone Mini Split Heat Pump System
MUZD30NA1 - MSZD30NA8
GENERAL FEATURES:
- Catechin and anti-allergy enzyme filters for high air-purification capabilities
- Updated sleek, compact indoor unit design
- Remote-controlled wide airflow enables ideal horizontal air distribution
- Self-check function incheson board diagnostics
- Advanced microprocessor control
- Auto restart following a power outage

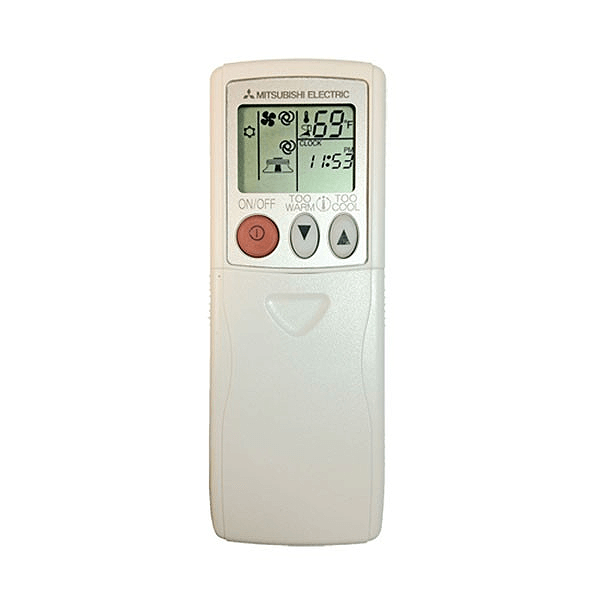

- Hand-held Wireless Remote Controller
- Anti-allergy Enzyme Filter
- Limited warranty: five years on parts and defects and seven years on compressors
TYPE: Heat Pump (Inverter) Performance Ratings:
- Size: 2.5 Ton
- SEER: 14.50
- EER: 8.00
- HSPF: 8.20
- Cooling Capacity: 30,600
- Tax Credit Qualify: No

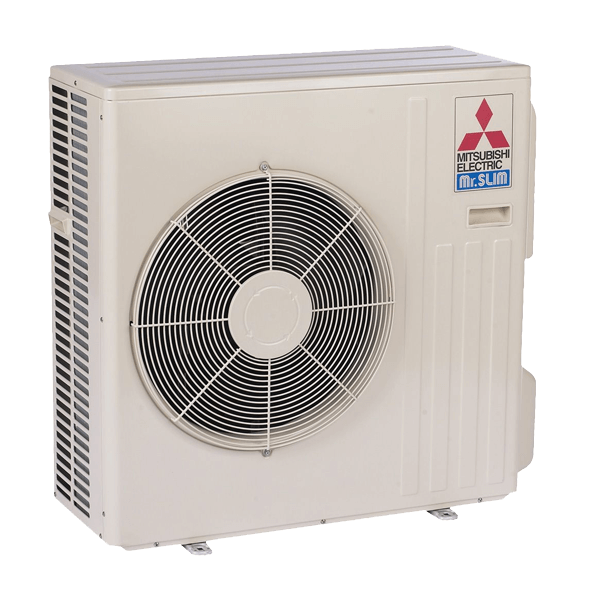

OUTDOOR UNIT: MUZD30NA1
- Height: 33 7/16"
- Width: 33 1/16"
- Depth: 13"
- Min. Amp: 21.0
- Max. Fuse: 25.0
- Liquid Line: 3/8"
- Suction Line: 5/8"
- Max. Refrigerant Pipe Length: 100'
- Max. Refrigerant Pipe Height Difference: 50'

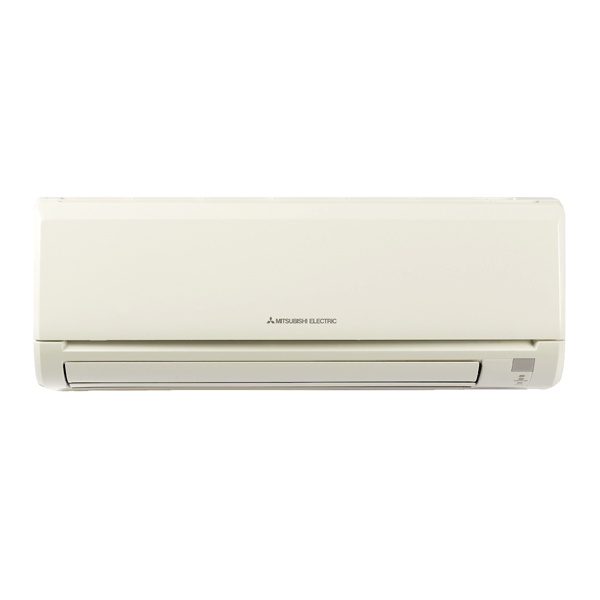

INDOOR UNIT: MSZD30NA8
- Height: 14 3/8"
- Width: 46 1/16"
- Depth: 11 5/8"
- Min. Amp: 1.0
- Max. Fuse: 15.0
| Model Number (s) | MUZ-GS30NA - MSZ-GS30NA |
| Brand | Mitsubishi |
| Type | Heat Pump |
| SEER | 14.5 |
| Cooling Btu | 30,700 |
| Compressor Stage | Inverter |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 57 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 5/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Outdoor Unit Height (Inches) | 33 7/16 |
| Outdoor Unit Width (Inches) | 33 1/16 |
| Outdoor Unit Depth (Inches) | 13 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 640852918735 |
| Heating Btu | 32,600 |
| Amp(s) | 25 |
| Voltage | 208/230V |
| Zones | 1 - Zone |
| Maximum CFM | 887 |
| Total Shipping Weight (lbs.) | 181 |
| Btu | 30,000 |
| Indoor Unit Depth (Inches) | 11 5/8 |
| Indoor Unit Width (Inches) | 46 1/16 |
| Indoor Unit Height (Inches) | 14 3/8 |
| HSPF | 8.20 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 640852918735 |
| Heating Btu | 32,600 |
| Amp(s) | 25 |
| Voltage | 208/230V |
| Zones | 1 - Zone |
| Maximum CFM | 887 |
| Total Shipping Weight (lbs.) | 181 |
| Btu | 30,000 |
| Indoor Unit Depth (Inches) | 11 5/8 |
| Indoor Unit Width (Inches) | 46 1/16 |
| Indoor Unit Height (Inches) | 14 3/8 |
| HSPF | 8.20 |
