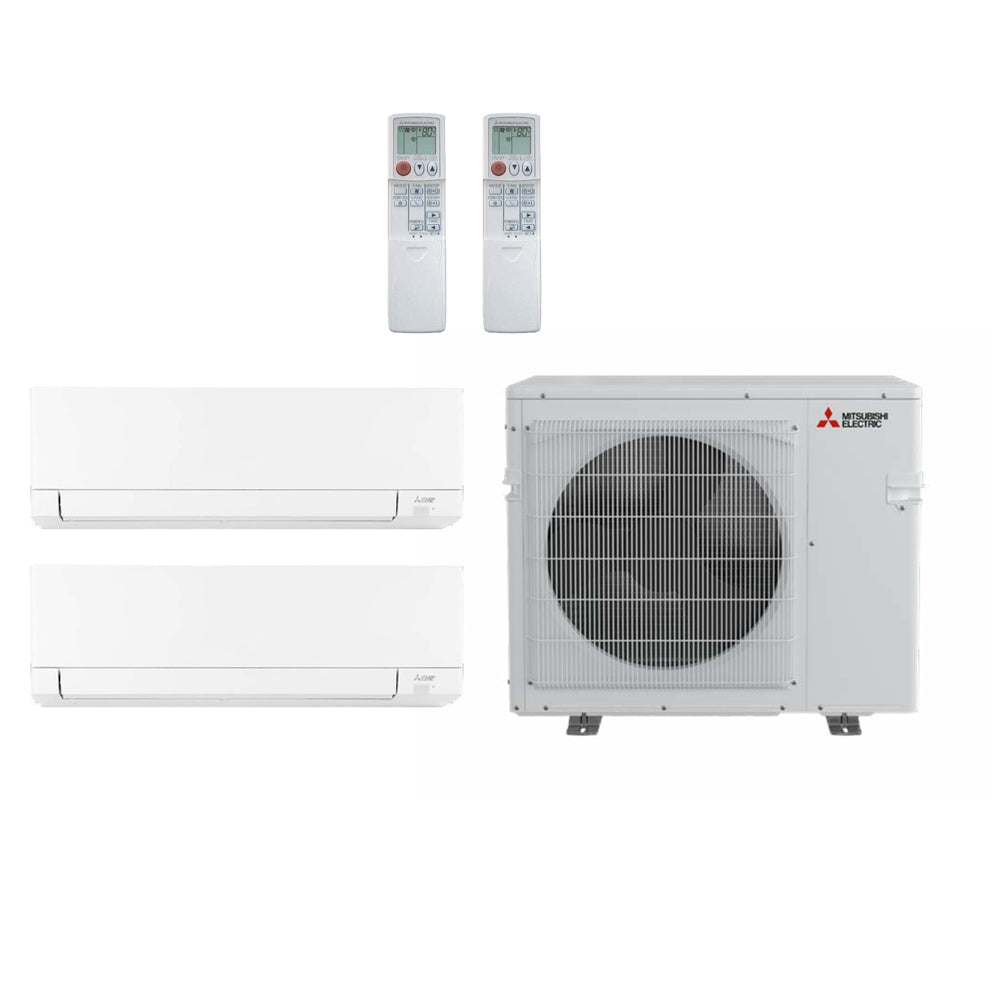

Mitsubishi 30,000 Btu 21 SEER2 2-Zone Ductless Mini Split Heat Pump System - 6K-12K
Mitsubishi 30,000 Btu 21 SEER2 2-Zone Ductless Mini Split Heat Pump System - 6K-12K
Model: MXZ-4D30NL - MSZ-GX06NL - MSZ-GX12NL
Couldn't load pickup availability
**PLEASE BE ADVISED** This is highly specialized HVAC equipment and should only be purchased by or after consulting with a licensed technician. The AC Outlet cannot be held liable for any equipment that has been purchased incorrectly.
The Mitsubishi MXZ Series is engineered to provide high-efficiency, zoned comfort and exceptional reliability for multi-room residential applications. Powered by an advanced multi-zone outdoor condenser and three sleek wall-mounted indoor units, this premium system delivers customized climate control, whisper-quiet performance, and precise temperature management. Featuring an energy-efficient design tailored for modern homes, it offers dependable year-round heating and cooling performance by allowing you to independently control the climate in three separate living spaces.
- Complete 2-zone comfort system featuring a high-performance outdoor condenser and three indoor air handlers
- Flexible 30,000 BTU multi-zone capacity designed to precisely balance heating and cooling loads
- Advanced inverter-driven compressor optimizes energy usage to help significantly lower utility bills
- Ultra-quiet indoor operation enhances occupant comfort in bedrooms, offices, and living areas
- Independent zone control allows customized, individual temperature settings in each of the three rooms
- High-performance heat pump capability ensures reliable year-round comfort in extreme weather
- Washable long-life air filters provide convenient, cost-effective maintenance and improved indoor air quality
- Engineered by Mitsubishi for durable, dependable, and premium long-term operation
System & Installation Features:

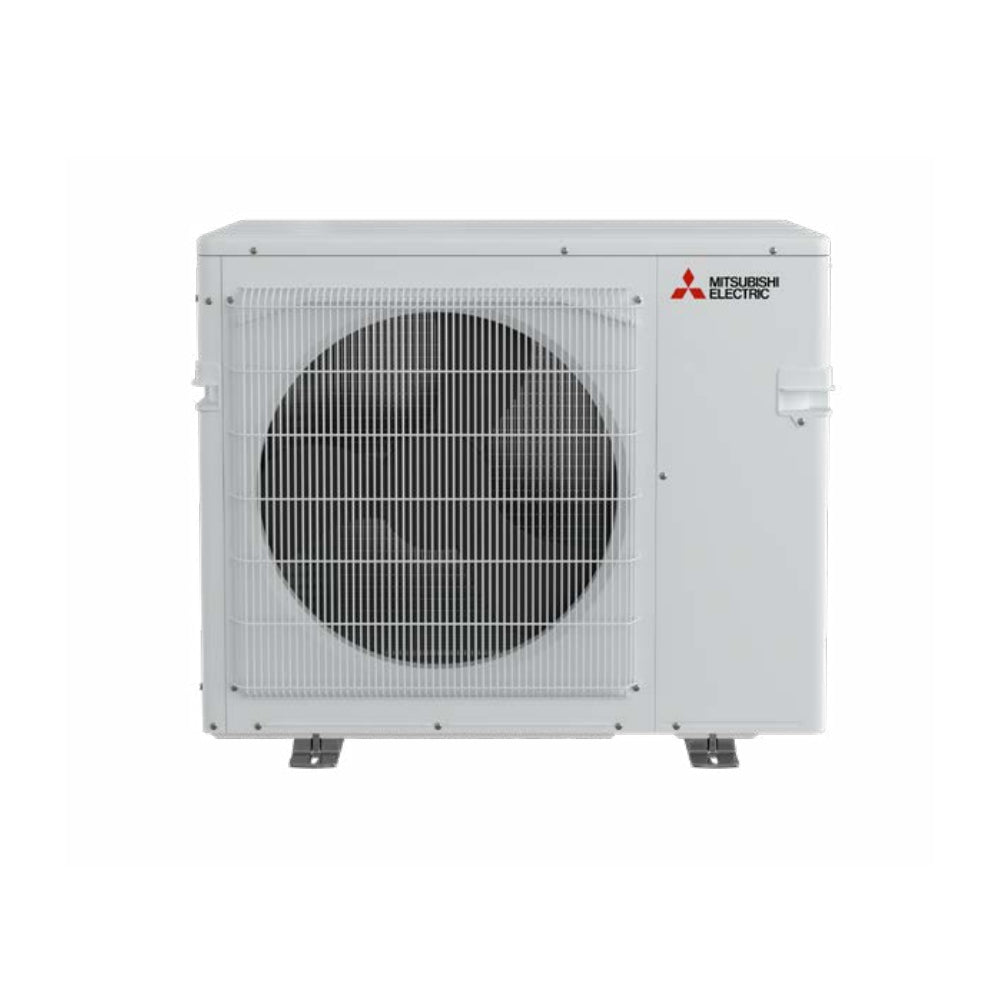

- Multi-zone outdoor condenser connects seamlessly to all three indoor wall-mounted units
- Clean, modern wall-mounted indoor units blend elegantly and discreetly into any home interior
- Durable, weather-resistant outdoor housing built to withstand harsh environmental elements
- Compact outdoor equipment footprint maximizes installation flexibility and saves valuable outdoor space
- Advanced wireless remote controls included for simplified, individual zone temperature management
| Model Number (s) | MXZ-4D30NL - MSZ-GX06NL - MSZ-GX12NL |
| Brand | Mitsubishi |
| SEER | 21 |
| Cooling Btu | 28,600 |
| Compressor Stage | Inverter |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 56 |
| Refrigerant Type | R-454B |
| Outdoor Unit Height (Inches) | 31 11/32 |
| Outdoor Unit Width (Inches) | 37 13/32 |
| Outdoor Unit Depth (Inches) | 13 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 633190306951 |
| Heating Btu | 28,400 |
| Amp(s) | 20 |
| Voltage | 208/230V |
| Zones | 2 - Zone |
| Min. Operating Temp. (Degrees Farenheit) | 5 |
| Total Shipping Weight (lbs.) | 187 |
| Btu | 30000 |
| HSPF | 8.9 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 633190306951 |
| Heating Btu | 28,400 |
| Amp(s) | 20 |
| Voltage | 208/230V |
| Zones | 2 - Zone |
| Min. Operating Temp. (Degrees Farenheit) | 5 |
| Total Shipping Weight (lbs.) | 187 |
| Btu | 30000 |
| HSPF | 8.9 |
