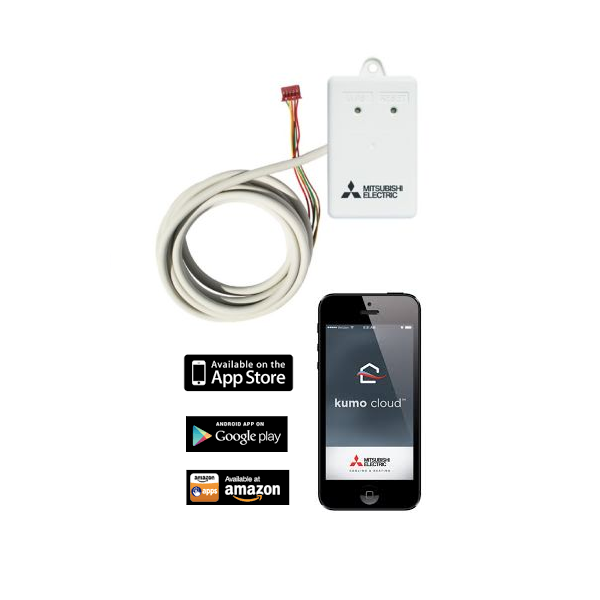

The Mitsubishi PAC-WHS01WF-E Kumo Cloud Wireless Interface was developed for Kumo Cloud, a cloud service hosted by Mitsubishi Electric Cooling and Heating. The Wi-Fi interface provides remote and local control of the system through the mobile app or web browser. One Wi-Fi Interface is required for each indoor unit. The app works with any wireless router that has a WPS (Wi-Fi Protected Setup) button. Internet access is required for set up.

Specifications:

• Encryption: AES
• Authentication: PSK
• RF channel : 1ch - 11ch
• 3 LEDs to display device status
• Weight: 3.7oz (including cable)
• Reset button to reset all settings
• Connection to indoor unit via CN105
• Radio protocol: IEEE 802.11b/g/n (20)
• Wireless connection over local network
• Remote connection through kumocloud.com
• WPS button to pair with wireless router
• Dimensions: (H x W x D) 3.5 × 1.9 × 0.8 inches
• Allows for a Mitsubishi Electric indoor unit to communicate with the kumo cloud app and web service

Requirements:

• Kumo Cloud App Version 1.1.4 or newer
• Mitsubishi Electric Wi-Fi Interface (PAC-WHS01WF-E)
• Wireless Router with WPS capability - Internet Access required for Initial Setup and Scheduling
• Compatible Wi-Fi enabled Mitsubishi Electric indoor units - See remote controller compatibility charts with PAC-WHS01WF-E
• Compatible Software Platforms - iOS 8.0 or later - Android 4.1 or later - Fire OS 4.1 or later - Updated web browser with Java Script enabled
