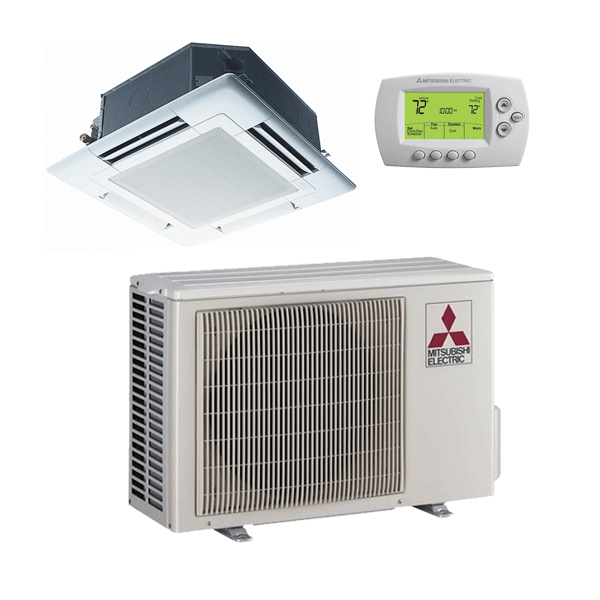

12,000 Btu 15.20 Seer Mitsubishi Single Zone Ductless Mini Split Air Conditioning System
12,000 Btu 15.20 Seer Mitsubishi Single Zone Ductless Mini Split Air Conditioning System
Model: PUYA12NHA - PKAA12HA
The Mitsubishi PUYA Mini Split Air Conditoning System Is Commercial Grade...Mitsubishi is the leading brand name in Mini Splits. High in quality and low in cost. Definitely the best Mini Split money can buy. Mini-splits are economical to install and provide cooling and heating with the convenience of a remote control and best of all, turn the system off when you leave to save money on energy bills. These Mini-Splits offer additional cooling and heat without costly changes to your home or business central cooling and heating system. Mini-Splits can be usedfor even the most difficult to cool or heat areas. The advanced technology that goes into these units createsa far more cost effective alternative to either gas or oil-fired units for heat, or a central ducted system for air conditioning.
General Features:
- Compact side-discharge outdoor unit
- Ideal for applications such as: Retail stores, classrooms, office spaces,conference rooms, lobbies and more
- Independent Vane Motor Control
- Each of the four vanes can be set by the wired remote controller to operate independently to match the room layout. Specific vane settings include five fixed directions plus swing.
- Quiet operation inchesindoor and outdoor units
- Built-in drain lift mechanism for condensate removal; lifts to 33-7/16
- Wide air flow pattern for better air distribution
- Auto wave airflow in heating mode inchesunit independently cycles through horizontal and vertical positions for more even heat distribution
- Independent vane adjustment
- Automatic fan speed control
- Limited warranty: five years on parts/defects, seven years on compressors
| Model Number (s) | PUYA12NHA - PKAA12HA |
| Brand | Mitsubishi |
| Type | Air Conditioning |
| SEER | 15.2 |
| Cooling Btu | 12,000 |
| Compressor Stage | Inverter |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 48 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 1/2 |
| Liquid Valve Size (Inches) | 1/4 |
| Outdoor Unit Height (Inches) | 23 5/8 |
| Outdoor Unit Width (Inches) | 31 1/2 |
| Outdoor Unit Depth (Inches) | 11 13/16 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 640852918803 |
| Amp(s) | 15 |
| Voltage | 208/230V |
| Zones | 1 - Zone |
| Maximum CFM | 425 |
| Total Shipping Weight (lbs.) | 111 |
| Indoor Unit Depth (Inches) | 9 13/16 |
| Indoor Unit Width (Inches) | 35 3/8 |
| Indoor Unit Height (Inches) | 11 5/8 |
| Outdoor Unit Depth (Inches) | 11 13/16 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 640852918803 |
| Amp(s) | 15 |
| Voltage | 208/230V |
| Zones | 1 - Zone |
| Maximum CFM | 425 |
| Total Shipping Weight (lbs.) | 111 |
| Indoor Unit Depth (Inches) | 9 13/16 |
| Indoor Unit Width (Inches) | 35 3/8 |
| Indoor Unit Height (Inches) | 11 5/8 |
