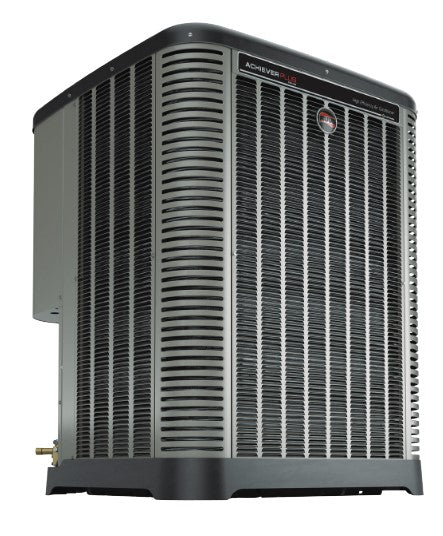

Ruud Endeavor by Rheem 5 Ton 15.2 SEER2 3-Stage Air Conditioner Condenser
Ruud Endeavor by Rheem 5 Ton 15.2 SEER2 3-Stage Air Conditioner Condenser
Model: RA15AZ60AJ3CA
The Ruud Endeavor by Rheem RA15 Air Conditioner offers a more reliable way to keep your home comfortable. It’s designed for lasting energy-efficient comfort that saves you money while delivering peace of mind.
Standard Features:
- EcoNet® Enabled: Automatic system configuration and optimization
- PlusOne® Diagnostics & Bluetooth®1 Connectivity: With the Ruud Contractor & EcoNet® Apps, built-in technology makes advanced set-up, monitoring, troubleshooting and repairing the product easier than ever before
- PlusOne® Variable Speed Twin Rotary Compressor & Inverter Drive: Features Inverter operation from 40 to 100% capacity with the EcoNet® Smart Thermostat
- 3-Speed Operation: When installed with a 24V two-stage thermostat
- Provides Precise Temperature Control: Advanced humidity control and greater efficiency
- Brushless DC Condenser Motors (BLDC): Enhances reliability and allows for easier serviceability
- Swept Wing Fan Technology: Features quieter operation and improved unit acoustics
- 7mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
- PlusOne® Expanded Valve Space: 3 in. – 4in. – 5 in. service valve space—provides a minimum working area of 27-square inches for easier access
- PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removeable corner and individual louver panels—makes repairs easier and faster
| Model Number (s) | RA15AZ60AJ3CA |
| Brand | Ruud / Rheem |
| Type | Air Conditioning |
| Ton | 5.0 Ton |
| SEER | 16 |
| Cooling Btu | 60,000 |
| Compressor Stage | Three |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 77 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 662021590542 |
| Amp(s) | 60 |
| Total Shipping Weight (lbs.) | 253 |
| Height (Inches) | 31 |
| Width (Inches) | 33 3/4 |
| Depth (Inches) | 33 3/4 |
| Category | Condensers |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 662021590542 |
| Amp(s) | 60 |
| Total Shipping Weight (lbs.) | 253 |
| Height (Inches) | 31 |
| Width (Inches) | 33 3/4 |
| Depth (Inches) | 33 3/4 |
| Category | Condensers |
