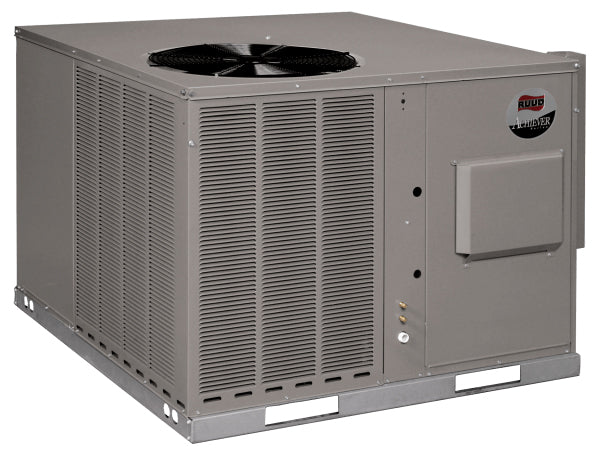

Ruud 3.5 Ton 14 Seer Package Air Conditioner
Ruud 3.5 Ton 14 Seer Package Air Conditioner
Model: RACA14042AJT000A
The Rheem RACA14 Package Air Conditioners are designed for durable, long lasting performance while keeping your utility bills low. Its definitely a package you can live with comfortably. The Rheem Classic Series Package Air Conditioner was developed using our 360+1 design philosophy, which means every detail of the product is meticulously evaluated from every angle. We consider the work that goes into installing and servicing our products, as well as how we can deliver the very best homeowner experience. And then we take it a step further. That's 360+1. And that's why you can count on your Rheem Package Air Conditioner to bring you and your family years of comfort.
Standard Features:
- Louvered condenser compartment to protect the coil against yard hazards and/or weather extremes
- One-piece top with a drip lip to help keep water off of the unit sides
- Drawn supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork
- Access panels have weep holes and channels to further help manage water run-off
- Side and down discharge options available on all models
- Easily accessible blower section complete with slide-out blower
- Externally mounted refrigerant connections are conveniently located for easy service diagnostics
- Supplemental electric heat strips up to 15 kW are available, field or factory installed, for periods of extreme cold temperatures. Single point wiring simplifies installation
- All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap
- Easily accessible control box
- Thermal expansion valve standard on all models for superior superheat control, reliability, and energy efficiency at all operating conditions
- Solid core liquid line. Filter drier standard on all models
- Rugged base rails included for improved installation and handling
- Molded compressor plug
- Complete factory charged, wired and run tested
- A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality
- Micro Channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. Its easier to clean and has a more robust surface
| Model Number (s) | RACA14042AJT000A |
| Brand | Ruud / Rheem |
| Type | Air Conditioning |
| Ton | 3.5 Ton |
| SEER | 14 |
| Cooling Btu | 41,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 76 |
| Refrigerant Type | R-410A |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 646341728229 |
| Voltage | 208/230V |
| Maximum CFM | 3,500 |
| Total Shipping Weight (lbs.) | 451 |
| Height (Inches) | 35 15/16 |
| Length (Inches) | 47 19/32 |
| Width (Inches) | 50 13/16 |
| Refrigerant Type | R-410A |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 646341728229 |
| Voltage | 208/230V |
| Maximum CFM | 3,500 |
| Total Shipping Weight (lbs.) | 451 |
| Height (Inches) | 35 15/16 |
| Length (Inches) | 47 19/32 |
| Width (Inches) | 50 13/16 |
