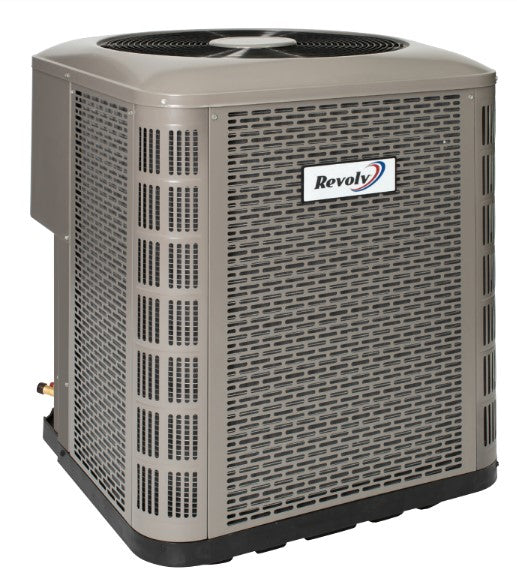

The Revolve RSA3ME Series Mobile Home Air Conditioner offers exceptional performance. The unit, when combined with our engineered coils or air handlers, offers a full line of quality, split system cooling equipment.

Standard Features:

• MD Models Offer Full Service Valves on RSA3ME: These brass valves are easily accessible and simplify servicing of the refrigeration system. Charged with refrigerant for 20 feet of lineset
• Micro-Channel Coils minimize refrigerant charge and cost; while mounted on a rugged, composite drain pan with damage-preventing molded steps and drainage holes, in two competitive footprints.
• 2023-M1 DOE Compliance for new performance minimums and unique MH testing standards, exclusively designed and labelled for use in manufactured home applications.
• Composite Base Pan: Absorbs sound and is corrosion resistant. Composite is also stronger and lighter than steel
• Permanently Lubricated Motor: A heavy duty PSC motor for long lasting reliability and quiet operation. Requires no maintenance and is completely protected from rain and snow
• High Pressure Switch: Protects against abnormally high system pressures. Auto-reset feature prevents nuisance service visits.
• Liquid Line Filter Drier: Included with unit, factory installed on QD and field installed on MD models
• Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit
• All-Aluminum coils: Aluminum coils in all models which provides high corrosion resistance

Cabinet Features:

• Robust Post and Jacket Design has independent louvered panels that are easily removed for service and maintenance, while protecting the coil from yard debris and extreme weather.
• Corner-Post Packaging creates a gap around the entire unit, distributes the load evenly, and minimizes contact with the carton; so the unit arrives safely to your customer.
• Removable Top Grille Assembly: Allows ease of service from the top without disconnecting fan motor leads.
• One Piece Top/Orifice: Designed for maximum airflow and quiet operation
• When properly anchored, meets the 2001 Florida Building Code unit integrity requirements  for hurricane-type winds
• Powder Coated Wire Guard and Mesh Hail Guard: Will never rust and protects the coil from being damaged by balls, lawnmowers, hail, etc

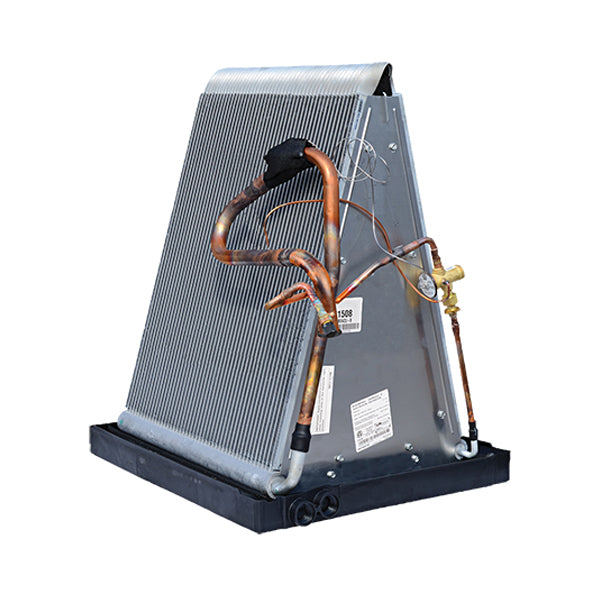

The Revolv C84 Series Mobile Home Evaporator Coils are designed for upflow or downflow applications and are equipped with down turned refrigerant connections and are ready for brazing.



The Revolve RSH3ME Series Mobile Home Heat Pump offers exceptional performance. The unit, when combined with our engineered coils or air handlers, offers a full line of quality, split system cooling equipment.

Standard Features:

• ME Models Offer Full Service Valves: These brass valves are easily accessible and simplify servicing of the refrigeration system. Charged with refrigerant for 20 feet of lineset
• Micro-Channel Coils minimize refrigerant charge and cost; while mounted on a rugged, composite drain pan with damage-preventing molded steps and drainage holes, in two competitive footprints.
• Patented Hot Gas Bypass Defrost – Ensures that outdoor coil defrosts every time and only when necessary
• Designed for Manufacturing Housing – the outdoor thermostat required by HUD is factory installed
• Suction Accumulator and Crankcase Heater – Protection from liquid flood back and future compressor failures
• Hot Gas Muffler – Reduces compressor noise and vibration
• 2023-M1 DOE Compliance for new performance minimums and unique MH testing standards, exclusively designed and labelled for use in manufactured home applications.
• Composite Base Pan: Absorbs sound and is corrosion resistant. Composite is also stronger and lighter than steel
• Permanently Lubricated Motor: A heavy duty PSC motor for long lasting reliability and quiet operation. Requires no maintenance and is completely protected from rain and snow
• High Pressure Switch: Protects against abnormally high system pressures. Auto-reset feature prevents nuisance service visits.
• Low Pressure Switch – Loss of charge protection ensures long compressor life. Auto-reset feature prevents nuisance service visits
• Liquid Line Filter Drier: Included with unit, factory installed on QD and field installed on MD models
• Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit
• All-Aluminum coils: Aluminum coils in all models which provides high corrosion resistance
• Common Suction Service Port – This port allows the contractor to read the suction pressure in all modes of operation without removing any panels, saving time and increasing serviceability
• Five Minute Restart Time Delay – When the unit shuts down, a five minute delay keeps the unit from restarting, eliminating the highest cause for compressor failure

Cabinet Features:

• Robust Post and Jacket Design has independent louvered panels that are easily removed for service and maintenance, while protecting the coil from yard debris and extreme weather.
• Corner-Post Packaging creates a gap around the entire unit, distributes the load evenly, and minimizes contact with the carton; so the unit arrives safely to your customer.
• Removable Top Grille Assembly: Allows ease of service from the top without disconnecting fan motor leads.
• One Piece Top/Orifice: Designed for maximum airflow and quiet operation
• When properly anchored, meets the 2001 Florida Building Code unit integrity requirements  for hurricane-type winds
• Powder Coated Wire Guard and Mesh Hail Guard: Will never rust and protects the coil from being damaged by balls, lawnmowers, hail, etc



The Revolv C84 Series Mobile Home Evaporator Coils are designed for upflow or downflow applications and are equipped with down turned refrigerant connections and are ready for brazing.

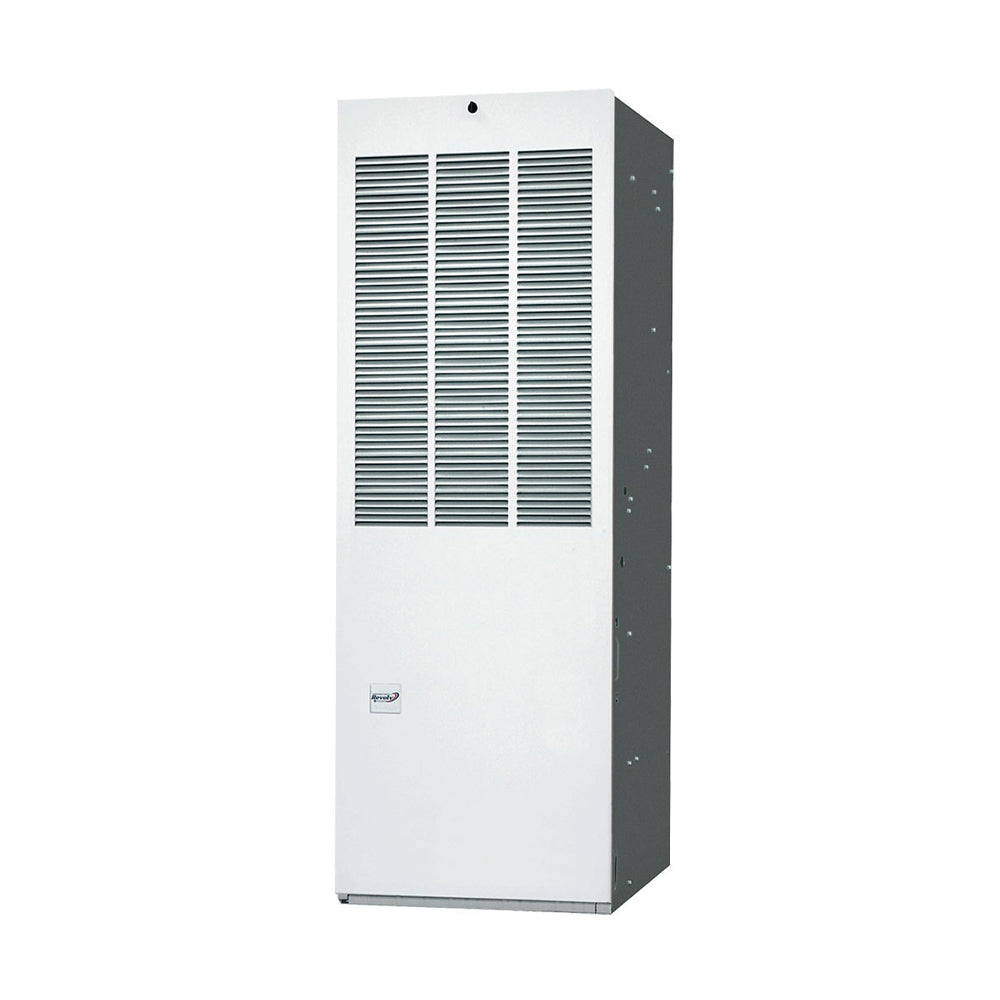

The Revolve MG2R Series Mobile Home Gas Furnace is designed for all sizes of manufactured and modular homes. These units incorporate high efficiency, reliability, and low maintenance. Units may be installed free standing in a utility room or enclosed in an alcove or closet. MG1 Series furnaces are available in A/C adaptable or A/C ready, with or without coil cavity box and many burner options.

Standard Features:

• 100% fired and tested: All units and each component (both mechanical and electrical) are tested on the manufacturing line.
• Clean and quiet operation: Due to the unique design of in-shot burners, location of inducer and use of insulation.
• Fixed 30 second blower delay: At burner start-up assures a warm outlet air temperature at furnace start-up. Adjustable blower off settings (60, 90, 120 and 180 seconds).
• Dependable, hot surface ignitor: Innovative application of silicon nitride type igniter. Utilizes proven Smartlite® technology to extend iginiter life.
• Tubular primary heat exchanger: Heavy gauge aluminized steel heat exchanger assures a long life.
• Stainless steel secondary heat exchanger: Assures a long life.
• 60 second fixed cooling cycle blower-off delay (TDR): Increases cooling performance when matched with a Nortek Global HVAC coil.
• Sealed combustion approved for direct vent furnace, category IV venting system: May be vertically or horizontally vented using a two-pipe system for maximum flexibility in installation.
• LP convertible: Simple burner orifice (included w/unit)and gas valve regulator change for ease of convertibility.
• 3 amp fuse protection against low voltage shorts: Protects transformer and control board.
• Low voltage terminal board: For easy field wiring.
• Easy open pawl latch: Secures the door firmly for transit, yet allows easy removal for access.
• Appliance quality door: Protects against rust and other corrosion. Baked enamel finish allows for easy cleaning.
• Fully insulated cabinet: Insures minimized heat loss and quiet operation.
• Color coded wire harness: Designed to fit the components, all with quick-connect fittings for ease of service and replacement.
• Multi-speed ECM blower: Designed to give a wide range of cooling capacities. Switches on PCB, provide ultra easy motor speed selection. 40VA transformer included.
• Diagnostic lights for easy troubleshooting without counting flashes: Dedicated light for flame signal strength and 2 lights in combination to indicate all other fault codes with easy to recognize states without counting flashes.
