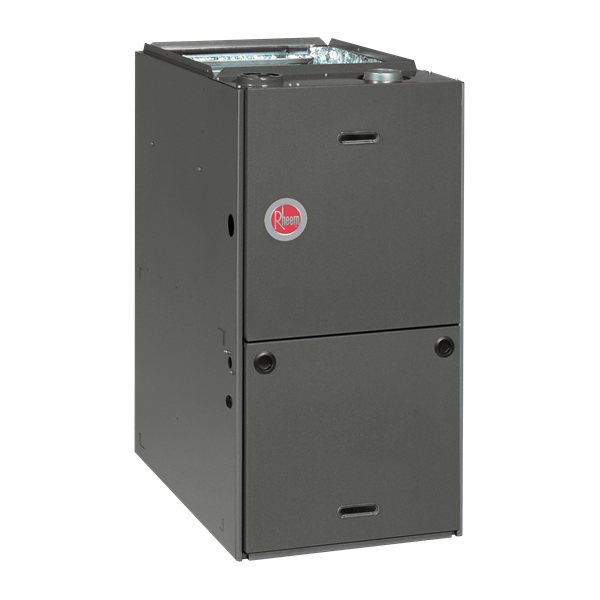

The Rheem RGPE Gas Furnaces are designed for utility rooms, closets, alcoves, or attics. The RheemTM Super Quiet 80TM Gas Furnace has two stages of heating to save energy and keep your home at its comfortable best. Because of the furnace™s low-profile 34 inch [864 mm] height, the upflow model installed vertically can also be used to satisfy most applications that traditionally call for a horizontal furnace. The design is certified by CSA International.

Product Features:

• The Comfort Control2 System provides over 28 on-board diagnostics and fault history codes by detecting system and electrical problems. œCall for Service inches alert notification is sent to the thermostat to alert the homeowner of required service.
• Serial Communication Enhanced “ When installed with a Serial Communicating Condenser and user interface control (RHCTST550CMMS) 500 Series thermostat this unit offers 4 or 2 wire installation, auto-configuration, and diagnostic messaging with full communicating capability.
• Patented heat exchanger, constructed of both stainless and aluminized steel for the maximum in corrosion resistance.
• Low profile œ34 inch inches [864 mm] design is lighter and easier to handle, and leaves room for optional equipment.
• Energy efficient and quiet ECM 2+ communicating motor.
• Improves cooling efficiency when matched with rated Condenser and coil.
• Constant CFM.
• Seven segment LED for system diagnostics.
• Diagnostic history for troubleshooting.
• Dip switch settings for selectable cooling airflow.
• On-demand dehumidification terminal for improved comfort in cooling mode.
• Left or right side gas and electric inlet connections.
• All models feature an integrated board with humidifier and electronic air cleaner hookups.
• Insulated blower compartment, a slow-open gas valve, specially designed draft inducer motor and blower motor make it one of the quietest furnaces on the market today.
• Pre-paint galvanized steel cabinet.
• Easy door removal and replacement.
• Molded permanent filter.
• Compatible with single or two-stage thermostat. (For optimal performance, two-stage thermostat recommended.)
