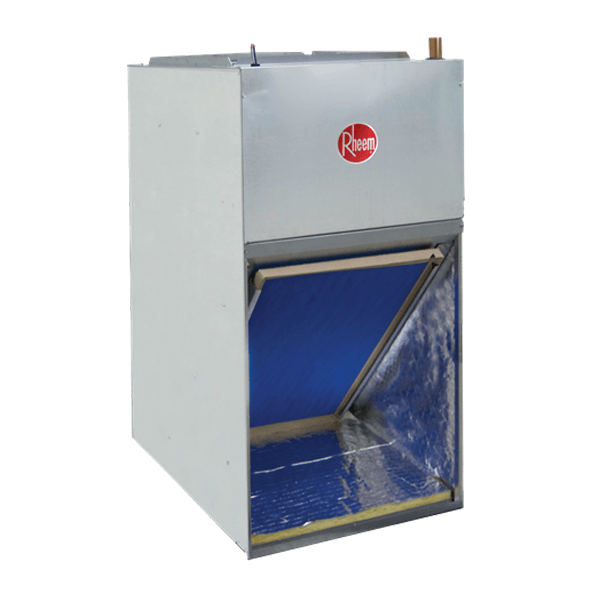

The Rheem RHAL Air Handler is designed to meet the needs of a variety of systems. This air handler is suitable for R-22 applications and can be used for replacing an old unit or for new construction. Easy Installation, The Rheem RHAL Air Handler includes wall hanging brackets, designed to make installation a breeze. AHRI and UL certifications help guarantee that, post-installation, the unit operates as advertised. Efficient Heating & Cooling With the Rheem RHAL Air Handler, you have the choice between a higher or lower efficiency unit. However, both options deliver comfortable cooling while still helping to manage the household budget.

Standard Features:

• Front or Bottom Return
• Flow Check Piston for cooling or heat pump operation
• Wall-hanging brackets
• Built in Filter Rack
• Suitable for R-410A or R-22 Refrigerants (RHAL Only)
• AHRI Certified
• UL Certified
• Molex Plug Connections for field installed heater kits
• Dual Voltage Direct Drive Blower with multi-speed motor
• Thermoplastic Drain Pan with bottom primary and secondary connections
• Optional Decorative Grill for front return applications
• Optional Factory Installed Condensate Float Switch which shuts off the outdoor unit in event the condensate pan becomes clogged
• The most compact unit design available, all standard heat air handler models only 36, 915 mm
• Rugged wall steel cabinet construction, designed for added strength and versatility
• 1.0 foil faced insulation for excellent thermal and sound performance
• Four leg blower motor mount
• Traditional open wire element design for heat applications
• Indoor coil design provides low air side pressure drop, high-performance and extremely compact size
• Coils are constructed of aluminum fins and internally grooved copper tubing
• Molded polymer corrosion resistant condensate drain pan is provided for all indoor coils
• Connection point for high voltage wiring is inside the air handler cabinet. Low voltage connection is made on the outside of the air handler cabinet
• Concentric knockouts are provided for power connection to cabinet. Installer may pull desired hole size up to 13/8 inch inches, 35 mm, for 7/8 inch, 22 mm conduit
