The UA/RA and UP/RP 3+ Stage series of products are highly specialized HVAC systems that must be installed by certified Rheem/Ruud Trained Contractors only. If anyone other than a certified Rheem/Ruud Trained Contractor installs this unit or system, all warranty coverage will be voided. Please be sure to consult with your Contractor to ensure they qualify.

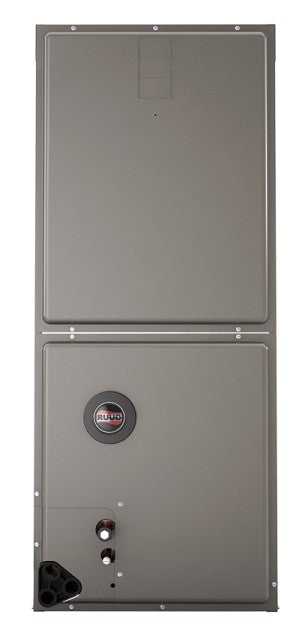

The Ruud Endeavor by Rheem RH3VZ Air Handler with a Constant CFM Motor operate with the easy-to-use EcoNet Smart Thermostat, which optimizes system performance and provides a new level of protection and precision comfort

Standard Features:

• Constant CFM Motor: Truly variable speed technology allows for ultimate humidity control, quieter sound levels and contributes to year-round energy savings
• Quietest Operation1: Provided by Modulating operation and truly variable speed airflow technology and sturdy cabinet construction with 1.0 inch of foil faced insulation for some of the quietest sound characteristics
• PlusOne® Diagnostics: With the Ruud Contractor & EcoNet® Apps, built-in EcoNet ® & Bluetooth2 technology makes monitoring, troubleshooting and repairing the product easier than ever before
• Dip Switch Free Installation Commissioning via Bluetooth Technology: Seamless final install step without DIP switch configuration using the Ruud Contractor App.
• EcoNet® Enabled Air Handler: — The latest in sensor technology and the EcoNet® monitoring system provides a new level of protection, control and energy savings. Allows on-the-go control and receipt of system alerts by the homeowner via the EcoNet ® Smart Thermostat and EcoNet ® App3
• Aluminum Indoor Coil Design: Are constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant
• Versatile 4-y Convertible Compact Design: Allows for upflow, downflow, horizontal left and horizontal right applications, even in the smallest of spaces
• Rugged Steel, Compact Cabinet Construction: Designed for added strength and versatility
• Field-installed Auxiliary Heater Kits: Provide exact heat for indoor comfort and include circuit breakers which meet UL and cUL requirements for service disconnect
• Less than 2% Cabinet Air Leakage at 1-inch H2O: When tested in accordance with AHRAE Standard 193
