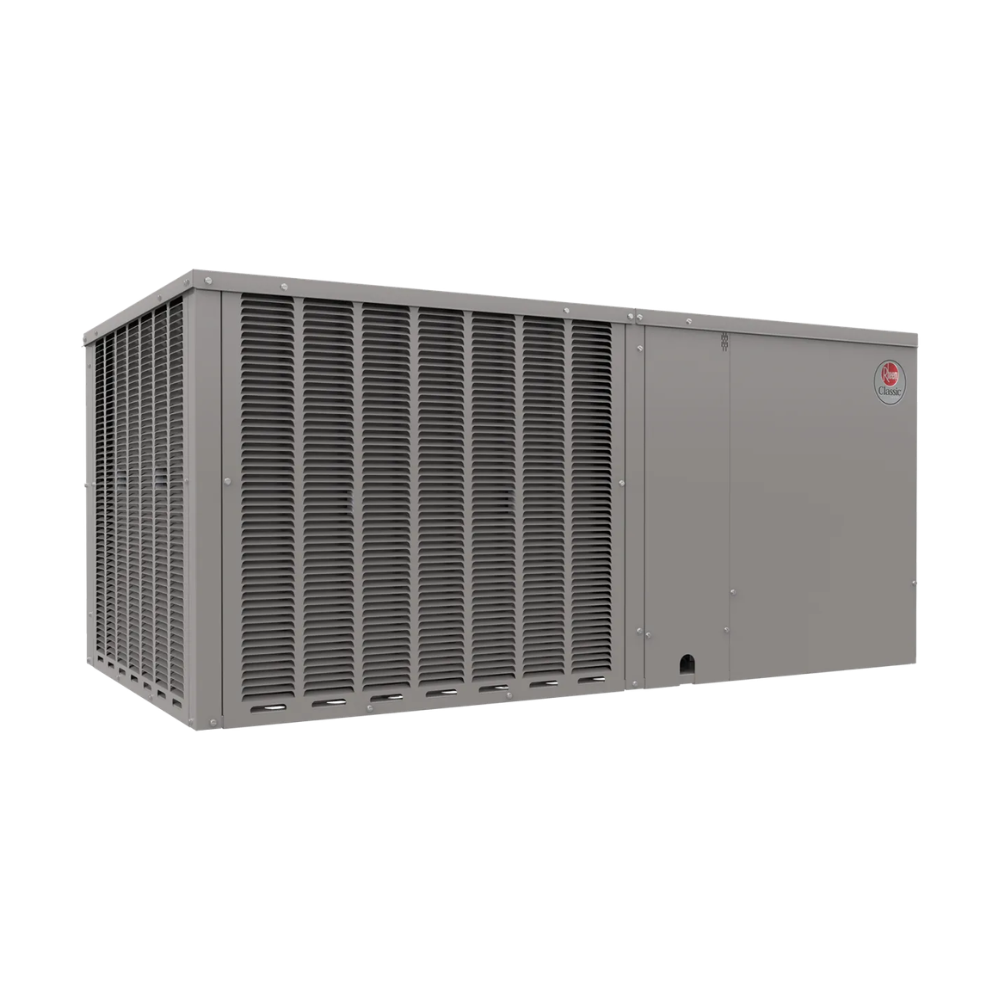

Rheem Endeavor 2 Ton 13.4 SEER2 R-454B Horizontal Package Heat Pump with 10kW Electric Heat
Rheem Endeavor 2 Ton 13.4 SEER2 R-454B Horizontal Package Heat Pump with 10kW Electric Heat
Model: RHPBYB024AJT101NA
Couldn't load pickup availability
The Rheem RHPBYB Series 2 Ton Package Heat Pump is designed to deliver efficient, dependable comfort for smaller residential applications. With a 13.4 SEER2 rating, this compact 2-ton unit provides balanced heating and cooling performance while maintaining energy efficiency. Built with a factory-installed tin-plated evaporator coil for enhanced corrosion resistance, it’s especially well-suited for demanding environments. The integrated 10 kW electric heat ensures reliable supplemental heating during colder conditions, while the scroll compressor and optimized airflow system provide quiet and consistent operation.
Standard Features:
- 13.4 SEER2 energy-efficient cooling and heat pump operation
- 2-ton capacity ideal for smaller spaces and targeted comfort applications
- Factory-installed Tin Plated Evaporator Coil for enhanced durability
- High-efficiency scroll compressor for smooth and reliable performance
- MicroChannel condenser coil for improved heat transfer
- Factory equipped with 10 kW supplemental electric heat
- Multi-speed ECM blower motor for quiet and efficient airflow
- Demand defrost control to prevent frost accumulation
- Pre-charged with low-GWP R-454B refrigerant
Cabinet Features:
- Durable galvanized steel cabinet with powder-coated finish
- Louvered condenser section for coil protection
- Horizontal configuration with downflow capability
- One-piece top design to prevent water intrusion
- Base pan with integrated drainage system
- Fully insulated interior for reduced noise and energy loss
| Model Number (s) | RHPBYB024AJT101NA |
| Brand | Rheem / Ruud |
| Type | Heat Pump |
| Ton | 2.0 Ton |
| SEER | 13.4 |
| Cooling Btu | 24000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 82 |
| Refrigerant Type | R-454B |
| Parts Warranty (Years) | 10 (If Registered with Manufacturer) |
| Compressor Warranty (Years) | 10 (If Registered with Manufacturer) |
| UPC # | 633190305251 |
| Heating Btu | 22600 |
| Amp(s) | 30 |
| Voltage | 208/230V |
| Maximum CFM | 800 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 327 |
| Height (Inches) | 29 1/8 |
| Width (Inches) | 59 |
| Depth (Inches) | 33 |
| Category | Heat Pumps |
| HSPF | 6.7 |
