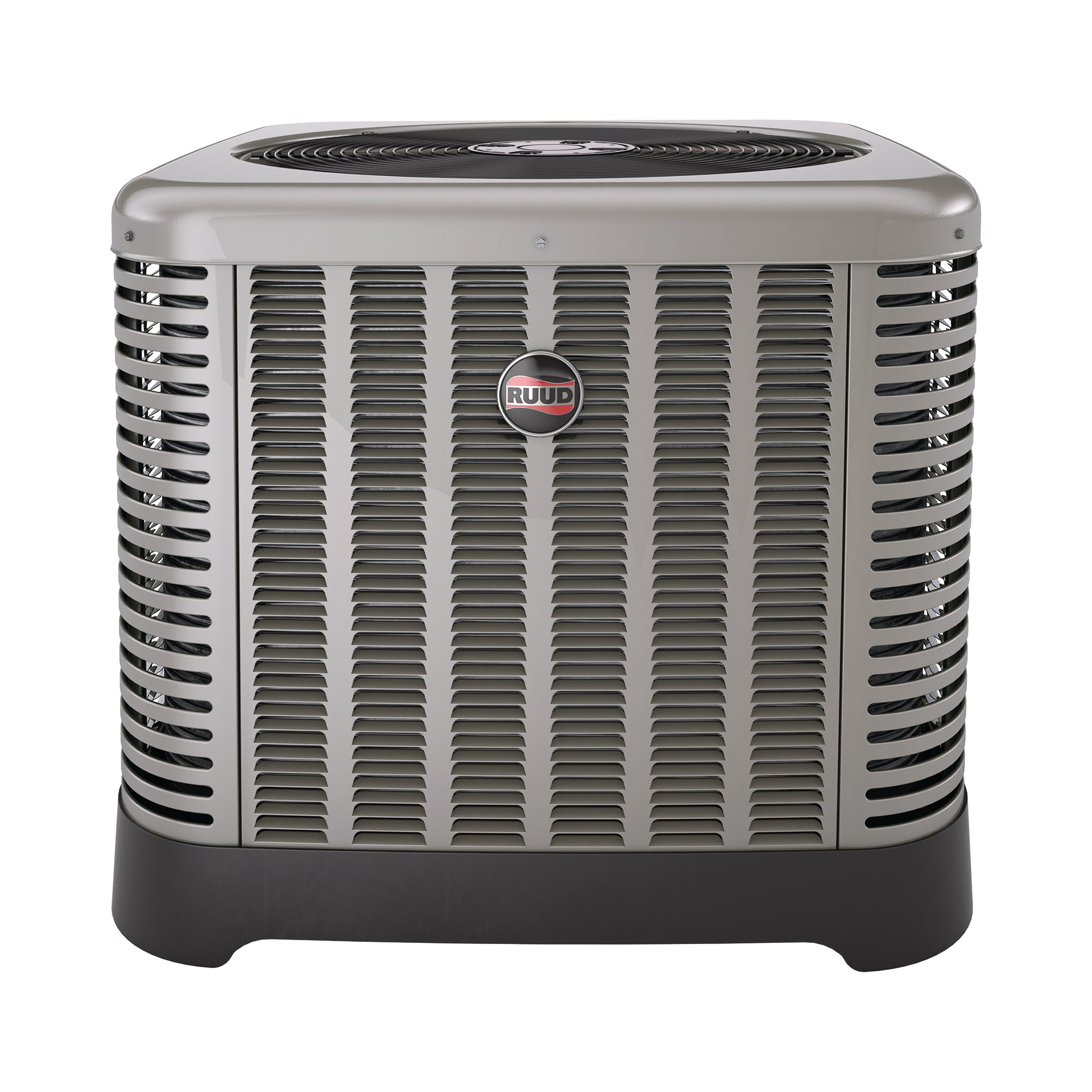

Ruud by Rheem 2 Ton 15 Seer Heat Pump Condenser
Ruud by Rheem 2 Ton 15 Seer Heat Pump Condenser
Model: RP1530BJ1NA-1
**The RP15 Series of Heat Pump is no longer available to be purchased. Your order will be substituted with the RP14 Series which is still available.**
The Rheem RP15 Heat Pump offers the solid technology and energy-saving performance you've come to expect from Rheem. It's also quiet, so you won't give your home comfort a second thought. A smart, efficient design makes the Rheem Heat Pump one of your best options for staying comfortable inside. Each new unit includes a generous list of features that work together to bring you quiet, efficient and reliable indoor comfort.
Standard Features:
- Rheem Efficiencies: 14-15 SEER/11.5-12.5 EER
- New composite base pan
- Improved tubing design
- Optimized defrost characteristics
- Powder coat paint system
- Optimized reversing valve sizing
- Enhanced mufflers
- Scroll compressor
- Modern cabinet aesthetics
- Curved louver panels
- Optimized fan orifice
- Rust resistant screws
- PlusOne Expanded Valve Space 3 4 5 service valve space
- Integrated heat pump lift receptacle allows standard CPVCstands to be inserted into the base
- PlusOne Triple Service Access 15 wide, industry leading corner service access
- Diagnostic service window with two-fastener opening
- External gauge port access
- Single-row condenser coil
- 35% fewer cabinet fasteners and fastener-free base
- Service trays
- QR code
- Fan motor harness with extra-long wires
| Model Number (s) | RP1530BJ1NA |
| Brand | Ruud / Rheem |
| Type | Heat Pump |
| Ton | 2.5 Ton |
| SEER | 15 |
| Cooling Btu | 30,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 75 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| Heating Btu | 30,000 |
| Amp(s) | 20 |
| Voltage | 208/230V |
| Min. Operating Temp. (Degrees Farenheit) | 55 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 156 |
| Height (Inches) | 25 |
| Width (Inches) | 29 3/4 |
| Depth (Inches) | 29 3/4 |
| Category | Heat Pumps |
| HSPF | 8.50 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| Heating Btu | 30,000 |
| Amp(s) | 20 |
| Voltage | 208/230V |
| Min. Operating Temp. (Degrees Farenheit) | 55 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 156 |
| Height (Inches) | 25 |
| Width (Inches) | 29 3/4 |
| Depth (Inches) | 29 3/4 |
| Category | Heat Pumps |
| HSPF | 8.50 |
