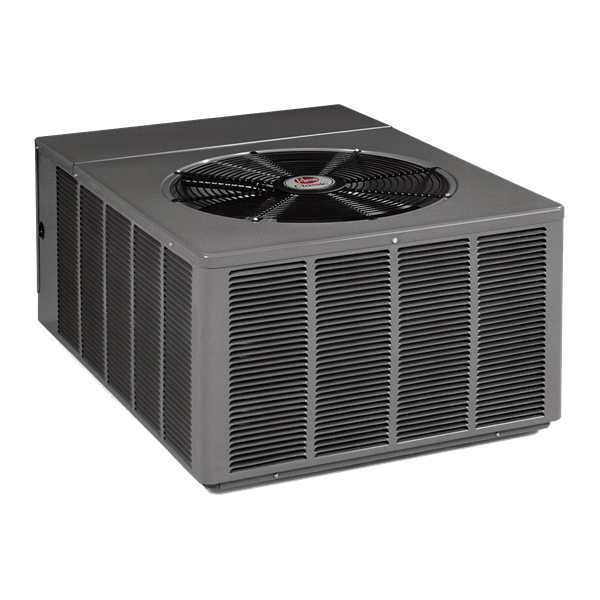

3.5 Ton 13 Seer Ruud Heat Pump Condenser
3.5 Ton 13 Seer Ruud Heat Pump Condenser
Model: RPNL043JAZ
The Rheem RPNL Heat Pumps can provide year-round heating and cooling comfort for residential, multi-family and light commercial applications. They are designed to operate with Rheem indoor units with cooling and heating capacities certified under the ARI Certification program.
Product Details:
- Copeland scroll compressor
- Reduced sound quiet operation
- High and low compressor protection
- Copper coils
- R-410A Refrigerant
- Painted and enclosed low and compact steel cabinet
- Approved for ground or roof top applications
- Easy one panel service access
- Top discharge
Warranty:
- Five Years All Parts and Ten Years on the Compressor
- Labor Warranty should be provided by your installation contractor
NOTE TO CUSTOMER: To ALL interested parties, the sale of this 13 Seer Rated product is limited to the following states [AK, CO, CT, ID, IL, IN, IA, KS, ME, MA, MI, MN, MO, MT, NE, NH, NJ, NY, ND, OH, OR, PA, RI, SD, UT, VT, WA, WV, WI, WY, as well as the U.S. Territories]. If you are located in [AZ, CA, NV, NM, AL, AR, DE, FL, GA, HI, KY, LA, MD, MS, NC, OK, SC, TN, TX, VA and the District of Columbia] then you must purchase a minimum of 14 Seer Rated product in order to conform to the new EPA Regulations. Please contact us at 888.474.9966 for further information.
| Model Number (s) | RPNL043JAZ |
| Brand | Ruud / Rheem |
| Type | Heat Pump |
| Ton | 3.5 Ton |
| SEER | 13 |
| Cooling Btu | 42,500 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 76 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 7/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 640852914065 |
| Heating Btu | 43,500 |
| Amp(s) | 45 |
| Voltage | 208/230V |
| Maximum CFM | 1,400 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 237 |
| Height (Inches) | 29 |
| Width (Inches) | 31 1/2 |
| Depth (Inches) | 44 3/8 |
| Category | Heat Pumps |
| HSPF | 9.00 |
| Compressor Warranty (Years) | 10 |
| UPC # | 640852914065 |
| Heating Btu | 43,500 |
| Amp(s) | 45 |
| Voltage | 208/230V |
| Maximum CFM | 1,400 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 237 |
| Height (Inches) | 29 |
| Width (Inches) | 31 1/2 |
| Depth (Inches) | 44 3/8 |
| Category | Heat Pumps |
| HSPF | 9.00 |
