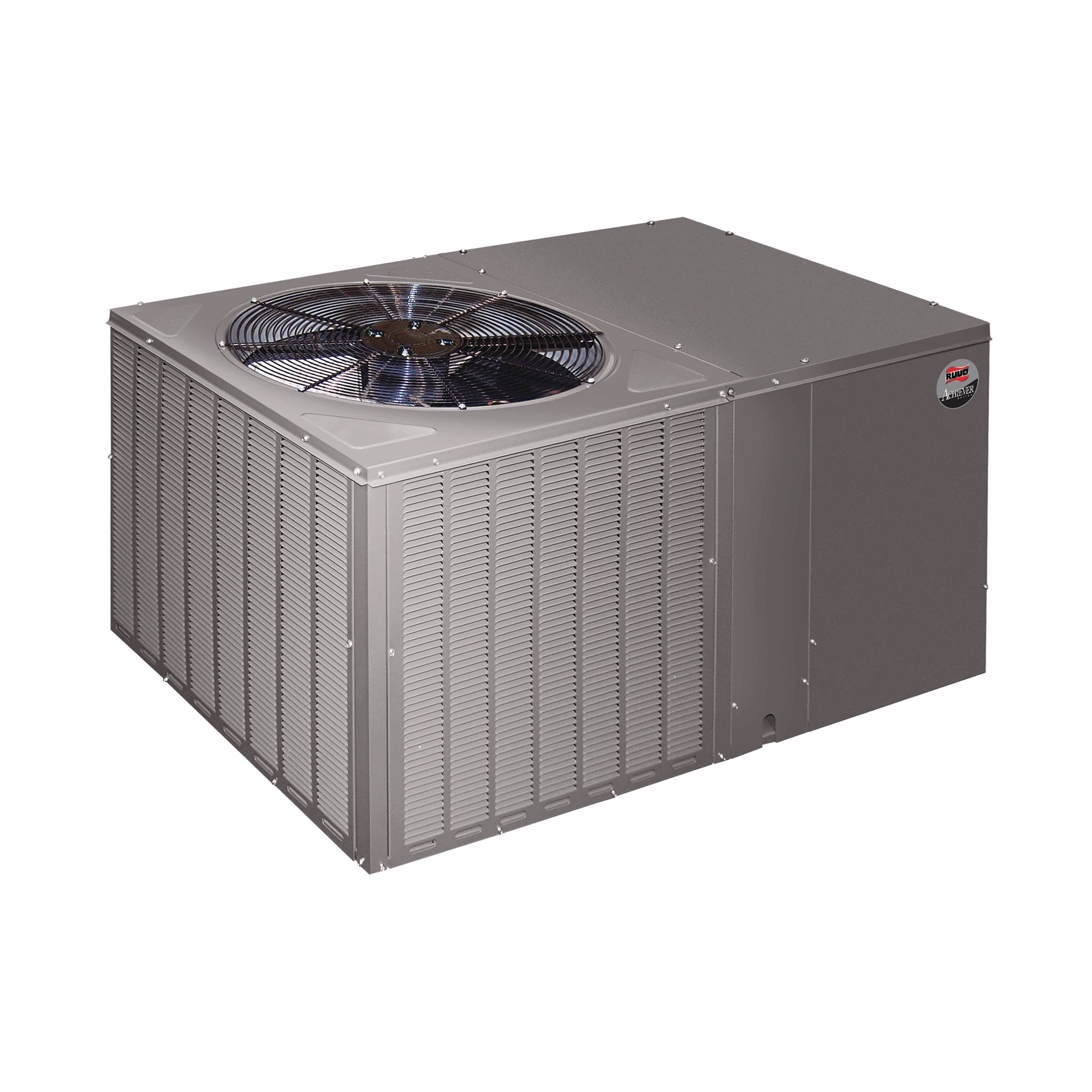

The Rheem RRPL Gas Package Air Conditioner features Scroll compressors for maximum efficiency and quiet operation. 5.0 Ton RRPL and all RRRL models feature UltraTech Scroll 2-Stage compressors with Comfort Alert diagnostics (see below), high/low-pressure switches, and hard start kits.

Standard Features:

• Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes.
• One-piece top with a deep flange to help keep water out of the unit.
• Supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork.
• Access panels have œweep holes inches and channels to further help manage water run-off.
• Side and down discharge options available on all models.
• Easily accessible blower section complete with slide-out blower. The RRRL comes standard with variable speed motor with adjustable airflow in heating and cooling. The variable speed motor also comes with a interface that allows for dehumidification when used in continuous humidistat. The variable speed system is capable of 1 inch external static.
• Refrigerant connections are conveniently located for easy service diagnostics.
• Condenser and evaporator coils feature enhanced fins for better heat transfer and rifled copper tubing for greater efficiency.
• Inside the easily accessible furnace compartment is the draft inducer motor. This motor is specially designed for quiet reliable operation. In addition to the draft inducer motor, the in-shot gas burners and manifold efficiently regulate the flow of gas for combustion. These new gas/electric units also feature direct-spark ignition and remote flame sensors for added reliability and efficiency.
• All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap.
• Easily accessible control box.
• Single point wiring simplifies installation.
• Our gas/electric package units feature a tubular heat exchanger design. Tubular heat exchangers are more efficient and durable than older-style clamshell heat exchangers. The heat exchanger is backed by a 10 year limited warranty. Models with a stainless steel heat exchanger installed in a residential application are backed by a limited lifetime warranty. The stainless steel heat exchanger is a standard feature on RRRL.
• Thermal expansion valve standard on all models for superior superheat control, reliability, and energy efficiency at all operating conditions.
• Filter drier standard on all models (not shown).
• Rugged base rails included for improved installation and handling
• Complete factory charged, wired and run tested.
• Molded compressor plugs.
