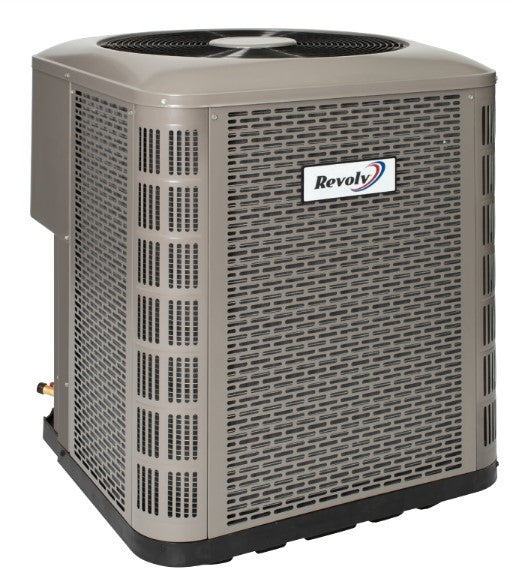

The Revolve RSH3QE Series Mobile Home Heat Pump offers exceptional performance. The unit, when combined with our engineered coils or air handlers, offers a full line of quality, split system cooling equipment.

Standard Features:

• QE Models Offer Quick Connect Fittings: Simplify the installation, no brazing, no evacuation required.Charged with refrigerant for 15 feet of lineset
• Micro-Channel Coils minimize refrigerant charge and cost; while mounted on a rugged, composite drain pan with damage-preventing molded steps and drainage holes, in two competitive footprints.
• Patented Hot Gas Bypass Defrost – Ensures that outdoor coil defrosts every time and only when necessary
• Designed for Manufacturing Housing – the outdoor thermostat required by HUD is factory installed
• Suction Accumulator and Crankcase Heater – Protection from liquid flood back and future compressor failures
• Hot Gas Muffler – Reduces compressor noise and vibration
• 2023-M1 DOE Compliance for new performance minimums and unique MH testing standards, exclusively designed and labelled for use in manufactured home applications.
• Composite Base Pan: Absorbs sound and is corrosion resistant. Composite is also stronger and lighter than steel
• Permanently Lubricated Motor: A heavy duty PSC motor for long lasting reliability and quiet operation. Requires no maintenance and is completely protected from rain and snow
• High Pressure Switch: Protects against abnormally high system pressures. Auto-reset feature prevents nuisance service visits.
• Low Pressure Switch – Loss of charge protection ensures long compressor life. Auto-reset feature prevents nuisance service visits
• Liquid Line Filter Drier: Included with unit, factory installed on QD and field installed on MD models
• Easy Compressor and Control Access: Designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit
• All-Aluminum coils: Aluminum coils in all models which provides high corrosion resistance
• Common Suction Service Port – This port allows the contractor to read the suction pressure in all modes of operation without removing any panels, saving time and increasing serviceability
• Five Minute Restart Time Delay – When the unit shuts down, a five minute delay keeps the unit from restarting, eliminating the highest cause for compressor failure

Cabinet Features:

• Robust Post and Jacket Design has independent louvered panels that are easily removed for service and maintenance, while protecting the coil from yard debris and extreme weather.
• Corner-Post Packaging creates a gap around the entire unit, distributes the load evenly, and minimizes contact with the carton; so the unit arrives safely to your customer.
• Removable Top Grille Assembly: Allows ease of service from the top without disconnecting fan motor leads.
• One Piece Top/Orifice: Designed for maximum airflow and quiet operation
• When properly anchored, meets the 2001 Florida Building Code unit integrity requirements  for hurricane-type winds
• Powder Coated Wire Guard and Mesh Hail Guard: Will never rust and protects the coil from being damaged by balls, lawnmowers, hail, etc
