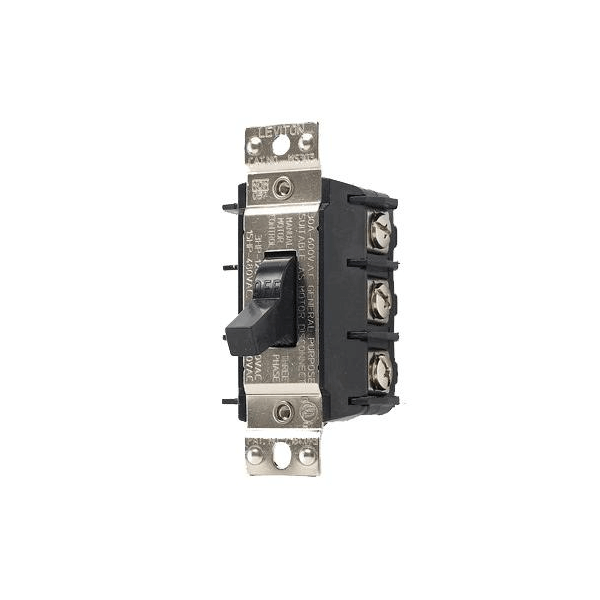

The TAZM 3 Pole Disconnect Switch is an ideal motor controller suitable as a disconnect. Toggle motor controllers/disconnects can be built into equipment and enclosures with either box or panel-mount installation.

Product Features:

• Turns power off between indoor and outdoor units.
• Ground: Non-grounding
• Amperage: 30 Amp
• Voltage: 600 Volt
• HP Rating: 3HP-120V 7-1/2HP-240V 15HP-480V 20HP-600V
• Termination: Side
• Actuator Material: Valox
• Body Material: Rynite
• Strap Material: Nickel-plated brass
• Color: Black
• Standards and Certifications: UL/CUL
• Warranty: 10 year limited
• Installation: 2 inch x 4 inch electrical wall box with switch cover plate
• 3-pole disconnect switch; 30A, 600V; turns off power between indoor and outdoor units
• Suitable for M-Series and P-Series Mini Split Systems
