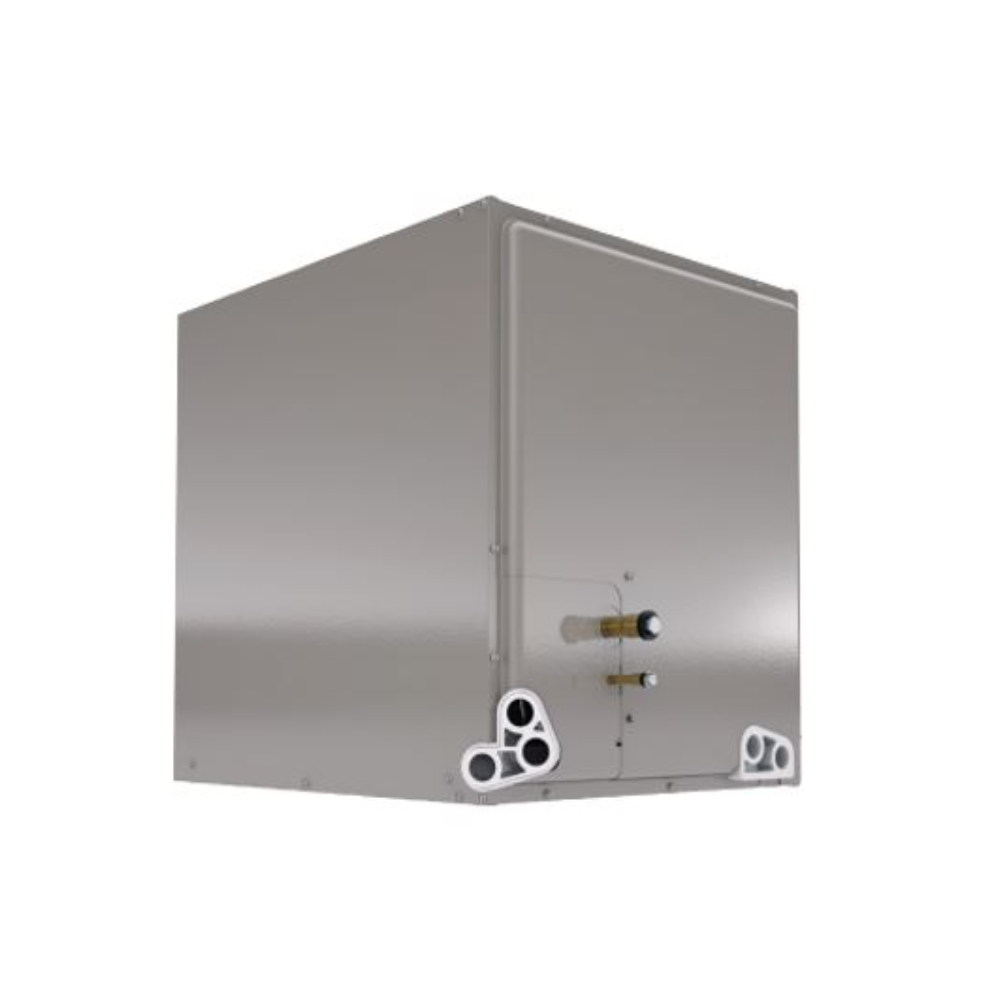

Rheem Select 3 Ton Multi-Position R-454B Cased Coil
Rheem Select 3 Ton Multi-Position R-454B Cased Coil
Model: TCFY3617STANMC
Couldn't load pickup availability
The Rheem Select TCFY Cased Coils are engineered for efficient performance and dependable indoor comfort. This 3 Ton model is ideal for medium-sized homes, delivering consistent airflow and optimized heat exchange. Designed for use with environmentally friendly R-454B refrigerant, it supports modern HVAC efficiency standards. Its multi-position capability ensures flexible installation in a variety of system setups.
Standard Features:
- Compatible with R-454B refrigerant for reduced environmental impact
- High-performance coil design for efficient heat transfer
- Factory-installed TXV for precise refrigerant flow
- Aluminum fin construction for durability and corrosion resistance
- Multi-position installation flexibility
- Leak-tested for long-term reliability
- AHRI Certified performance
Cabinet Features:
- Heavy-duty steel cabinet construction
- 17.5-inch width for standard installations
- Foil-faced insulation for improved thermal performance
- Removable panels for easy service access
| Model Number (s) | TCFY3617STANMC |
| Brand | Rheem Select |
| Ton | 3.0 Ton |
| Refrigerant Type | R-454B |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 5 |
| UPC # | 633190305732 |
| Total Shipping Weight (lbs.) | 54 |
| Height (Inches) | 20 |
| Width (Inches) | 17.5 |
| Depth (Inches) | 17 |
| Category | Evaporator Coils |
| UPC # | 633190305732 |
| Total Shipping Weight (lbs.) | 54 |
| Height (Inches) | 20 |
| Width (Inches) | 17.5 |
| Depth (Inches) | 17 |
| Category | Evaporator Coils |
