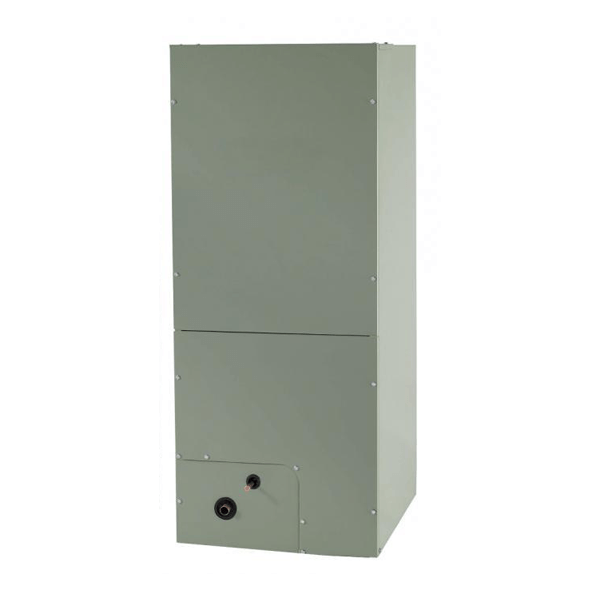

The A.S. TEM4 Air Handlers are built for specific needs and systems to provide you the most reliable comfort and efficiency, reducing your energy costs. Rugged and durable, the Silver Series meets or exceeds all standard efficiency requirements as part of your matched system. Its the quality performance youve come to know from A.S.. The TEM4 air handler is designed for installation in a closet, utility room, alcove, basement, crawlspace or attic. There versatile units are applicable to air conditioning and heat pump applications. Several Models are available to meet the specific requirements of the outdoor equipment. Field installed electric resistance heaters are available.

Standard Features:

• ECM Motor (3.5 - 5 Ton Models)
• Side Return Option
• Refrigerant Connection
• Slide in Electric Heaters
• Labeled Panels and connections
• Low Voltage Color Coded Wires
• Enhanced Coil Fin Patented
• Blow Through Design
• Maximum Width of 23.5
• 2% or less air leakage
• Fused 24V Power

Cabinet Features:

• Unique Cabinet Design
• Multi-Position Upflow/ Horizontal Left / Horizontal Right
• Integrated Horizontal Drain pans
• Single Color
• Painted metal cabinet with captured foil face insulation
