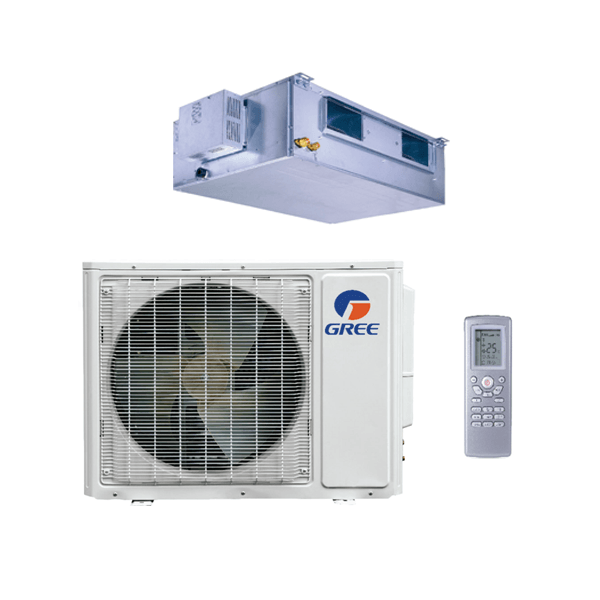

30,000 Btu 16 Seer Gree U-Match Ducted Single Zone Mini Split Heat Pump System
30,000 Btu 16 Seer Gree U-Match Ducted Single Zone Mini Split Heat Pump System
Model: UMAT30HP230V1AO - UMAT30HP230V1AD
The Gree U Match Ducted Mini Split Heat Pump System Compact and powerful, the Gree Concealed Duct indoor units offer the ultimate in flexibility and discretion. These slim indoor units are designed to be concealed above suspended ceilings or within open closet spaces to deliver conditioned air via ducting and suitable ceiling or wall grilles. This arrangement provides immense flexibility, in terms of both the distribution of conditioned air and the type of grille or diffuser that best compliments the room’s styling. Each unit comes with an easy to operate XK-60 wall mounted tether controller.
Outdoor Standard Features:
- Multi-Speed Fans
- R410A Refrigerant
- Intelligent Defrost
- Cleanable Air Filters
- Power Failure Recovery
- G10 Inverter Technology
- Multi-point Diagnostics
- Gold Fin Coil Protection
- Heavy Gauge Steel Cabinet
- Low Ambient Cooling down to 0°F
- Sound Levels down to 56 dB on outdoor units
- Remote Controller or Wired Controller available with select models
Ducted Standard Features:
- Sentry Float Switch
- XK-60 Tether Wired Controller
- Internal Condensate Drain Pump
- Medium Static Pressure Capability
- Slim Line Construction 8-inches high
- Sentry Condensate Overflow Protection
- Environmentally Safe R-410A Refrigerant
- Flexible Return Air From Bottom or Rear
| Model Number (s) | UMAT30HP230V1AO - UMAT30HP230V1AD |
| Brand | Gree |
| Type | Heat Pump |
| SEER | 16 |
| Cooling Btu | 28,200 |
| Compressor Stage | Inverter |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 57 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 5/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Outdoor Unit Height (Inches) | 31 1/9 |
| Outdoor Unit Width (Inches) | 38 3/5 |
| Outdoor Unit Depth (Inches) | 16 4/5 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 7 |
| UPC # | 646341745028 |
| Heating Btu | 31,200 |
| Amp(s) | 24 |
| Voltage | 208/230V |
| Zones | 1 - Zone |
| Min. Operating Temp. (Degrees Farenheit) | 0 |
| Maximum CFM | 820 |
| Indoor Unit Depth (Inches) | 45 3/5 |
| Indoor Unit Width (Inches) | 20 2/5 |
| Indoor Unit Height (Inches) | 9 1/3 |
| HSPF | 9.0 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 7 |
| UPC # | 646341745028 |
| Heating Btu | 31,200 |
| Amp(s) | 24 |
| Voltage | 208/230V |
| Zones | 1 - Zone |
| Min. Operating Temp. (Degrees Farenheit) | 0 |
| Maximum CFM | 820 |
| Indoor Unit Depth (Inches) | 45 3/5 |
| Indoor Unit Width (Inches) | 20 2/5 |
| Indoor Unit Height (Inches) | 9 1/3 |
| HSPF | 9.0 |
