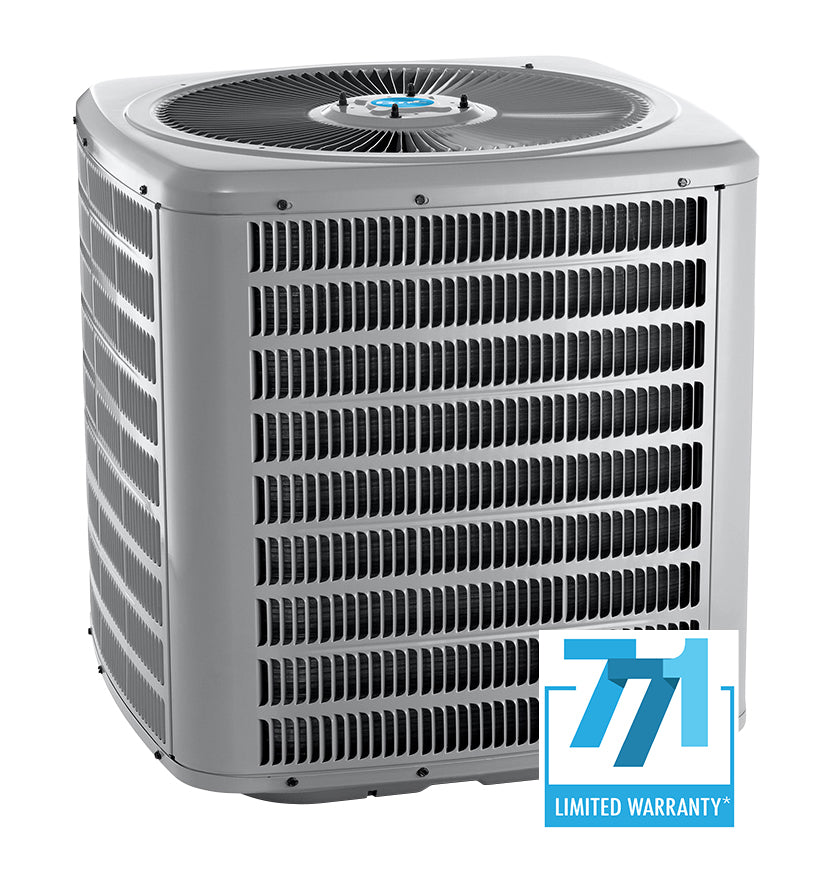

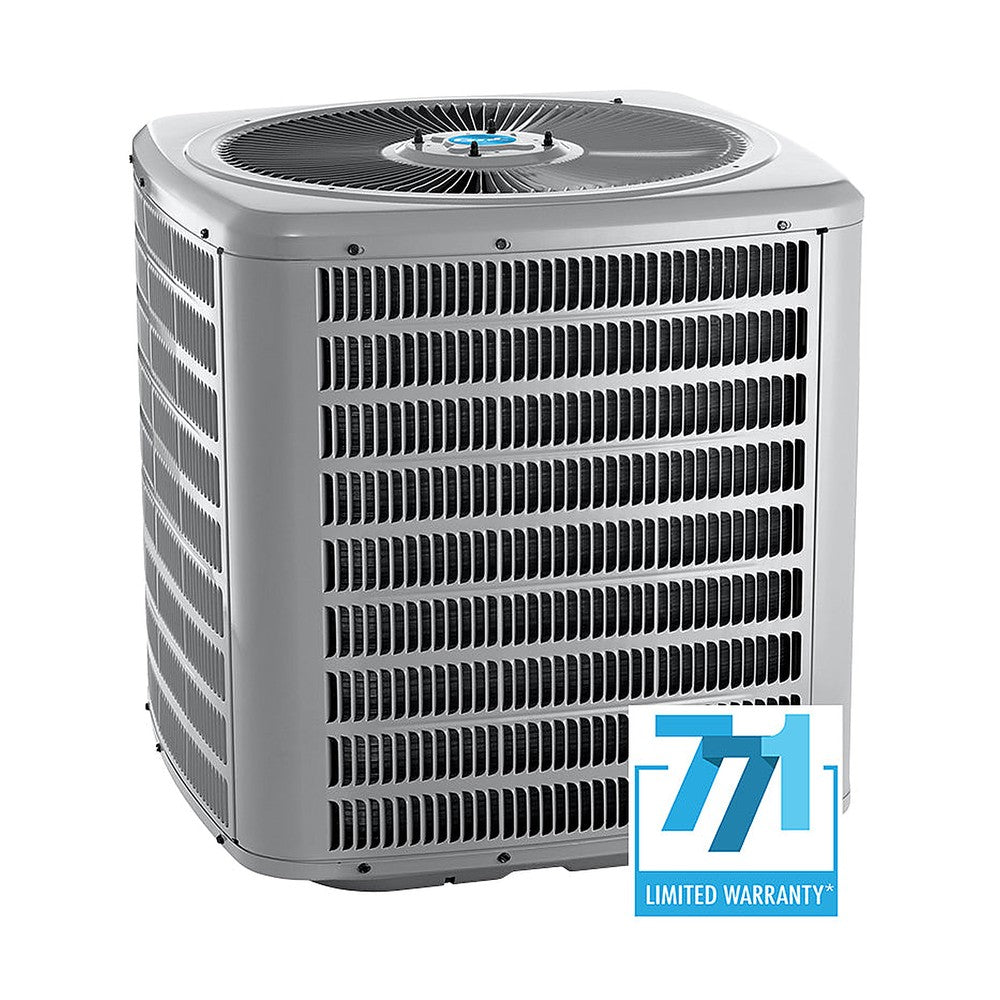

Goodman 2.5 Ton 14 Seer / GMC Air Conditioner Condenser
Goodman 2.5 Ton 14 Seer / GMC Air Conditioner Condenser
Model: VSX140311
The Goodman VSX14 Air Conditioner uses the chlorine-free refrigerant R-410A and features operating sound levels that are among the lowest in the heating and cooling industry. With its 14 SEER rating, the VSX14 will help reduce energy consumption throughout the life of the system.
Standard Features:
- Energy-efficient compressor
- Factory-installed filter drier
- Copper tube/aluminum fin coil
- Service valves with sweat connections and easy-access gauge ports
- Contactor with lug connection
- Ground lug connection
- AHRI Certified
- ETL Listed
Cabinet Features:
- Goodman louvered sound control top design
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Single-panel access to controls with space provided for field installed accessories
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds Anchor bracket kits available
| Model Number (s) | VSX140301 |
| Brand | Goodman |
| Type | Air Conditioning |
| Ton | 2.5 Ton |
| SEER | 14 |
| Cooling Btu | 30,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 72 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 10 |
| UPC # | 703158692904 |
| Amp(s) | 25 |
| Maximum CFM | 1,085 |
| Total Shipping Weight (lbs.) | 180 |
| Height (Inches) | 32 1/2 |
| Width (Inches) | 29 |
| Depth (Inches) | 29 |
| Category | Condensers |
