IMPORTANT NOTE: When purchasing COOLING ONLY HVAC EQUIPMENT, Florida residents must refer to the new Florida Building Code, 8th Edition Section R501.7.2 which became effective on December 31st, 2023. This section can be viewed online here or you may review the letter provided by the Technical Director of the DBPR Florida Building Codes and Standards in the documents section below.

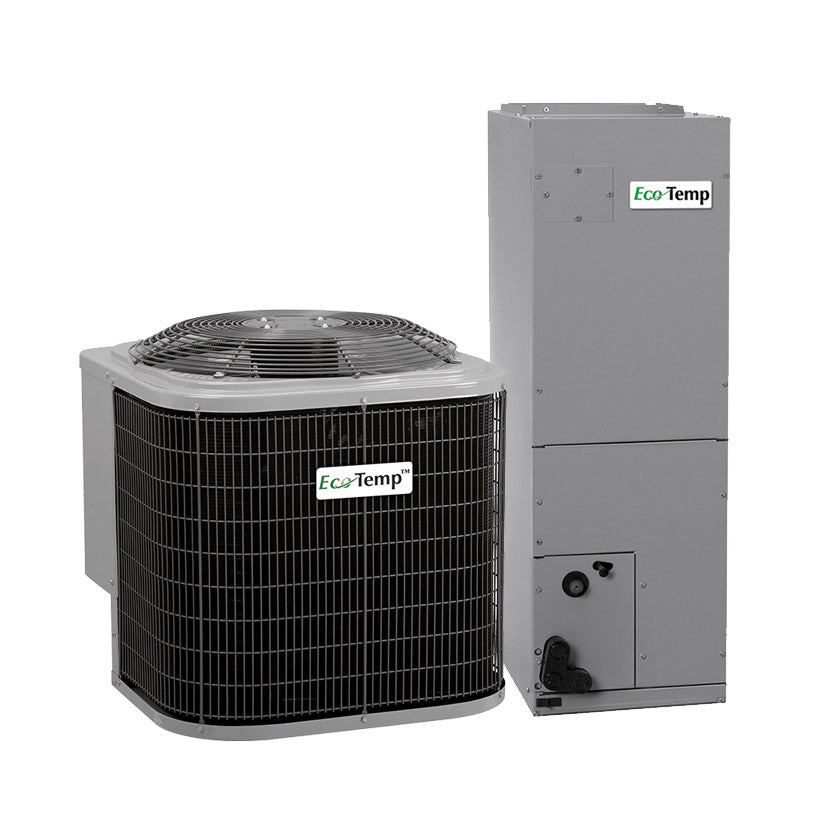

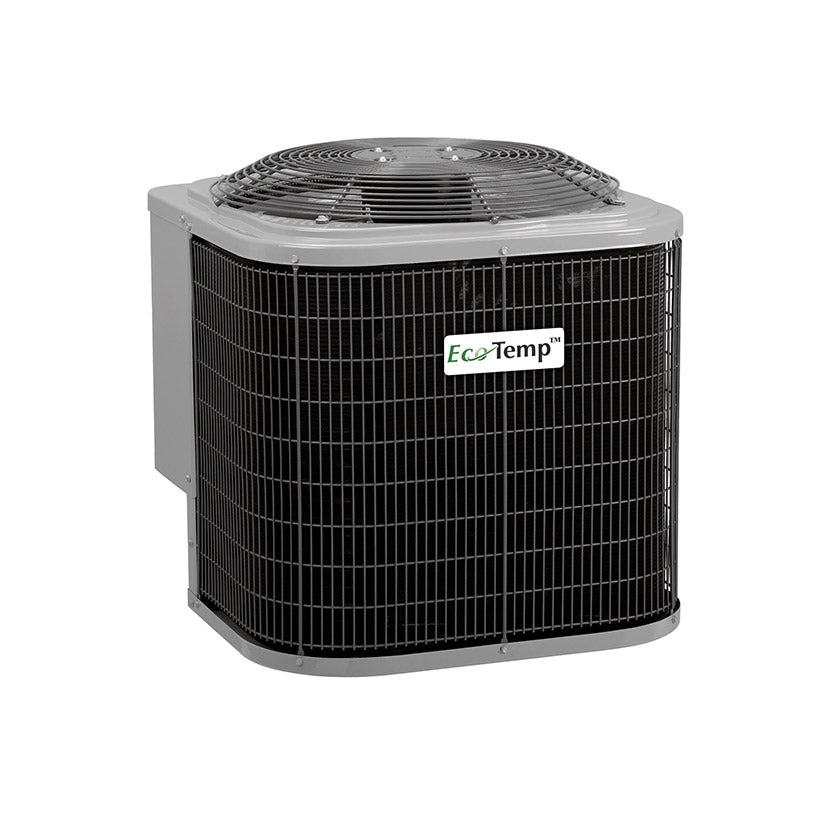

The EcoTemp Air Conditioning Condenser is a budget-friendly central air conditioner with a single-stage compressor. Enjoy cooling comfort and reliability in this affordable model. This unit has been designed utilizing non-ozone depleting, low global warming potential R-454B refrigerant. Air conditioners with R-454B refrigerant provide a collection of features unmatched by any other family of equipment.

Standard Features:

• 13.8 - 17.0 SEER2 / 11.2 – 14.5 EER2
• System supports programmable or standard thermostat controls
• Non-ozone depleting, low global warming potential R-454B refrigerant
• Scroll compressor
• Internal pressure relief valve
• Internal thermal overload
• Filter drier
• Solid, durable sheet metal construction
• Dense wire coil guard
• Long–line – up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.4 m) evaporator above condenser (See Long Line Guide for more information.)
• Low ambient cooling (down to 0°F / -18°C ) with approved low ambient accessory kits.
• 5-year parts limited warranty (including compressor and coil)
• 10-year parts limited warranty (including compressor and coil) with timely registration*. Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration. * Applies to original purchaser/homeowner and not available to subsequent owners except in jurisdictions where applicable laws dictate otherwise.

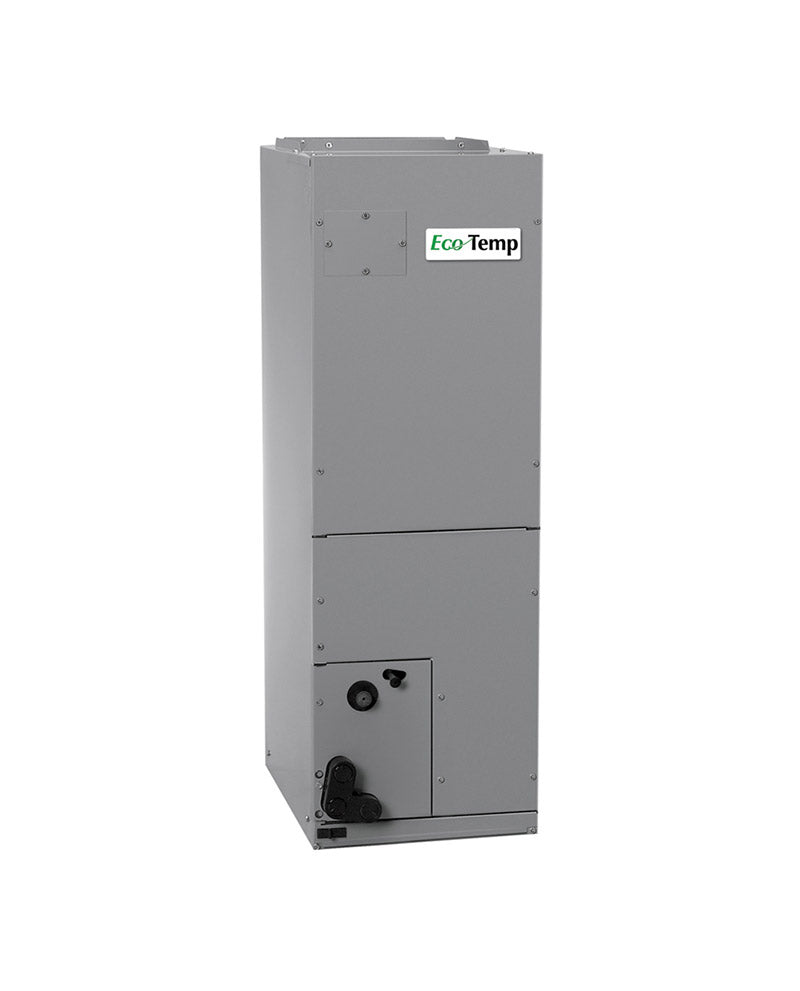

The EcoTemp Air Handler delivers more comfort options while delivering energy-saving airflow. It’s designed for standard and tight spaces with multi-position installation to fit your home’s needs. This multi-speed air handler combines performance and compact size to deliver energy efficiency consistent comfort levels and a design to fit in tighter spaces.

Standard Features:

• Refrigerant leak detection dissipation system for added safety
• Multi-tap ECM (electronic commutating motor) motors – all sizes.
• Integrated motor controls, with 90-sec off TDR function, have replaced integrated circuit board.
• Five available speed tags to meet a wide range of applications.
• Large, grooved tube, louvered fin coils.
• Efficient, quiet, time-tested blower housings and diffusers.
• Sturdy, drainable condensate pans.
• Construction innovations designed to prevent cabinet sweating.
• Tested for condensate disposal in much tougher conditions than Air Conditioning and Refrigeration Institute requirements.
• Super-thick R-4.2 insulation with vapor barrier.
• Pre-painted galvanized steel cabinet (dark grey).
• Design meets stringent regulations for cabinet air leakage of less than 2% when tested at 1.0 inches W.C., and less than 1.4% at 0.5 inches W.C. when tested in accordance with ASHRAE 193 standard.
• Installation-flexible, multipoise units. 2-piece modular design available for 42 thru 60 sizes. Facilitates attic and crawlspace installations.
• Horizontal hanging provisions on cabinet.
• Newly improved filter rack area filter door insulation added for improved air seal. No tools required to access filter.
• 3 through 30 kW accessory heaters - field installed.
• Easy plug-in provisions for heater installation.
• Entry options for high and low voltage wiring hook-up.
• Leak-preventing sweat connections.
• Factory installed thermostatic expansion valve, TXV, on all coils.
• Designed for manufactured housing applications.
• 5-year parts limited warranty (including compressor and coil)
• 10-year parts limited warranty (including compressor and coil) with timely registration*. Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration. * Applies to original purchaser/homeowner and not available to subsequent owners except in jurisdictions where applicable laws dictate otherwise.
