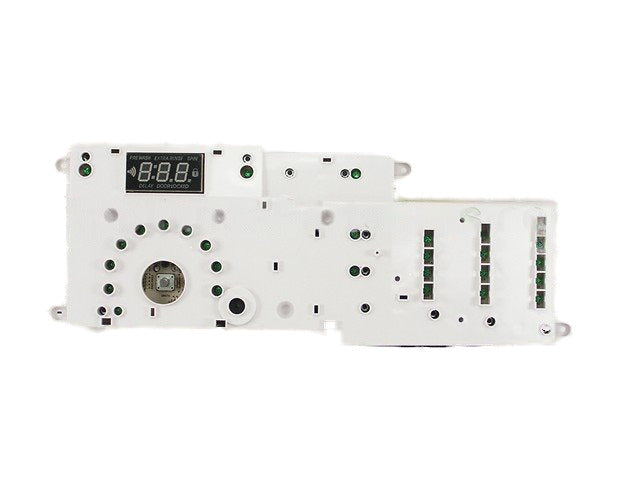

This part is intended to replace the control board assembly on GE and other various brands of washers. The control board and washer assembly consist of the circuit board that controls the main functions and the dials that toggle those functions. The washer's control board acts as the central mainframe to the appliance. All main functions originate from the control board and allow the user to toggle between all the main settings. If a washer begins to lose some or all of the main functions, it's typically a sign of a control board issue. When the control board fails completely, the washer will cease all operations, and the board will need to be replaced. Beginning at the central control area, remove the faceplate or label area of the controls. It may be necessary to remove the trim before this is possible. Using a screwdriver, remove any anchor screws from the perimeter area of the control assembly. The circuit board will be directly on the rear face of the control assembly and is connected to a wiring harness. Remove the wiring harness and connect the new component. Place the assembly back into its intended housing but do not anchor it with screws until it's been tested to work properly.This part is compatible with GE and Kenmore appliances. It is a genuine OEM part sourced directly from General Electric.



Cross Reference Information:

Part Number WH12X10355 (AP3995160) replaces 1264503, AH1482387, EA1482387, PS1482387, WH12X10303.
