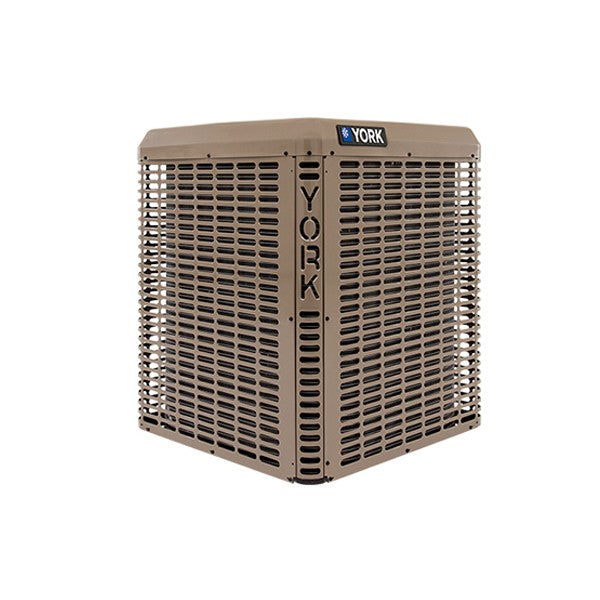

The York YFE Air Conditioners are a new offering in our successful LX Series split system air conditioner lineup. These units are optimized for the new 14 SEER Regional Minimum Efficiency in the Southeast US, and feature a tube-in-fin condenser coil, scroll compressor,and copper filter-drier. These outdoor units have been specifically designed to be matched with Johnson Controls UnitaryProducts indoor coils, furnaces, and air handlers to provide a complete system solution.

Standard Features:

• Quality Coils - Enhanced aluminum fins are mechanically bonded to copper tubing.
• Scroll Compressor - Featuring the newest generation of high-efficiency scroll compressors.
• Copper filter-drier - The factory installed filter drier features copper construction for reliable long term protection.
• Easier Installation - Independent panels provide quick access for unit setup. Installation time is reduced by easy power and control wiring access. Select indoor matches with factory-mounted TXVs are available for quicker system installation. The factory installed filter-drier and factory charge for a 15-Ft lineset means less time spent brazing and charging the system. The small base dimension and reduced unit clearances make for easier retrofits.
• Accessible Information - QR code on unit provides quick access to technical documents and warranty information.
• Durable Finish - The coated steel wire fan guard, coated external fasteners, and pre-treated G90-equivalent galvanized steel chassis components resist corrosion and rust creep. Champagne colored powder coat paint further protects external panels.
• Rugged Coil Protection - Coils are protected from mechanical damage by a proven stamped steel coil guard design.
• Protected Compressor - Compressors are protected internally by a high-pressure relief valve and a temperature sensor,and externally by the system high-pressure switch. The liquid line filter-drier is factory installed to protect the compressor against moisture and debris.
• Reliable Operation - Ball bearing fan motors provide superior performance in extreme temperatures.
• Environmentally Friendly - CFC-free R-410A refrigerant deliver environmentally friendly performance with zero ozone depletion.
• Top Discharge - Warm air is blown up, away from the structure and any landscaping and allows compact location on multi-unit applications.
• Low Operating Sound Levels - Developed using CFD andFEA tools, the sturdy cabinet and top design provides sound performance of 76 dBA or lower. Compatible accessories for further sound reduction are also available.
• Better Service Access - Diagonal base valves with open access for low-loss fittings, single panel access to the electrical controls, swing out control box for full corner access, and removable fan guard allow easy access for unit maintenance.
• Agency Listed - Safety certified by CSA to UL 1995/CSA22.2. Performance certified to ANSI/AHRI Standard 210/240in accordance with the Unitary Small Equipment certification program.
